Summary of Contents for Sine Audio SauYin DS6801

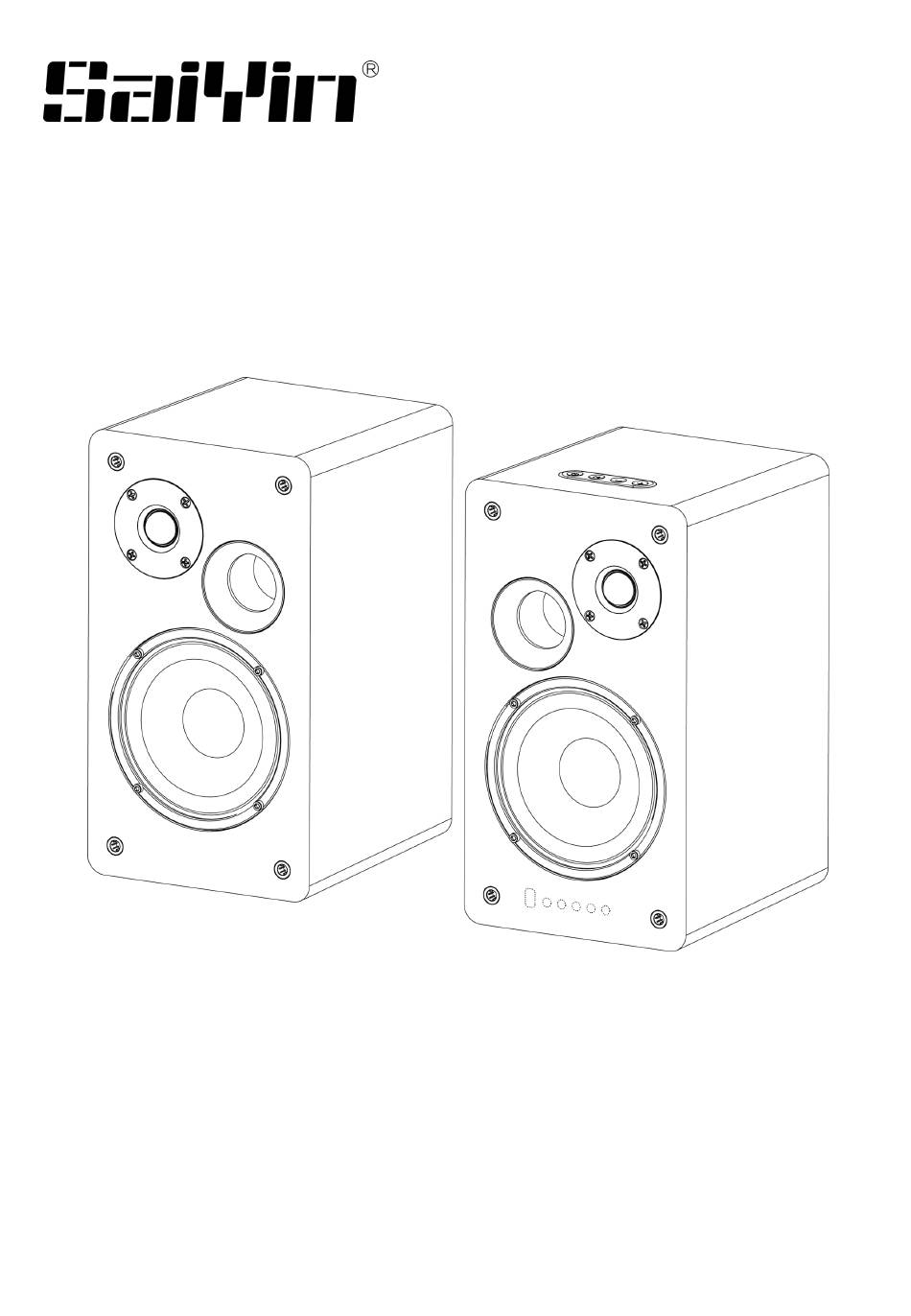

- Page 1 E N - 1 by Sine Audio Powered Bookshelf Speakers 2.0 Channel Stereo User Manual E-mail:support@sineaudio.com.cn...
-
Page 2: Important Notes
E N - 2 > Important notes <DS6803> Please turn down the MIC VOL to the minimum, insert the microphone, and then slowly turn the microphone to a suitable volume. <DS6803> Treble / bass control knob for music only, and the treble / bass for music cannot be controlled with the remote control. -
Page 3: Fcc Information
E N - 3 The following are excluded from the Sine Audio warranty coverage: Product over warranty. Damage resulted from misuse and abusive action. Damage resulted from chemical, fire, radioactive substance, and poison, liquid. Damage resulted from natural disaster. Remove all packaging and check for the presence of all parts and for transport damage. -
Page 4: Package Contents
E N - 4 > Package Contents 1 X Bookshelf speakers - pair Accessories: 1 X Power adapter 1 X Remote control 1 X Optical cable 1 X User manual 1 X 3.5mm RCA audio cable 1 X Speaker wire cable Note: Accessories are subject to change without notice. - Page 5 E N - 5 > System Overview D S 6 8 0 1 D S 6 8 0 3 D S 6 8 0 2 ( W i t h o u t K e y P a n e l )
- Page 6 E N - 6 D S 6 8 0 1 Connect the left and right speakers via supplied speaker wire cable. D S 6 8 0 3 Connect the left and right speakers via supplied speaker wire cable.
- Page 7 E N - 7 >> Buttun Panel Power Mode Vol - Vol + (Play Pause / Mute) (Source) Power on / off : Press and hold 1S Play Pause / Mute : Short click Press the Mode (Source) button to toggle between the AUX, BT, COAX, OPT sources, The AUX, BT, COAX, OPT source indicator will light up red accordingly.
- Page 8 E N - 8 >> Source indicators Remote sensor BT Standby COAX OPT >> Rear Panel Subwoofer output The subwoofer output is only used to connect the 3.5mm AUX input powered subwoofer. RCA(L/R) input Coaxial input Optical input Connect the left and right speakers via supplied speaker wire cable.
-
Page 9: Remote Control
E N - 9 >> Remote control When there is an obstacle Approx. 16.5 feet (5 meters) between the remote sensor of the Operation Range bookshelf speakers and the remote control, the remote control may not operate. 30 degree 30 degree Press and hold the BT button for about 2 seconds to disconnect the 20. -
Page 10: Audio Cable Connection
E N - 1 0 > Setting up the system >> Digital audio (SPDIF) connection Use the supplied optical cable or Coaxial cable ( not supplied ) to connect the bookshelf speakers to a TV, DVD, Blu-Ray Player or other suitable devices. Connect one end to the optical or coaxial (SPDIF) out socket of the TV, DVD, Blu-Ray Player or other suitable devices. -
Page 11: Using The System
E N - 1 1 Connect the other end to the 3.5mm AUX input sockets of the bookshelf speakers. Audio OUT (Line OUT) Headphone If your TV or other source device only has a 3.5mm headphone socket, use the 3.5mm RCA audio cable to connect the bookshelf speakers to your TV or other source devices. -
Page 12: Tips For Usage
E N - 1 2 Caution! The bookshelf speakers can only work with the remote control package included, not compatible with universal remote control. Always insert the batteries according to the correct polarity markings. Use only high quality batteries, low quality batteries might leak and cause damage. Remove the batteries from the remote control if you are not using it for an extended period. - Page 13 E N - 1 3 >> Selecting a digital controlled audio processing sound mode The digital controlled audio processing includes three sound mode: movie, music and news.（Note:There is no sound mode indication on the bookshelf speakers) To get a better sound effect, press the movie, music or news button on the remote control to select a suitable sound mode.
-
Page 14: Disconnecting The Bluetooth Device
2. Activate the Bluetooth function of the external device and search for Bluetooth devices. 3. Select the bookshelf speakers (Sine Audio) from the Bluetooth device list. 4. Follow the instructions shown on your device’s screen. 5. When the Bluetooth connection is established, files from your connected Bluetooth device will be played through the bookshelf speakers. -
Page 15: Troubleshooting
E N - 1 5 > Troubleshooting Problem Solution No power Check the power adapter is properly connected to an electrical outlet. Check the DC plug is properly connected to the DC IN socket. Unplug the power adapter for at least one minute and reconnect. No Sound Press the Power button on the remote control to turn on the bookshelf speakers. - Page 16 Ensure you are using the correct device. If the device is still not connected, try the following: Remove the bookshelf speakers (Sine Audio) from the list of “paired devices” on your phone/tablet. Turn the bookshelf speakers off and then on again.
