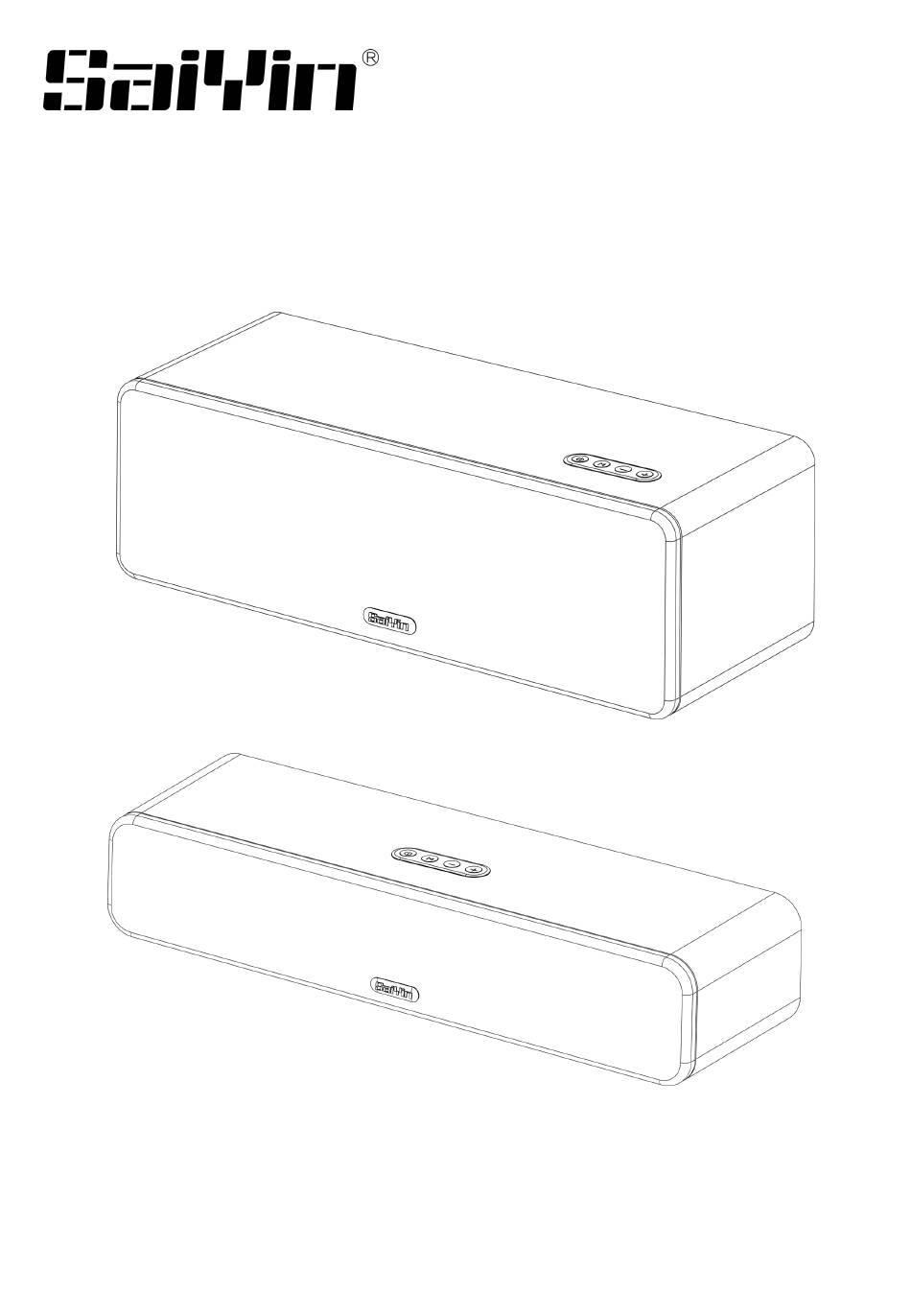

- Page 1 E N - 1 by Sine Audio TV Sound Bar System 2.0 Channel Stereo DS6741S DS6741M DS6741N User Manual E-mail:support@sineaudio.com.cn...
-
Page 2: Important Notes
E N - 2 > Important Notes To avoid hearing distorted sound, turn off your TV speakers (except for the headphone socket connection), check the sound is only coming from the sound bar. For HDMI ARC / optical (SPDIF) connection, please change your TV audio output to HDMI ARC / optical, and change the audio format setting to PCM, and make sure the protective caps at the ends of the optical cable are removed before plugging it in. -
Page 3: Warranty Information
The following are excluded from the Sine Audio warranty coverage: Product over warranty. -
Page 4: Package Contents
E N - 4 > Package Contents 1 X Wooden sound bar Accessories: 1 X Power adapter 1 X Remote control 1 X Optical cable 1 X 3.5mm audio cable 1 X User manual 1 X Wall Mount Kits (DS6741M/DS6741N only) >... - Page 5 E N - 5 > System Overview Press and hold the M button for 2 seconds to disconnect the current Bluetooth device. >> Front View 1 2 3 4 10. Connector panel DS6741S DS6741M .Remote Sensor DS6741N 10. Connector panel Remote Sensor Buttons 1.
-
Page 6: Rear Panel
E N - 6 >> Rear Panel DS6741S DS6741M DS6741N Make sure that the cables connected to the source HDMI (ARC) device and the speakers are >> Connector panel for TV connection properly plugged in and the only, not for PC , 12. -
Page 7: Remote Control
E N - 7 >> Remote control Remote sensor >> Aim the sensor when using Approx. 16.5 feet (5 meters) remote. Operation Range When there is an obstacle between the remote sensor of the sound bar and the remote control, 30 degree 30 degree the remote control may not operate. -
Page 8: Wall Mounting
E N - 8 > Setting Up the System >> Unpacking Remove all packaging，check for the presence of all parts and for transport damage. In case of damage or incomplete delivery, please contact your dealer. Please keep the packaging. The system can be stored in it, if not used for a longer period of time. -
Page 9: Setting Up The System
E N - 9 > Setting Up the System Make sure the power adapter is disconnected from the electrical outlet before making any mounting and connection. >> Digital audio (SPDIF) / Sub out, Line out connection Use the supplied optical cable /HDMI Cable (not supplied) to connect the sound bar to a TV, DVD, Blu-Ray Player or other suitable devices. -
Page 10: Audio Cable Connection
E N - 1 0 > Setting Up the System During operation, if the cables require to be reconnected, the power adapter must be disconnected first, otherwise damage to the system may result. >> Audio cable connection Connect the soundbar to a TV, DVD, Blu-ray player or other suitable device using an RCA audio cable (not supplied). -
Page 11: Tips For Usage
E N - 1 1 > Using the System >> Preparation The Sound bar system serves as an audio output device and features wireless and wired connections. You can place the sound bar on a horizontal surface. When placing the sound bar on an entertainment center, bookshelf, or any type of enclosed space, be sure to allow at least 2 inches (5cm) of space around the sound bar for ventilation. - Page 12 E N - 1 2 > Using the System >> Get power and started Make sure all the source connections are made properly before you connect the power adapter. Plug the power adapter to the DC IN socket, then to a suitable electrical outlet. The power indicator lights up red.
-
Page 13: Playback Functions
E N - 1 3 > Using the System >> Basic functions >>> Selecting a source You can have several source devices connected permanently to the sound bar. Available sources are: OPT / ARC / BT / AUX Source Function Optical , connection with an optical fiber cable. -
Page 14: Disconnecting The Bluetooth Device
2. Activate the Bluetooth function of the external device and search for Bluetooth devices. 3. Select the sound bar (Sine Audio) from the Bluetooth device list. 4. Follow the instructions shown on your device’s screen. 5. When the Bluetooth connection is established, files from your connected Bluetooth device will be played through the sound bar. -
Page 15: Troubleshooting
E N - 1 5 > Troubleshooting Problem Solution No power Check the power adapter is properly connected to an electrical outlet. Check the DC plug is properly connected to the DC IN socket. Unplug the power adapter for at least one minute and reconnect. No Sound Press the Power button on the sound bar or remote control to turn on the sound bar. - Page 16 Ensure you are using the correct device. If the device is still not connected, try the following: Remove the sound bar (Sine Audio) from the list of “paired devices” on your phone/tablet. Turn the sound bar off and then on again.
