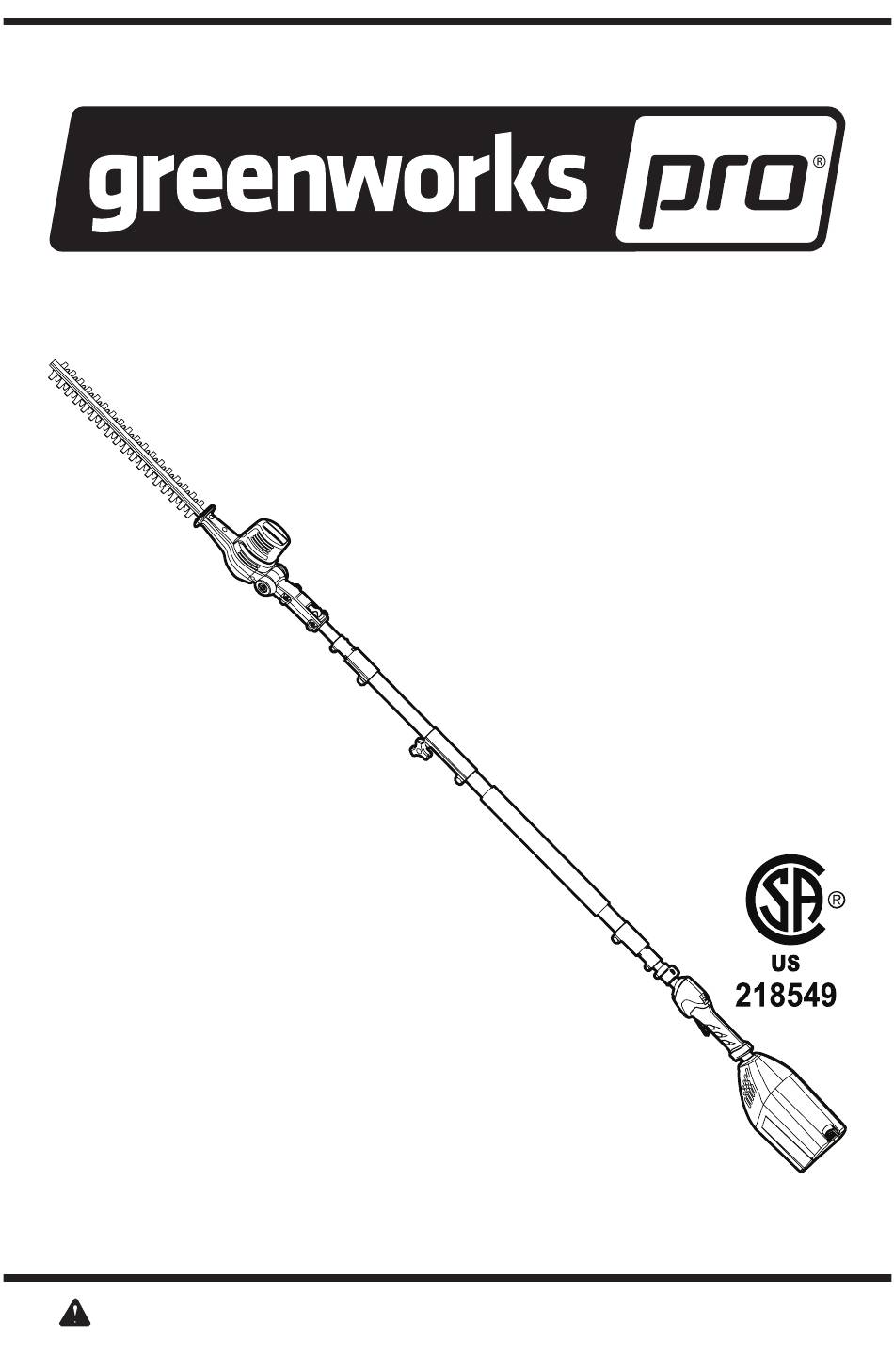

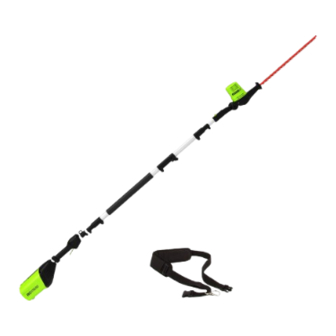

- Page 1 80V CORDLESS POLE HEDGE TRIMMER PH80B00 Owner’s Manual TOLL-FREE HELPLINE: 1-855-345-3934 www.greenworkstools.com/80v-pro Read all safety rules and instructions carefully before operating this tool.
-
Page 2: Table Of Contents
CONTENTS Contents ..........................2 Specifications ........................2 Important Safety Instructions ....................3 Symbols ..........................8 Know Your Pole Hedge Trimmer ..................1 0 Assembly ........................... 1 2 Operation ........................... 1 6 Maintenance ........................1 9 Environmentally Safe Battery Disposal ................2 0 Troubleshooting ......................... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS W A R N I N G Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury. Save all warnings and instructions for future reference. The term “power tool”... - Page 4 IMPORTANT SAFETY INSTRUCTIONS F. Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry, or long hair can be caught in moving parts. G. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.
- Page 5 IMPORTANT SAFETY INSTRUCTIONS 6. SERVICE A. Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. POLE HEDGE TRIMMER SAFETY WARNINGS • Keep all parts of the body away from the cutter blade. Do not remove cut material or hold material to be cut when blades are moving.
- Page 6 IMPORTANT SAFETY INSTRUCTIONS • Always use two hands when operating the extended-reach hedge trimmer. Hold the extended-reach hedge trimmer with both hands to avoid loss of control. • Always use head protection when operating the extended-reach hedge trimmer overhead. Falling debris can result in serious personal injury. FOR ALL APPLIANCES •...
- Page 7 IMPORTANT SAFETY INSTRUCTIONS W A R N I N G Only use with handle and guard properly assembled to hedge trimmer. The use of the hedge trimmer without the proper guard or handle provided may result in serious personal injury. W A R N I N G ( P R O P O S I T I O N 6 5 )
-
Page 8: Symbols
SYMBOLS Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer. SYMBOL NAME DESIGNATION/EXPLANATION Volts Voltage Amperes Current Hertz Frequency (cycles per second) - Page 9 SYMBOLS The following signal words and meanings are intended to explain the levels of risk associated with this product. SYMBOL SIGNAL MEANING Indicates an imminently hazardous situation, which, if not DANGER avoided, will result in death or serious injury. Indicates a potentially hazardous situation, which, if not WARNING avoided, could result in death or serious injury.
-
Page 10: Know Your Pole Hedge Trimmer
KNOW YOUR POLE HEDGE TRIMMER Blade Seven-Position Pivoting Head Shoulder Strap Pivot Button Blade Cover Coupler Foam Grip Knob Battery Compartment Safety Lock Carrying Button Ring Trigger Battery Release Button FIG.1... - Page 11 KNOW YOUR POLE HEDGE TRIMMER KNOW YOUR POLE HEDGE TRIMMER (See Figure 1.) The safe use of this product requires an understanding of the information on the product and in this operator’s manual as well as a knowledge of the project you are attempting. Before use of this product, familiarize yourself with all operating features and safety rules.
-
Page 12: Assembly
Hedge Trimmer Head Handle Pole Blade Cover Shoulder Strap 80V CORDLESS POLE HEDGE TRIMMER PH80B00 Operator’s Manual Owner’s Manual TOLL-FREE HELPLINE: 1-855-345-3934 www.greenworkstools.com/80v-pro Read all safety rules and instructions carefully before operating this tool. W A R N I N G If any parts are damaged or missing, do not operate this product until the parts are replaced. - Page 13 ASSEMBLY W A R N I N G Do not insert the battery until assembly is complete. Failure to comply could result in accidental starting and possible serious personal injury. CONNECTING THE POLES (FIG.2) 1. Set the unit on a flat, level surface. 2.
- Page 14 ASSEMBLY ATTACHING MACHINE TO SHOULDER STRAP (FIG.3) • Attach the carabiner (1) to the carrying ring (2) on the drive tube. FIG.3 SHOULDER STRAP (FIG.4) 1. Put on the shoulder strap (1). 2. Adjust the length of the strap so that the carabiner (2) is about a hand’s width below your right hip.
- Page 15 ASSEMBLY DETACHING MACHINE FROM SHOULDER STRAP (FIG.5) • Press down the bar on the carabiner (1) and pull the carrying ring (2) out of the carabiner. FIG.5 ADJUSTING THE TRIMMER HEAD ANGLE (FIG.6) The trimmer head pivots 135° and can be locked into 7 positions within that range. •...
-
Page 16: Operation
OPERATION W A R N I N G Do not allow familiarity with this product to make you careless. Remember that a careless fraction of a second is sufficient to inflict serious injury. W A R N I N G Always wear safety goggles or safety glasses with side shields when operating power tools. - Page 17 OPERATION W A R N I N G Let the tool work at its own pace. Do not overload. TURNING THE TOOL ON AND OFF (FIG.8) For your safety, this tool is equipped with a double switching system. This system prevents starting the tool inadvertently.
- Page 18 OPERATION • Regularly oil the blades. FIG.9 FIG.10 W A R N I N G Keep hands away from blade. Contact with blade will result in serious personal injury.
-
Page 19: Maintenance
MAINTENANCE CLEANING, MAINTENANCE AND STORAGE Your tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.Your charger does not require any maintenance apart from regular cleaning. W A R N I N G Before performing any maintenance on the tool, remove the battery from the tool. -
Page 20: Environmentally Safe Battery Disposal
ENVIRONMENTALLY SAFE BATTERY DISPOSAL The following toxic and corrosive materials are in the batteries used in this string trimmer battery pack: Lithium-Ion, a toxic material. W A R N I N G All toxic materials must be disposed of in a specified manner to prevent contamination of the environment. -
Page 21: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Battery not installed properly. Check the battery installation. Fully charge the battery by Battery discharged. following the instructions in the charger manual. Tool will not start. Pull back on the safety lock Safety lock button not button before engaging the actuated. -
Page 22: Limited Warranty
LIMITED WARRANTY GREENWORKS™ hereby warranties this product, to the original purchaser with proof of purchase, for a period of four (4) years against defects in materials, parts or workmanship. GREENWORKS™, at its own discretion will repair or replace any and all parts found to be defective, through normal use, free of charge to the customer. -
Page 23: Exploded View
EXPLODED VIEW... -
Page 24: Parts List
PARTS LIST Item No. Part No. Description 311031919 Handle Pole 3410835-4 Fastening Knob 322011916A Bolt 311041919 Hedge Trimmer Head 34110648B Blade Cover 37902144C Shoulder Strap... - Page 25 Greenworks Tools PO Box 1238 Mooresville, NC 28115 TOLL-FREE HELPLINE: 1-855-345-3934 Rev: 00 (06-30-17) Printed in China on 100% Recycled Paper...
