Summary of Contents for GreenWorks Pro HT80L00

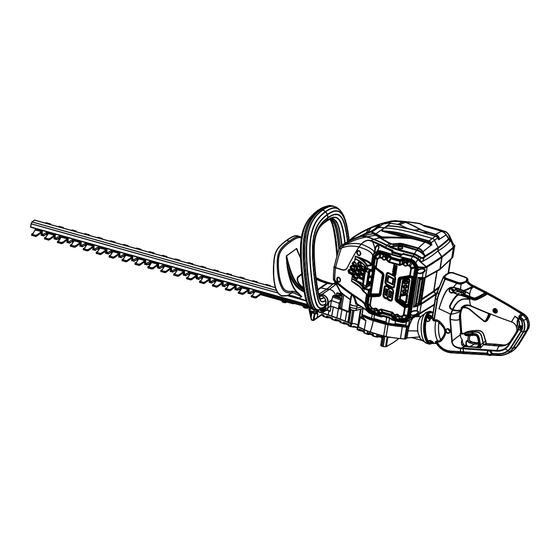

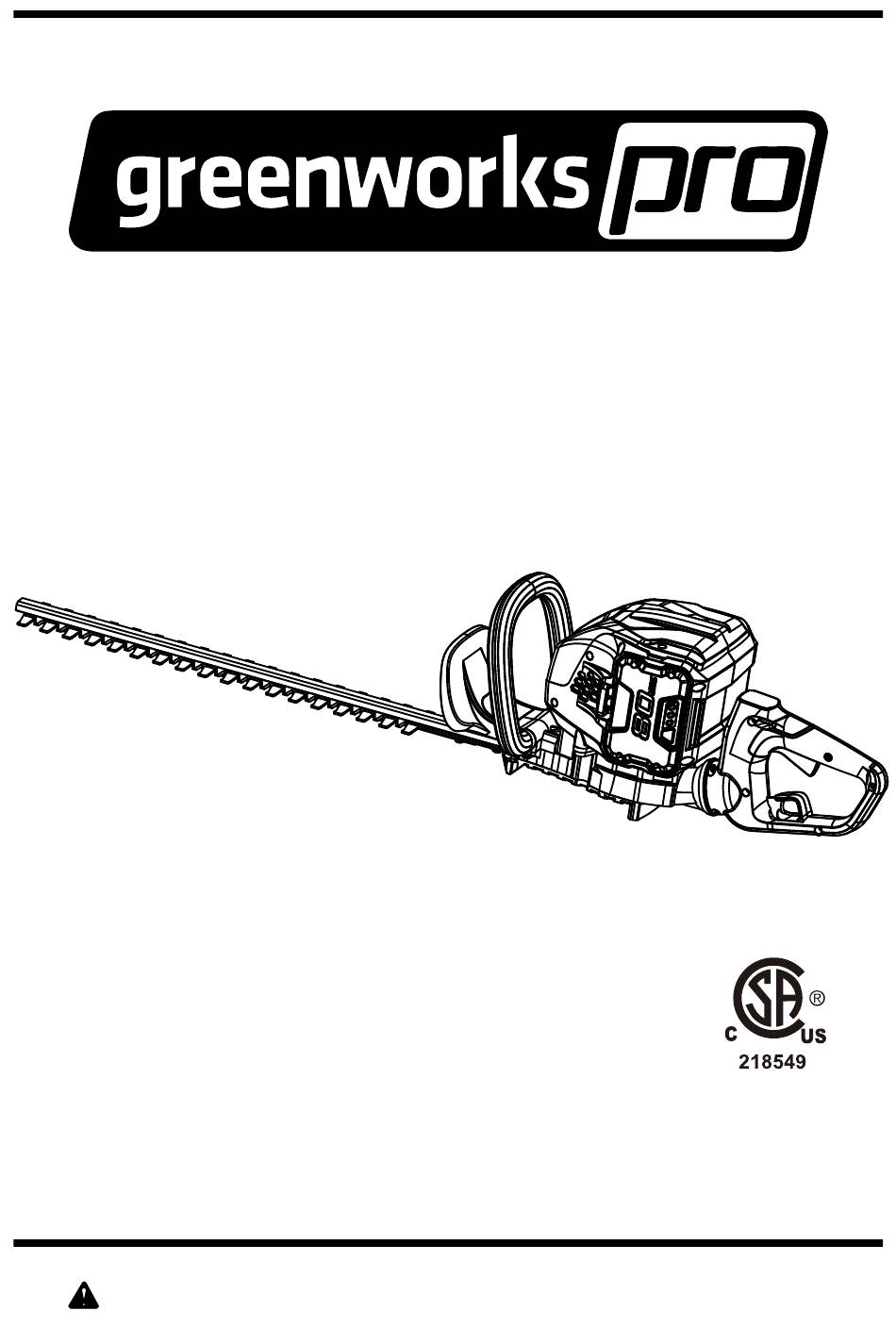

- Page 1 80V 24” DIY BRUSHLESS HEDGE TRIMMER HT80L00 Owner’s Manual TOLL-FREE HELPLINE: 1-855-345-3934 www.greenworkstools.com/80v-pro Read all safety rules and instructions carefully before operating this tool.
-
Page 2: Table Of Contents
CONTENTS Contents ..........................2 Specifications ........................2 Safety information ......................3-7 Symbols ..........................8-9 Know your hedge trimmer ....................10 Assembly instruction ......................11-12 Operating instructions ......................13 Battery charger ......................14-15 Maintenance..........................16 Environmentally safe battery disposal..................17 Troubleshooting.........................18 Warranty ..........................19 Exploded View ........................20 Parts List.......................... -
Page 3: Safety Information
SAFETY INFORMATION W A R N I N G READ AND UNDERSTAND ALL INSTRUCTIONS. Failure to follow all instructions listed injury. Save all warnings and instructions for future reference. The term "power tool"in all of the warnings listed below refers to your mains-operated battery-operated (cordless) power tool. WORK AREA •... - Page 4 SAFETY INFORMATION • Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. • Do not use tool if switch does not turn it on or off. A tool that can not be controlled with the switch is dangerous and must be repaired.
- Page 5 SAFETY INFORMATION FOR HEDGE TRIMMERS D A N G E R If the hedge trimmer blade jams or gets caught on an electrical cord or wires, DO NOT TOUCH THE BLADE FOR ANY REASON! IT CAN BE ELECTRICALLY LIVE AND CAUSE SERIOUS OR FATAL INJURY! Release or drop the trimmer in the quickest, safest way.
- Page 6 SAFETY INFORMATION W A R N I N G If the battery gets in your eyes, immediately with clean water for at least 15 minutes. Get immediate medical attention. Do not charge the battery pack in rain or in wet conditions. Do not immerse the tool, battery pack, or charger in water or other liquid.
- Page 7 SAFETY INFORMATION W A R N I N G READ AND UNDERSTAND ALL INSTRUCTIONS. Failure to follow safety rules listed below • Do not place the charger where the power cord might be stepped on, tripped on, or subjected to damage. •...
-
Page 8: Symbols
SYMBOLS Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer. SYMBOL NAME DESIGNATION/EXPLANATION Volts Voltage Amperes Current Hertz Frequency (cycles per second) - Page 9 SyMBOLS The following signal words and meanings are intended to explain the levels of risk associated with this product. SyMBOL SIgNAL MEANINg DANgER Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury. WARNINg Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury.
-
Page 10: Know Your Hedge Trimmer
KNOW YOUR HEDGE TRIMMER Auxiliary handle Guard Blade Rear handle Battery pack Lock out Rotating handle Trigger button release switch Fig. 1 KNOW YOUR HEDGE TRIMMER (See Figure 1.) The safe use of this product requires an understanding of the information on the product and in this operator’s manual as well as a knowledge of the project you are attempting. -
Page 11: Assembly Instruction
ASSEMBLY INSTRUCTION BATTERY IMPORTANT! The battery pack (2901302 Rated 80VDC,144WH) is not charged when it is purchased. Before using the hedger for the first time, place the battery pack on the battery charger and charge. Make sure to read all safety precautions, and follow the instructions in the Battery Charger section. - Page 12 ASSEMBLY INSTRUCTION UNPACKING • This product requires no assembly. • Carefully remove the product and any accessories from the box. Make sure that all items listed in the packing list are included. • Inspect the product carefully to make sure no breakage or damage occurred during shipping. •...
-
Page 13: Operating Instructions
OPERATING INSTRUCTIONS STARTING AND STOPPING THE HEDGE TRIMMER (See Figure 3.) 1. Slide the lock-out button (1) into the handle and hold. 2. Squeeze the trigger switch (2). The hedge trimmer will turn ON. 3. Release the lock-out button. The hedge trimmer will stay on as long as the trigger switch is engaged. -
Page 14: Battery Charger
BATTERY CHARGER (See Figure 5. ) CHARGING PROCEDURE The battery is not shipped fully charged. It is recommended to fully charge before first use NOTE: to ensure that maximum run time can be achieved. This lithium-ion battery will not develop a memory and may be charged at any time. - Page 15 BATTERY CHARGER CHECKING THE CHARGE If the battery pack does not charge properly: • Check the current at the power outlet with another tool . Make sure that the outlet is not turned off. • Check that the charger contacts have not been shorted by debris or foreign material. •...
-
Page 16: Maintenance
MAINTENANCE W A R N I N G To avoid risk of electric shock, or electrocution: • Do not use a damp cloth or detergent on the battery or battery charger. • Always remove the battery pack before cleaning, inspecting, or performing any maintenance on the hedge trimmer. -
Page 17: Environmentally Safe Battery Disposal
ENVIRONMENTALLY SAFE BATTERY DISPOSAL The following toxic and corrosive materials are in the batteries used in this hedge trimmer battery pack: Lithium-Ion, a toxic material. W A R N I N G All toxic materials must be disposed of in a manner to prevent contamination of the environment. -
Page 18: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Motor fails to start Battery is not secure. To secure the battery pack, make sure when switch trigger the latches on the top of the battery pack is depressed. snap into place. Battery is not charged. Charge the battery pack according to the instructions included with your model. -
Page 19: Warranty
WARRANTY GREENWORKS™ hereby warranties this product, to the original purchaser with proof of purchase, for a period of four (4) years against defects in materials, parts or workmanship. GREENWORKS™, at its own discretion will repair or replace any and all parts found to be defective, through normal use, free of charge to the customer. -
Page 20: Exploded View
EXPLODED VIEW... -
Page 21: Parts List
PARTS LIST ITEM NO. PART NO. DESCRIPTION 341061658 Blade cover 311011905 Bare tool assembly 34110897 Guard 311021907 Auxiliary handle assembly... - Page 22 Greenworks Tools P.O. Box 3130 Mooresville, North Carolina 28117 TOLL-FREE HELPLINE: 1-855-345-3934 Rev: 00 (01-13-16) Printed in China on 100% Recycled Paper...
