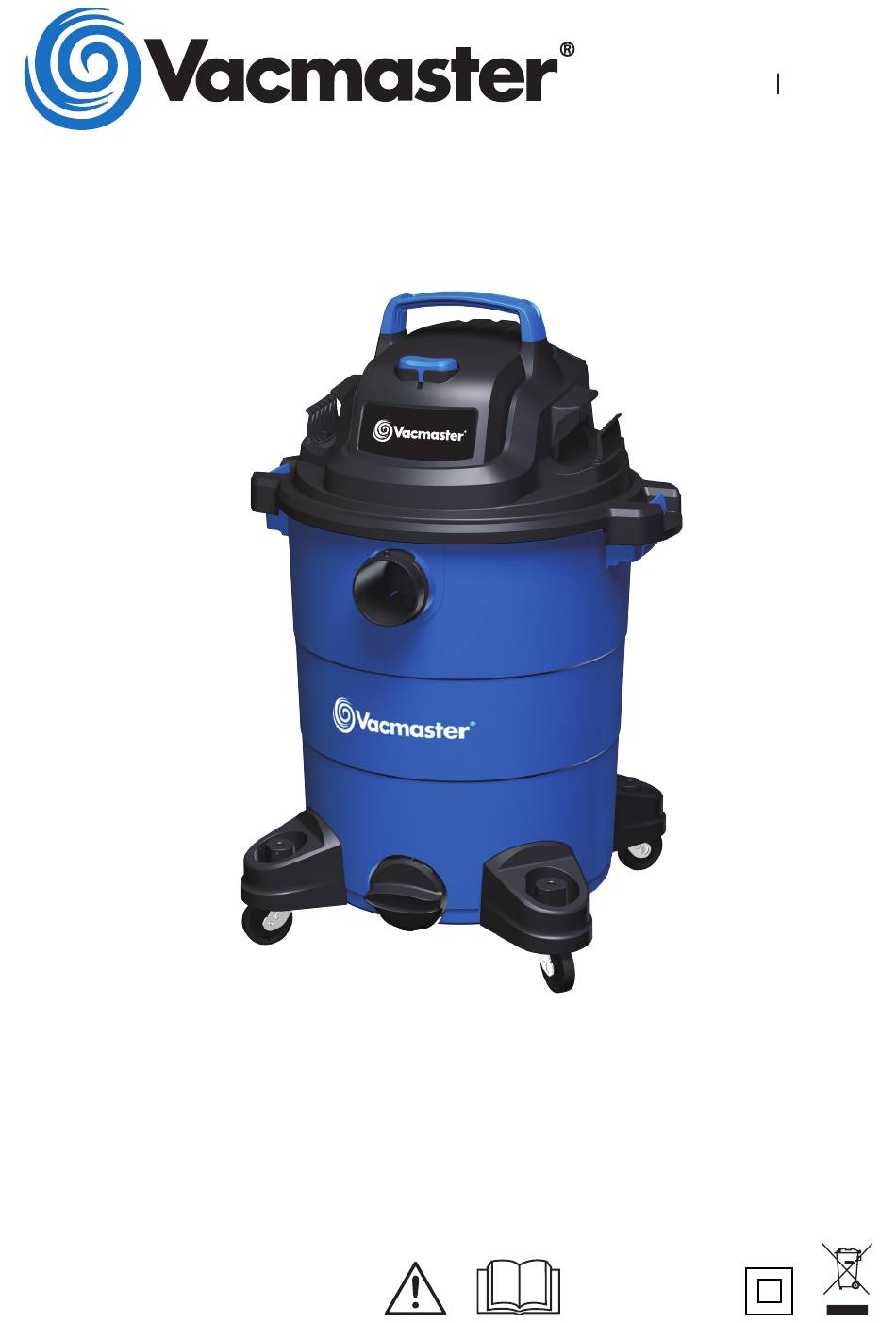

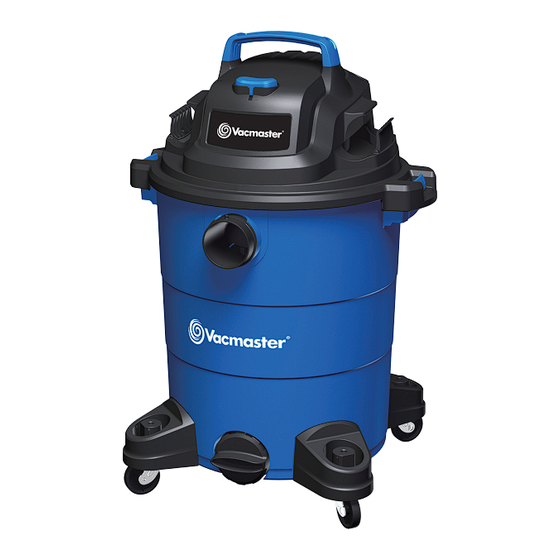

  • Page 1 1200W 30L VOC1230PF IPX4 ORIGINAL INSTRUCTIONS...

  • Page 3: Table Of Contents

    Recycling and Disposal ........................12 Exploded View ..........................13 Parts List............................14 ® Thank you for purchasing this Vacmaster wet and dry vacuum cleaner. Feel confident that ® with Vacmaster you are obtaining a high-quality product that is engineered for optimal performance.

  • Page 4: Safety Information

    SAFETY INFORMATION READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE USING THIS VACUUM CLEANER. When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating manual with due care. Keep this manual in a safe place so that the information is always available.
  • Page 5 • To reduce the risk of health hazards from vapours or dusts, do not vacuum toxic materials. • Do not use or store near hazardous materials. • Do not use this vacuum cleaner with a torn filter or without the filter installed.

  • Page 6: Unpacking And Checking Carton Contents

    UNPACKING AND CHECKING CARTON CONTENTS...
  • Page 7 Carry Handle Extension Wand (x2) On/Off Switch Car Nozzle Power Head Hard Floor Nozzle Suction Port Round Dust Brush Container Crevice Tool Accessory Storage Cartridge Filter (pre-installed) Drain Cap Filter Retainer (pre-installed) Caster Foot Nylon Pre-filter Latch Air/Noise Diffuser Hose Storage Foam Filter Blower Port Screw (x6)

  • Page 8: Assembly

    ASSEMBLY NOTE: A Phillips screwdriver is required. 1. Remove all the contents from inside of the vacuum cleaner container. 2. Attach the carry handle into the slots located on the top of the power head. Secure them with supplied screws (Fig. 1). 3.

  • Page 9: Operation

    OPERATION ② ① 1. Switching On/Off Connect the mains plug to a suitable power outlet. Position Status 2. Wet & Dry Vacuum Operation WARNING! ENSURE YOU READ, UNDERSTAND AND APPLY SECTION ENTITLED ‘SAFETY INFORMATION’. 1) Verify that the correct filters are installed for wet or dry vacuuming and the container latches are secured.
  • Page 10 OPERATION 4) Replace the power head, and secure it in place. IMPORTANT: Check the filters regularly for optimal performance. An old or blocked filter will reduce suction performance. For Wet Vacuuming: 1) To prepare your vacuum cleaner for wet vacuuming, remove the dry use cartridge filter and nylon pre-filter.

  • Page 11: Maintenance

    MAINTENANCE WARNING: REMOVE THE POWER CORD FROM THE POWER SUPPLY BEFORE CARRYING OUT ANY MAINTENANCE. 1) Keep all safety devices, air vents and the motor housing free of dirt and dust. Use a soft, dry brush to clean the equipment regularly. 2) Clear all dirt or debris from the container after each use.

  • Page 12: Troubleshooting

    TROUBLESHOOTING. Cleaning Performance Vacmaster vacuum cleaners are tested for endurance. If your motor is operating, then the most likely cause for a loss in suction is a blockage or an opening in the vacuum. To maintain a high cleaning performance from your machine, it is important to replace or clean filters as necessary.

  • Page 13: Technical Data

    TECHNICAL DATA Model Number VOC1230PF Motor 220-240V~50Hz Power Input 1200W Tank Volume Net Weight RECYCLING AND DISPOSAL This marking indicates that this product should not be disposed with other household wastes. The machine must be delivered in rigid packaging to avoid damage during transportation.

  • Page 14: Exploded View

    EXPLODED VIEW...

  • Page 15: Parts List

    PARTS LIST Part Part Number Description Quantity 551434101 Carry Handle Power Head Assembly 551328102 On/Off Switch 551125112 Motor 2.2.1 551046112 Carbon Brush Assembly 551005103 Float Valve 551005104 Filter Cage Container 551011106 Suction Port 551002110 Drain Cap 551058121 Caster Foot 551017125 Screw 551437107 Filter Retainer...
