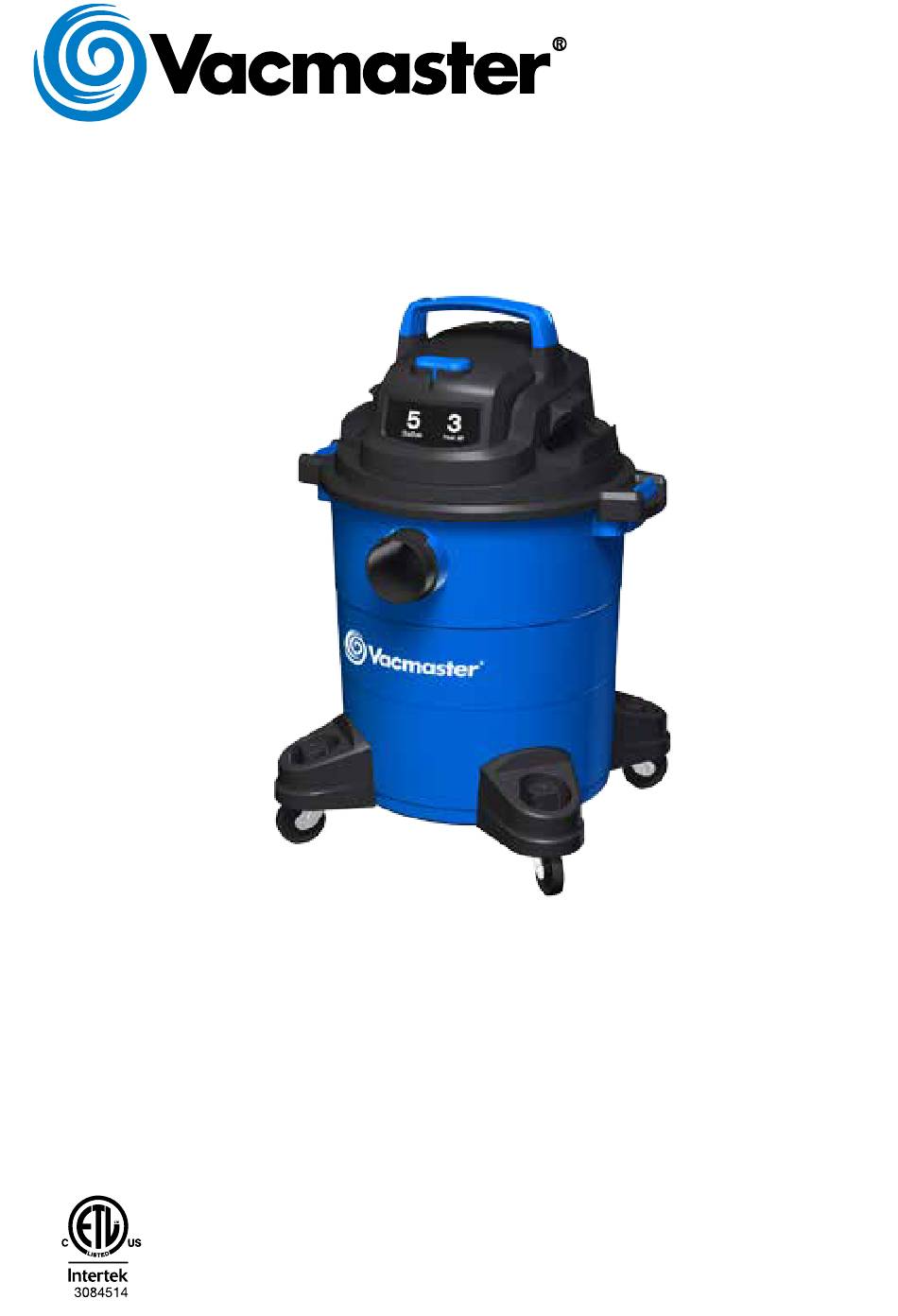

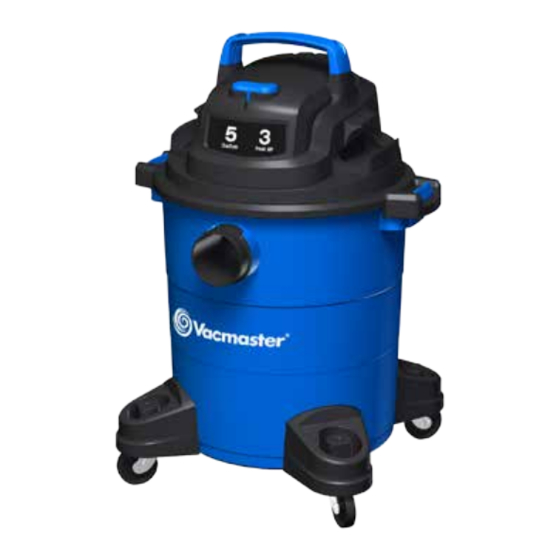

  • Page 1 Wet/Dry Vacuums Operator’s Manual 5 Gallon Model No. VOC507PF FOR YOUR SAFETY Read and understand this manual before use. Keep this manual for future reference. Distributed By Replacement Filters & Cleva North America, Inc. Accessories available at: 601 Regent Park Court Vacmaster.com...

  • Page 2: Table Of Contents

    FOR YOUR SAFETY: CAREFULLY READ AND UNDERSTAND ALL INSTRUCTIONS. WARRANTY We take pride in producing a high quality, durable product. This Vacmaster® product carries a limited two (2) year warranty against defects in workmanship and materials from date of purchase under normal household use.

  • Page 3: Safety Instructions & Warnings

    Safety is a combination of common sense, staying alert, and knowing how your vacuum works. Use this Wet/Dry Vac only as described in this manual. To reduce the risk of personal ® injury or damage to your Wet/Dry Vac, use only Vacmaster recommended accessories. Household Type SAVE THIS MANUAL FOR FUTURE REFERENCE.

  • Page 4: Extension Cords

    DOUBLE INSULATION INSTRUCTIONS This Wet/Dry Vac is double-insulated, eliminating the need for a separate grounding system. Use only identical replacements parts. Read the instructions for Servicing Double-Insulated Wet/Dry Vacs before servicing. Use this Wet/Dry Vac as described in this manual. Observe the following warnings that appear on the motor housing of your Wet/Dry Vac.

  • Page 5: Unpacking & Checking Carton Contents

    UNPACKING & CHECKING CARTON CONTENTS Remove all contents from the box. Remove the power head and take out any contents inside the collection tank. Check each item against the carton contents list. Carton Contents List Description ......Qty. Vac Assembly ......1 Hose ........1 Extension Wand .......3 Floor Nozzle ......1...

  • Page 6: General Assembly Instructions

    GENERAL ASSEMBLY INSTRUCTIONS A Philips head screw driver is required. WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT EXPOSE TO RAIN. MAKE SURE PLUG IS DISCONNECTED BEFORE ASSEMBLING THE WET/DRY VAC. UNPACKING YOUR WET/DRY VACUUM & GENERAL ASSEMBLY 1.

  • Page 7: Dry Vacuum Operation

    DRY VACUUM OPERATION DRY VACUUMING WARNING: BE SURE TO READ, UNDERSTAND, AND APPLY, INFORMATION ENTITLED ‘SAFETY INSTRUCTIONS & WARNINGS’. DO NOT VACUUM IN AREAS WITH FLAMMABLE GASES, VAPORS, OR EXPLOSIVE DUSTS IN THE AIR. FLAMMABLE GASES OR VAPORS INCLUDE BUT ARE NOT LIMITED TO: LIGHTER FLUID, SOLVENT TYPE CLEANERS, OIL-BASED PAINTS, GASOLINE, ALCOHOL, OR AEROSOL SPRAYS.

  • Page 8: Liquid Vacuum Operation

    LIQUID VACUUM OPERATION LIQUID VACUUMING WARNING: BE SURE TO READ, UNDERSTAND, AND APPLY, INFORMATION ENTITLED ‘SAFETY INSTRUCTIONS & WARNINGS’. DO NOT VACUUM IN AREAS WITH FLAMMABLE GASES, VAPORS, OR EXPLOSIVE DUSTS IN THE AIR. FLAMMABLE GASES OR VAPORS INCLUDE BUT ARE NOT LIMITED TO: LIGHTER FLUID, SOLVENT TYPE CLEANERS, OIL-BASED PAINTS, GASOLINE, ALCOHOL, OR AEROSOL SPRAYS.

  • Page 9: Blower Operation

    BLOWER OPERATION This Wet/Dry Vac has blowing capabilities. To use the blower feature follow the instructions listed. WARNING: ALWAYS WEAR SAFETY GOGGLES COMPLYING WITH ANSI Z87.1 (OR IN CANADA, CSAZ94.3) BEFORE USING BLOWER. CAUTION: KEEP BYSTANDERS CLEAR FROM BLOWING DEBRIS. WARNING: WEAR A DUST MASK IF BLOWING CREATES DUST THAT MIGHT BE INHALED.

  • Page 10: Maintenance

    MAINTENANCE 1. Verify that the power cord is disconnected from the outlet. (Fig. 1) 2. Disconnect the hose from the vacuum. (Fig. 2) 3. Undo the latches and remove the power head from the collection tank. (Fig. 3) 4. Clear all dirt or debris from the collection tank and hose. (Fig. 4) 5.

  • Page 11: Installing & Cleaning Reusable Cloth Filter

    INSTALLING & CLEANING REUSABLE CLOTH FILTER Installing Reusable Cloth Filter 1. Verify that the power cord is disconnected from the outlet. 2. Remove power head and place in upside down position. 3. Slide reusable cloth filter down over the filter cage making sure the cage is completely covered. (Fig.
  • Page 12 TROUBLESHOOTING WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, UNPLUG BEFORE TROUBLESHOOTING Symptom Possible Causes Corrective Action 1) No power supply. 1) Check power supply – cord, breakers, fuses. 2) Faulty power cord. 2) Unplug and check the Vacuum will not operate. power cord.
  • Page 13 EXPLODED VIEW...
  • Page 14 PARTS LIST Part Drawing Number Description Quantity 551246001 Handle Assembly Power Head Assembly 551005103 Float Cup 551005104 Filter Cage Collection Tank 551011106 Vacuum Port Assembly 551058106 Caster Foot Assembly 551003108 Hose 551003109 Extension Wands 551003111 Floor Nozzle 551003104 Resuable Cloth Filter 551002118 Foam Wet Filter...
