6.

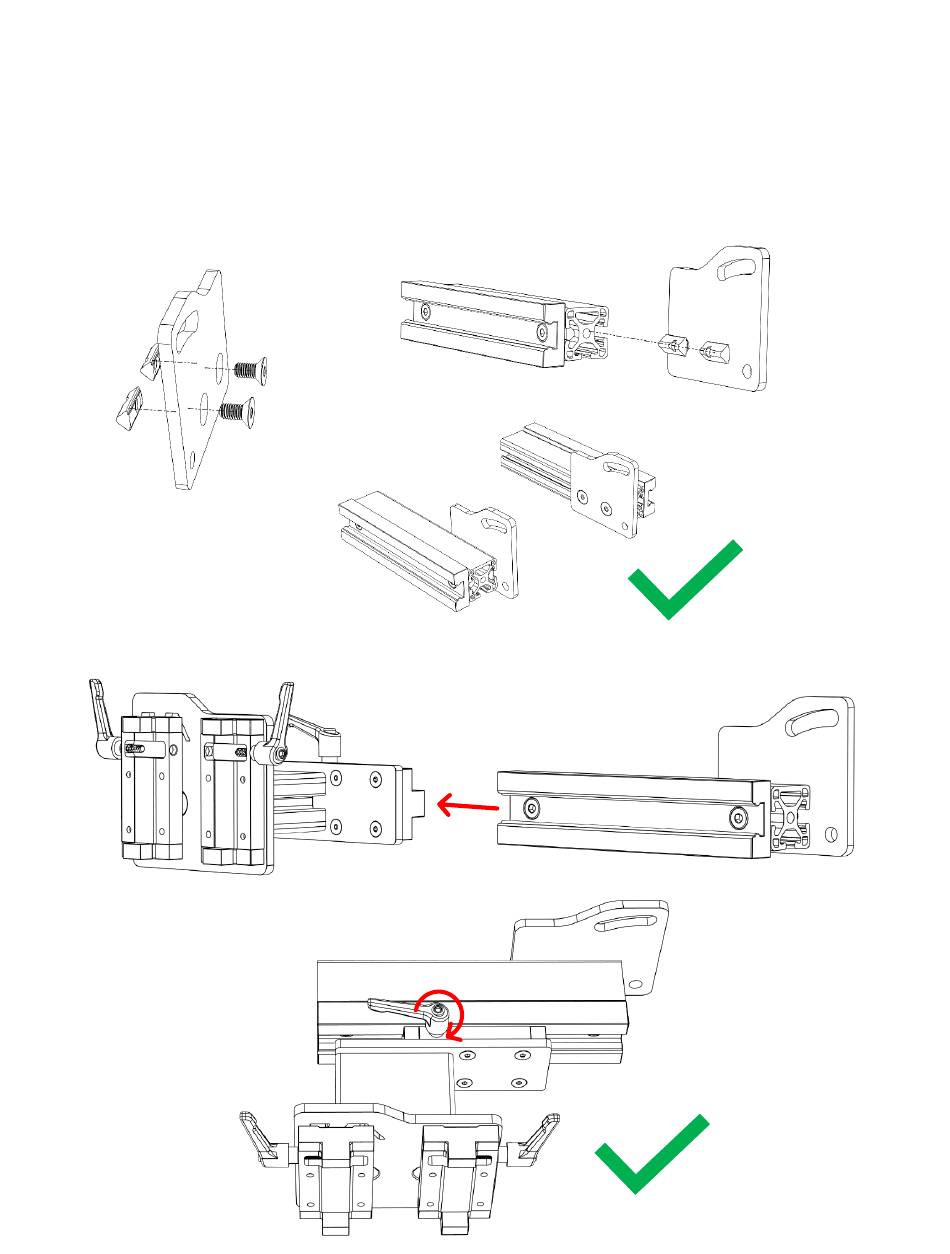

Assemble the DD side plate with 2X M8 X 16 flat head screws and 2X M8 t-
nuts, and slide on the 1.5" X 8" extrusion as shown. Place the DD side at 1" from
the end of the 1.5" extrusion. Repeat for both sides. Tighten Fully.
2X
7.
Slide the roller part of the guide through the guide rail. Screw the lever tight to
block the guide at about the middle position. Repeat on both sides.
2X
5
