Summary of Contents for ADVANCED SIMRACING Keyboard Tray

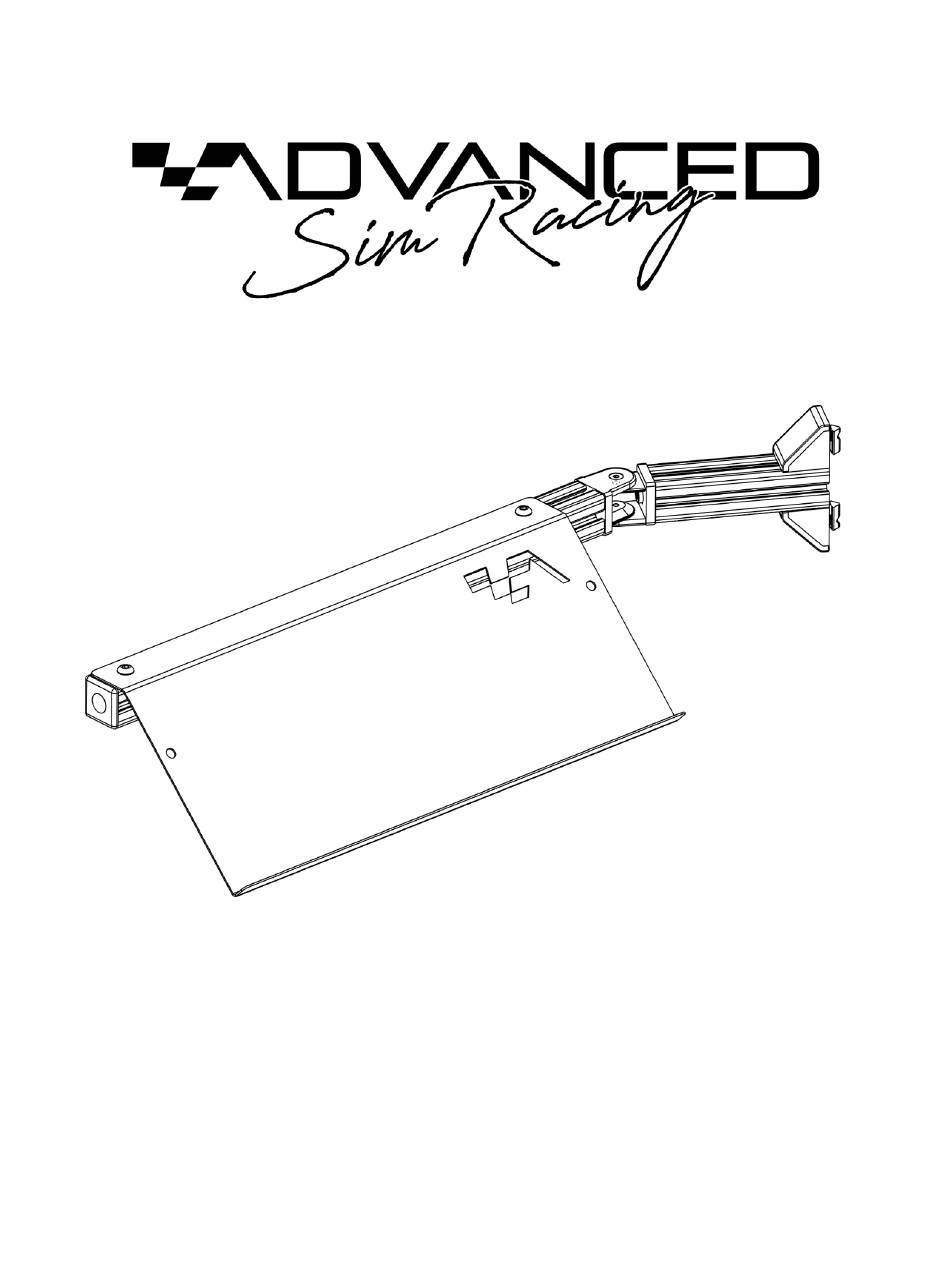

- Page 1 Keyboard Tray ASSEMBLY AND USER GUIDE...
- Page 2 Table of Contents Required Tools ............................1 Content of package ..........................2 Assembly guide ............................. 3 User Guide .............................. 7...
-
Page 3: Required Tools
Required Tools 6mm Allen key 5mm Allen key For questions, issues or comments, feel free to reach our support team! https://www.advancedsimracing.com/pages/advanced-help-center... -
Page 4: Content Of Package
Content of package Boxes 1X Keyboard Tray Box M8 X 16 Corner Gusset & Cover Hex screws – 6X 2X each Push Pin – 12X M8 T-Nuts – 6X 1.5” End Cap – 8X M8 X 12 button 40mm extrusion pivot – 1X head screw –... -
Page 5: Assembly Guide
Assembly guide Assemble 2 X corner gussets with 2 M8 X 16 screws and 2 M8 T-Nuts. Screw in the T-Nuts no more than 1 turn. Make sure to respect the shown orientation of the T-Nuts for trouble-free assembly. Slide the gussets at the end of the 1.5” X 6” extrusion and tighten fully. Screw the pivot to the end of the 6”... - Page 6 Screw the 1.5” X 22” extrusion to the other side of the pivot using 1 M8 X 16 socket screw. Assemble the keyboard plate with 2X M8 X 12 button head screws and 2X M8 T-nuts. Tighten no more than a turn. Slide the assembled keyboard plate through the 22”...
- Page 7 Cap off the end with the endcap and a push pin.
- Page 8 Congrats on your new keyboard tray!
-
Page 9: User Guide
User Guide Your keyboard tray is built to allow easy access to your keyboard. To install, simply pop-off the top endcap of the desired post and slide the tray down. Tighten fully when placed at the desired height. ASR6 shown for illustration purposes. - Page 10 If you’re using a free-standing monitor stand, we suggest installing it on one of its post to reduce possibilities of ingress issues with installation directly to the chassis. Here’s an example with an ASR6 chassis and the Free-Standing Triple 43” monitor stand. Most frequent question: Q: Can the tray be used for working in the rig? A: This tray assembly isn’t suited to pivot in place to support a keyboard and...
