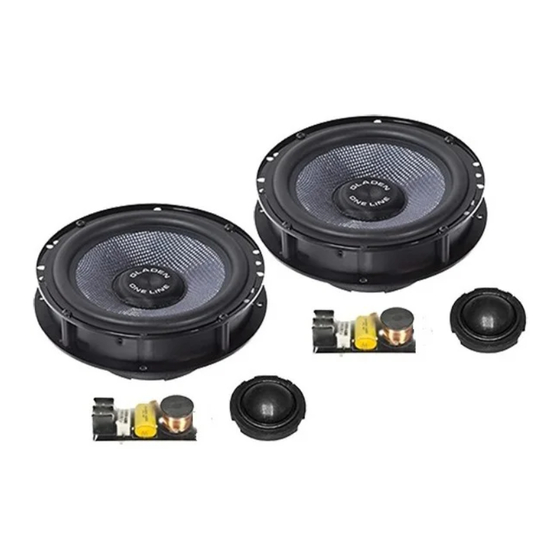

Installation guide:
The following installation guide is only an example, because there are several different types of the car with three or five
doors or special edition, furthermore changes in the models as well. Thereby are a lot of variations possible.
Security advice:
:
Only use this system with an
amplifier that is matched for this
speaker system.
A3A3
Only assemble this system in this
Plug and Play version. Changes or
increments on the crossover can
cause damage to the speaker or also
A3A3
The Crossover:
All cables and clips are assembled, that the clips be used only with the pertinent speakers.
There is the possibility to affect the high-level area by cutting the cable loop on the side.
Important: after cutting these, please isolate them.
In the CR-M (crossover of the M-Line system) is only the cable loop 1 to reduce the level.
A3A3
transparent
transparent/red

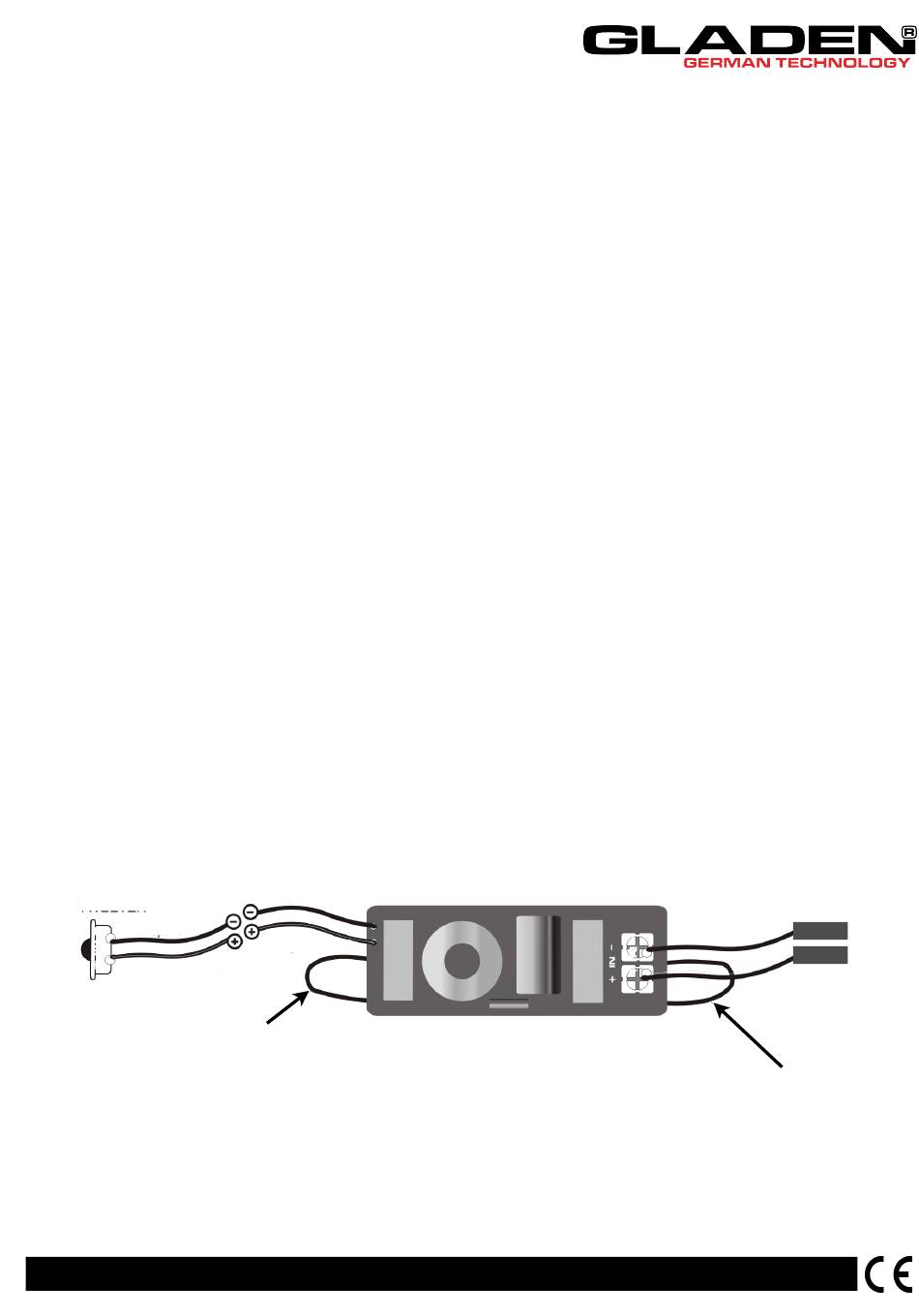

A3A3 Cable loop 1
Series resistance 3,9 ohm
before the tweeter will be
activated after cutting
Possibility of error:
1. tweeter slightly too loud -> cut the cable loop 2
2. tweeter or voice sizzles -> cut the cable loop 1
RECOMMENDATION: Cutting through the cable loop 2 on the drivers side and the cable loop 1 on the
passenger's side
AUDIO SYSTEM EUROPE GmbH, Bertha-Benz-Str. 9, 72141 Walddorfhäslach / Germany
can generate a burning on the
speaker.
Never use the speaker without the
crossover – they can be damaged.
This would void the warranty.
Please consider all instructions of
the vehicle manufacturer and never
make changes, which effect the
vehicle safety.
Listen responsibly. Music played too
loud for extended periods can cause
hearing damage.
connector
transparent
transparent/blue
Cable loop 2
Series resistance 2,7 ohm
before the crossover will be
activated after cutting
