Gladen ONE 200.3 MB Manual

Installation instructions:

The following instructions may only be seen as examples, as they can be installed in different vehicles. The models (C / E / GLC class)
differ, and there are different variants of the equipment possible.

Important note:

The
adjustable high pass on two channels and an adjustable low pass on two channels!

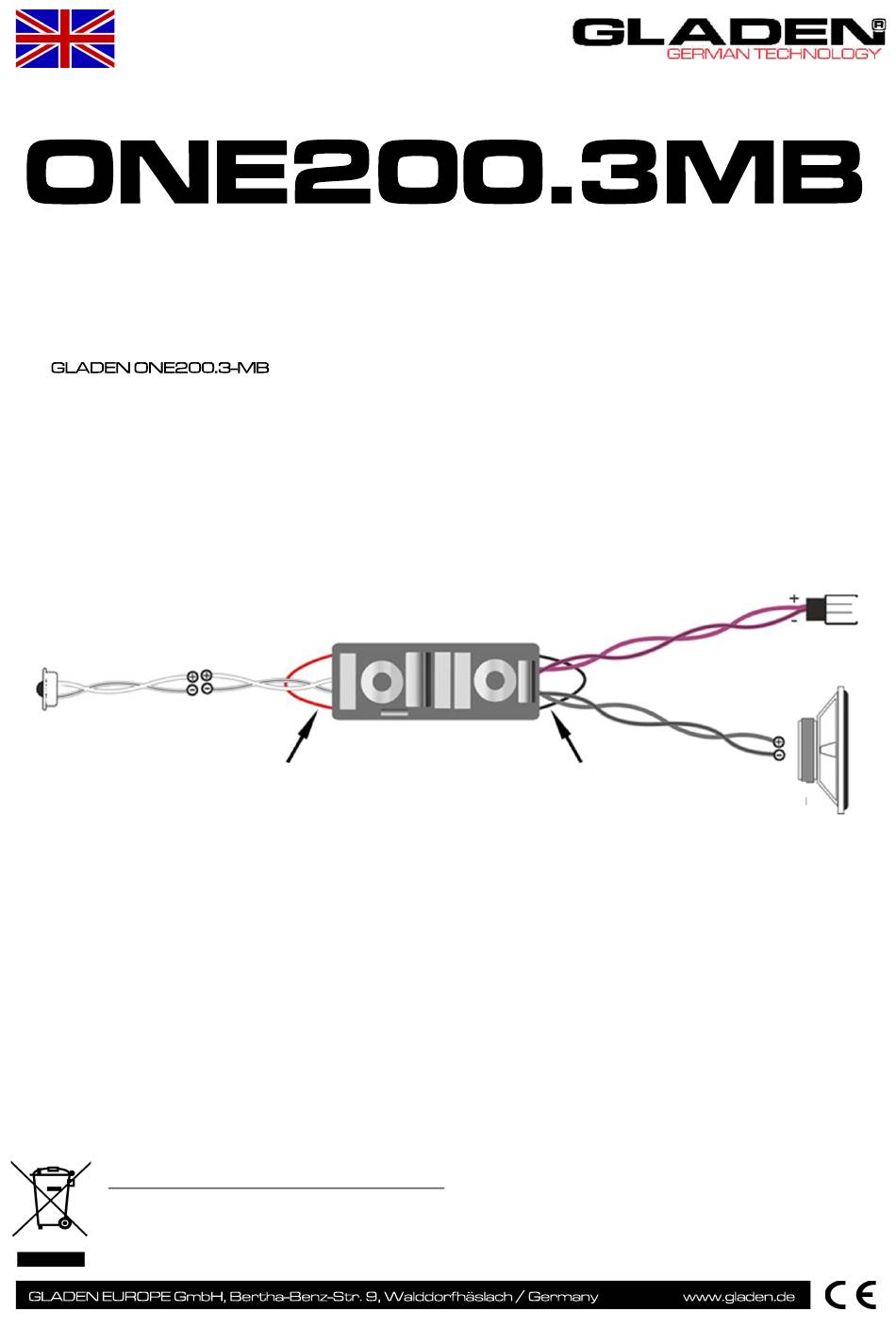

The crossover:

Cables and plugs are assembled in such a way that the plugs only fit to the corresponding loudspeaker. It is possible to influence the
high-frequency range by cutting the cable loops hanging out to the side. If you cut them, be sure to insulate the open ends of the
cables.
Tweeter
Hint:
Tweeter to thaw > Cut cable loop 2.
Muffle high frequencys or voices > Cut cable loop 1.
Setting recommendation:
Cut the cable loop 1 to lower the level in the super-high frequency range.
If no tweeters are installed ex works, both cable loops should be cut through.

Security informations:

Please get sure the battery is disconnected before
starting the installation.
Operate the system only with a 4-channel amplifier
(or with two 2-channel amplifiers) with adjustable
high/low pass filters, which can be adjusted.
Run the system only in this version
Changes or enhancements of the crossover can damage
the speakers or even cause a fire in the car.
Information on disposal of old electrical and electronic equipment
(applicable for countries that have adopted separate waste collection systems)Products with the symbol (crossed-out wheeled bin) cannot be disposed
of as household waste. Old electrical and electronic equipment should be recycled at a special waste facility. Contact your local authority for details in
locating a recycle facility nearest to you. Proper recycling and waste disposal will help conserve resources whilst preventing detrimental effects on your
health and the environment. This product can be disposed of with the used car together. In this case don't remove it from the car.
must be operated with one 4-KanaI amplifier (or two 2-KanaI amplifiers). It must have an
Cable loop 1 Cable loop 2
Never operate the speakers without crossover.
Risks of damage! In this case you will lose the warranty
Please respect all instructions of the car manufacturer and
never perform works which can influence the security of the car
Too loud music can reduce your attention to the traffic and
can influence your hearing negatively
Connector from
vehicle
Midrange door
