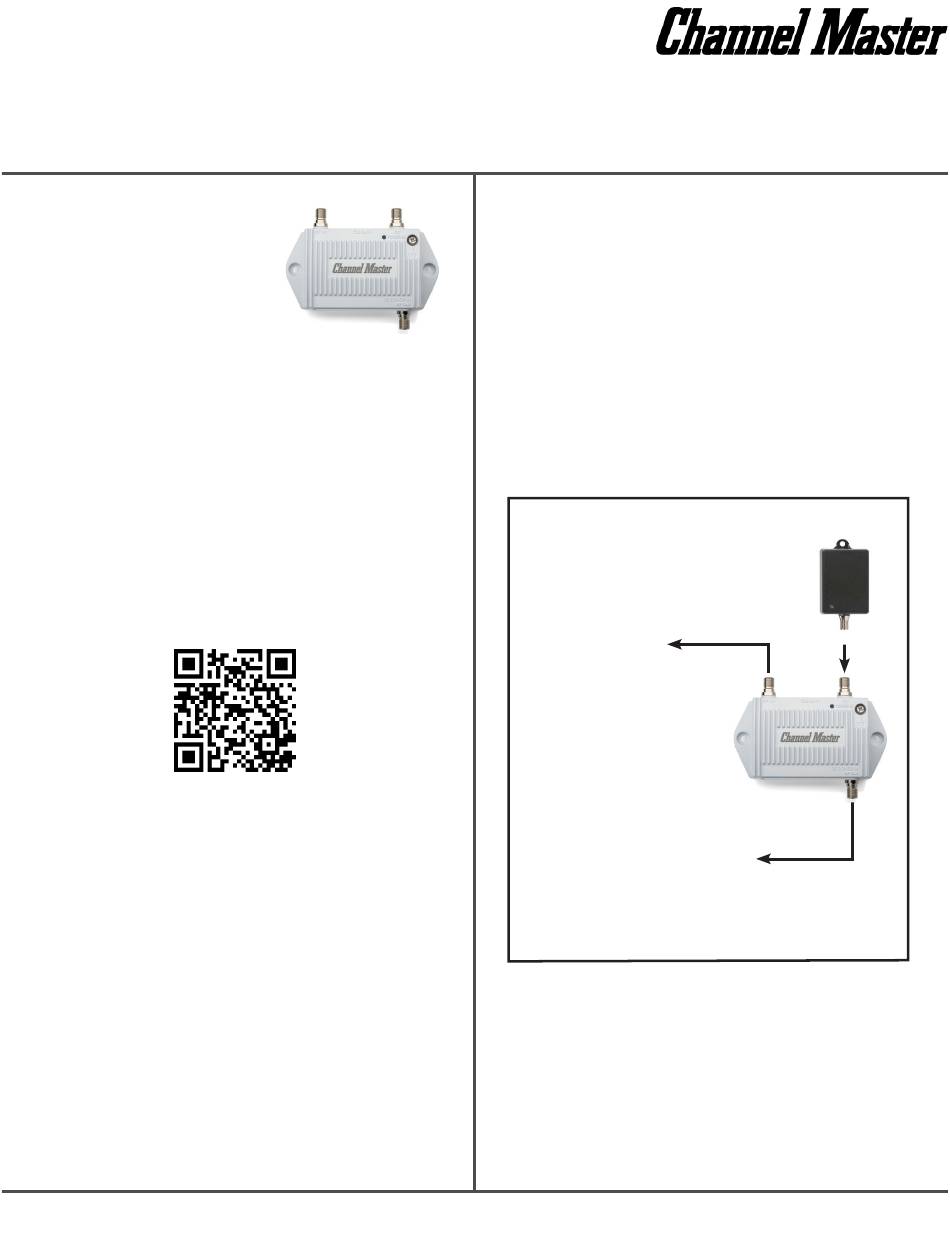

Channel Master CM-3411 Instruction Sheet

FM/Cable TV Distribution
Amplifier Instruction Sheet

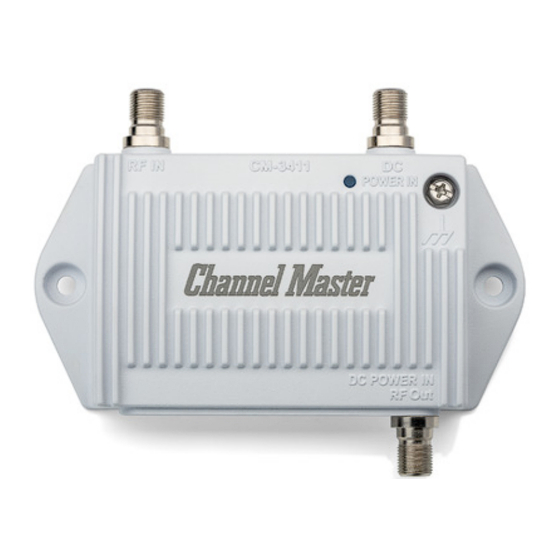

CM-3411
CM-3411
1-Port FM Antenna/Cable
Distribution Amplfier
Contents:
• Amplifier
• Power Supply
• Coaxial Cable Jumper
• Instruction Sheet
Scan for Tech Support
www.channelmaster.com/support
Optional Configuration; The FM Antenna/Cable TV Distribution
Amplifier CM-3411 can be installed in a location without access to power.
This option will require accessories that are sold separately. The (Bottom
Right) output port on the FM Antenna/Cable TV labeled "DC Power IN"
will output the amplified antenna signal while simultaneously allowing
power to be input into the amp over the same coaxial cable. To use the
remote powering method option will require a compatible accessory,
CM-3400XPIPS or CM-7777XPI
(sold separately).
For Product Warranty information please visit us
online at www.channelmaster.com/warranty
© 2024 Channel Master L.L.C. Channel Master is a registered trademark. Specifications subject to change. All rights reserved. © Channel Master, 2024. Pub CM3411.IS.2024
Instructions
1. Connect the coaxial cable from the antenna to the "RF IN" port on
the amplifier.
2. Connect included coaxial cable between the "DC POWER IN" port
on the amplifier (Top Right) and the included power supply's
coaxial port.
3. Connect the coaxial cable(s) from the "OUT" port(s) to the
television set, set-top box, or tuning device.
4. Plug in the power supply to an AC voltage source.
Installation is complete.
From FM/Cable TV
To Receiver or TV
ChannelMaster.com
Power
Supply
(Optional PWR IN)
