Pin Assignments

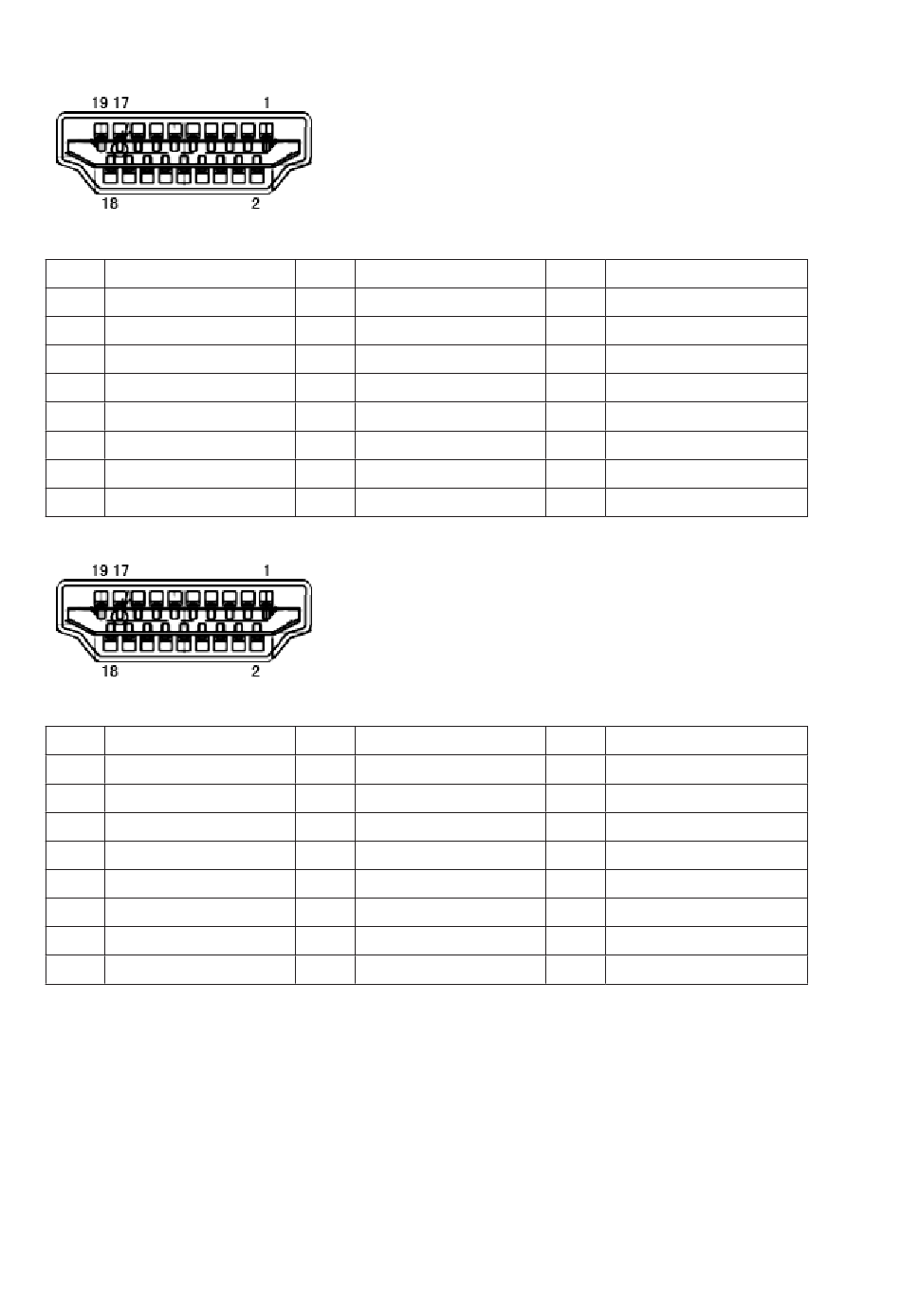

19-Pin Color Display Signal Cable
Pin No. Signal Name
1. TMDS Data 2+
2. TMDS Data 2 Shield
3. TMDS Data 2-
4. TMDS Data 1+
5. TMDS Data 1Shield
6. TMDS Data 1-
7. TMDS Data 0+
8. TMDS Data 0 Shield
19-Pin Color Display Signal Cable
Pin No. Signal Name
1. TMDS Data 2+
2. TMDS Data 2 Shield
3. TMDS Data 2-
4. TMDS Data 1+
5. TMDS Data 1Shield
6. TMDS Data 1-
7. TMDS Data 0+
8. TMDS Data 0 Shield
Pin No. Signal Name
9. TMDS Data 0-
10. TMDS Clock +
11. TMDS Clock Shield
12. TMDS Clock-
13. CEC
14. Reserved (N.C. on device)
15. SCL
16. SDA
Pin No. Signal Name
9. TMDS Data 0-
10. TMDS Clock +
11. TMDS Clock Shield
12. TMDS Clock-
13. CEC
14. Reserved (N.C. on device)
15. SCL
16. SDA
28
Pin No. Signal Name
17. DDC/CEC Ground
18. +5V Power
19. Hot Plug Detect
Pin No. Signal Name
17. DDC/CEC Ground
18. +5V Power
19. Hot Plug Detect
