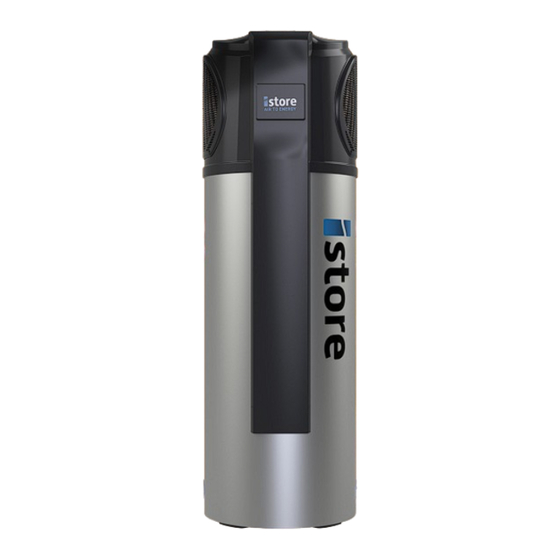

Istore PASHW015-270-FL02-R290 Owner's Manual
  1. Manuals
  2. Brands
  3. Istore Manuals
  4. Heat Pump
  5. PASHW015-270-FL02-R290
  6. Owner's manual

Istore PASHW015-270-FL02-R290 Owner's Manual

Hide thumbs Also See for PASHW015-270-FL02-R290:
Table of Contents

Advertisement

Quick Links

Download this manual
270L OWNER'S MANUAL
PASHW015-270-FL02-R290
Safety information
How the iStore works
Screen display & function guide
Troubleshooting
Warranty information
iStore. © Copyright 2024
iStore - R290 Owner's Manual V1 - JUNE 2024
Online: heatpumps.istore.net.au

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PASHW015-270-FL02-R290 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Istore PASHW015-270-FL02-R290

Summary of Contents for Istore PASHW015-270-FL02-R290

  • Page 1 270L OWNER’S MANUAL PASHW015-270-FL02-R290 Safety information How the iStore works Screen display & function guide Troubleshooting Warranty information iStore. © Copyright 2024 iStore - R290 Owner’s Manual V1 - JUNE 2024 Online: heatpumps.istore.net.au...

  • Page 2: Congratulations On Your Purchase

    Please keep this copy of your Owner’s Manual as it contains important information about your solar hot water system. iStore is a leading provider and installer of solar energy solutions. Our quality and design processes, combined with our years of experience in the solar industry has enabled us to develop a world class solar hot water storage product.
  • Page 3 Produces no harmful gases along with no open flame, making the unit safe to work with when installing. Easy to operate Featuring an easy to use timer for both start and stop operations. iStore - R290 Owner’s Manual V1 - JUNE 2024...
  • Page 4 As water is used in the home, the cycle will restart once the temperature in the lower section of the tank has dropped 12 degrees below the target temperature. iStore - R290 Owner’s Manual V1 - JUNE 2024...
  • Page 5 Compliance with AS/NZS 5601 must be observed during storage. If a refrigerant leak is detected, switch the unit off at the mains and contact your iStore service agent. End of life recycling: The refrigerant must not enter the atmosphere and can only be removed by a qualified technician.

  • Page 6: General Operation

    ƒ The iStore will keep its settings and timers during a power outage but note extended power loss may have caused the iStore to miss its normal schedule start or stop times, the schedule will continue as normal the following day or can be forced ON/OFF via the LCD.

  • Page 7: Function Of Keys

    Set the clock or the timer. Electric Turn on/off the electric booster. Booster Move up or increase parameter values. Move down or decrease parameter values. Down Find the LCD function video tutorials on our website. https://heatpumps.istore.net.au/lcd-setup-tutorials/ iStore - R290 Owner’s Manual V1 - JUNE 2024...
  • Page 8 Lock Shows that the keyboard is locked. The general operation of the iStore is that when the bottom of the tank temperature, the top left number, falls more than 11 degrees below the target temperature, the iStore will commence heating and heat the full tank to the target temperature.
  • Page 9 4.2 The LCD Lock/Unlock function Important – If the iStore display does not detect activity for 60 seconds the screen will enter sleep mode which requires a simple palm press AND RELEASE on the LCD to reactivate it.

  • Page 10: Turn On/Off The Unit

    0.5s in the running interface and the LED display will turn off the unit and at this time the main display area shows OFF. Eco Mode Press , hold for 2s and release. Upper region tank temperature Lower region tank temperature iStore - R290 Owner’s Manual V1 - JUNE 2024...

  • Page 11: Mode Selection

    Vacation Mode For use when away on holidays, enter the date of your return and the smart iStore will reduce usage to the government mandated weekly disinfect cycle only. Vacation mode reduces energy consumption while you are away.

  • Page 12: Setting The Time And Date

    Tap the up or down arrows to adjust the hour Tap the clock button again and the minutes will flash mm:dd Tap the up or down arrows to adjust the minutes iStore - R290 Owner’s Manual V1 - JUNE 2024...
  • Page 13 Tap the up or down arrows adjust the month Tap the clock button again and the day will flash Tap the up or down arrows to adjust the day iStore - R290 Owner’s Manual V1 - JUNE 2024...
  • Page 14 Tap the up or down arrows adjust the year Tap the clock button to complete the timer setting Find the LCD function video tutorials on our website. https://heatpumps.istore.net.au/lcd-setup-tutorials/ iStore - R290 Owner’s Manual V1 - JUNE 2024...

  • Page 15: Timer Setting

    4.6 Timer Setting (Eco Mode) NOTE: A timer is not mandatory for the iStore operation. Factors such as household demand, time of use, individual supplier peak and offpeak electricity rates, solar panel Feed In Tarrif rates all may influence what heating schedule best suits a household...
  • Page 16 OFF 1 minutes will flash Tap the up or down arrows adjust the OFF 1 minutes Ensure that the OFF 1 minutes are different to the ON 1 minutes iStore - R290 Owner’s Manual V1 - JUNE 2024...
  • Page 17 ON and then OFF. When the timer ON time is reached it activates the display and will show the temperatures etc, at the end of the timer window the display will return to the OFF state. Find the LCD function video tutorials on our website. https://heatpumps.istore.net.au/lcd-setup-tutorials/ iStore - R290 Owner’s Manual V1 - JUNE 2024...
  • Page 18 When the LCD returns to the default state the display will indicate whether 1 or 2 timers are set just above the digital clock, e.g. Timer settings 1 timer 2 timer iStore - R290 Owner’s Manual V1 - JUNE 2024...

  • Page 19: Current Time

    NOTE: Do not set the second timer to 00:00 ON and 00:00 OFF as the unit will commence heating at midnight every second night. To leave the second time off simply allow the timer setting to timeout after setting the first timer end time. iStore - R290 Owner’s Manual V1 - JUNE 2024...

  • Page 20: Cancelling The Timer Setting

    5.6 Cancelling the Timer Setting Timer state Press and hold the clock button until the timer flashes The ON, 1 and timer 1 will flash Tap the power button to cancel the timer operation. iStore - R290 Owner’s Manual V1 - JUNE 2024...
  • Page 21 Functionality 4.7 Vacation Mode (Setting the date of your return from your vacation) In the example below the date when the istore is visited is August 20, i.e. 08:20, the return date is then set to September 16, i.e. 09:16 NOTE - the system clock must be set prior to starting this procedure.
  • Page 22 Tap the clock button again, ON and the vacation end day will flash Tap the up or down arrows to set the vacation end day iStore - R290 Owner’s Manual V1 - JUNE 2024...
  • Page 23 NOTE THE DATE DISPLAYED IS TODAYS DATE The iStore will remain OFF until the Vacation return date. Find the LCD function video tutorials on our website. https://heatpumps.istore.net.au/lcd-setup-tutorials/ iStore - R290 Owner’s Manual V1 - JUNE 2024...
  • Page 24 To comply with the Australian storage hot water regulations all manufacturers must include a anti legionnaires / disinfect cycle within their product. The iStore will utilise the electric booster to carry out the anti-legionella cycle at midday every 7 days since the unit had power established. (Midnight...

  • Page 25: Home Owner Maintenance

    Temperature and Pressure Relief valve PTV/PTR (all tanks) The iStore Hot Water system is fitted with an 850kPa PTR Valve, which is located on the side of the cylinder and is essential for its safe operation. It is important that you operate the lever on the PTR valve for a few seconds once every 6 months.

  • Page 26: Troubleshooting

    Excessive Hot Water load Increase timer setting if in use. An 850kPa and 99°C PTR valve is used on the iStore water tank, which is located on the side Pressure Temperature of the water tank and is essential for its safe Relief Valve (PTR) / operation.

  • Page 27: Terms And Conditions Of Warranty

    2. This Warranty is effective for all iStore Hot Water Systems manufactured and installed after 1st October 2022. 3. If the customer has not paid in full for the iStore Hot Water System then this Warranty does not apply. 4. iStore Hot Water System and its components are covered by a warranty against defective factory parts or workmanship from the date the iStore Hot Water System is installed for the relevant period for such component as outlined in Table 1 - Warranty Periods.
  • Page 28 Warranty. See Warranty Table on next page. 15. Any claim under this Warranty must include full details of the defect and/or damage to the iStore System. All claims must be made within one (1) month of detection of the defect.
  • Page 29 Terms and Conditions of Warranty 17. iStore does not warrant any work conducted by a third-party installer of the iStore Hot Water System. 18. This Warranty only applies to the iStore Hot Water System and its components and does not cover any plumbing or electrical associated parts, including but not limited to any parts supplied by any person installing the iStore Hot Water System.
  • Page 30 NOTES iStore - R290 Owner’s Manual V1 - JUNE 2024...
  • Page 31 - R290 Owner’s Manual V1 - JUNE 2024...
  • Page 32 After Sales Service Guaranteed Thank you for joining iStore in our mission to lead the way to a sustainable energy future. __________________________________________________ _______________ Supplier Name: Installation Date: ________________________________________________ _________________ Supplier Address: Supplier Phone: _________________________________________________________________ ___________________________________________ System Model / Type: iStore - R290 Owner’s Manual V1 - JUNE 2024 iStore.
