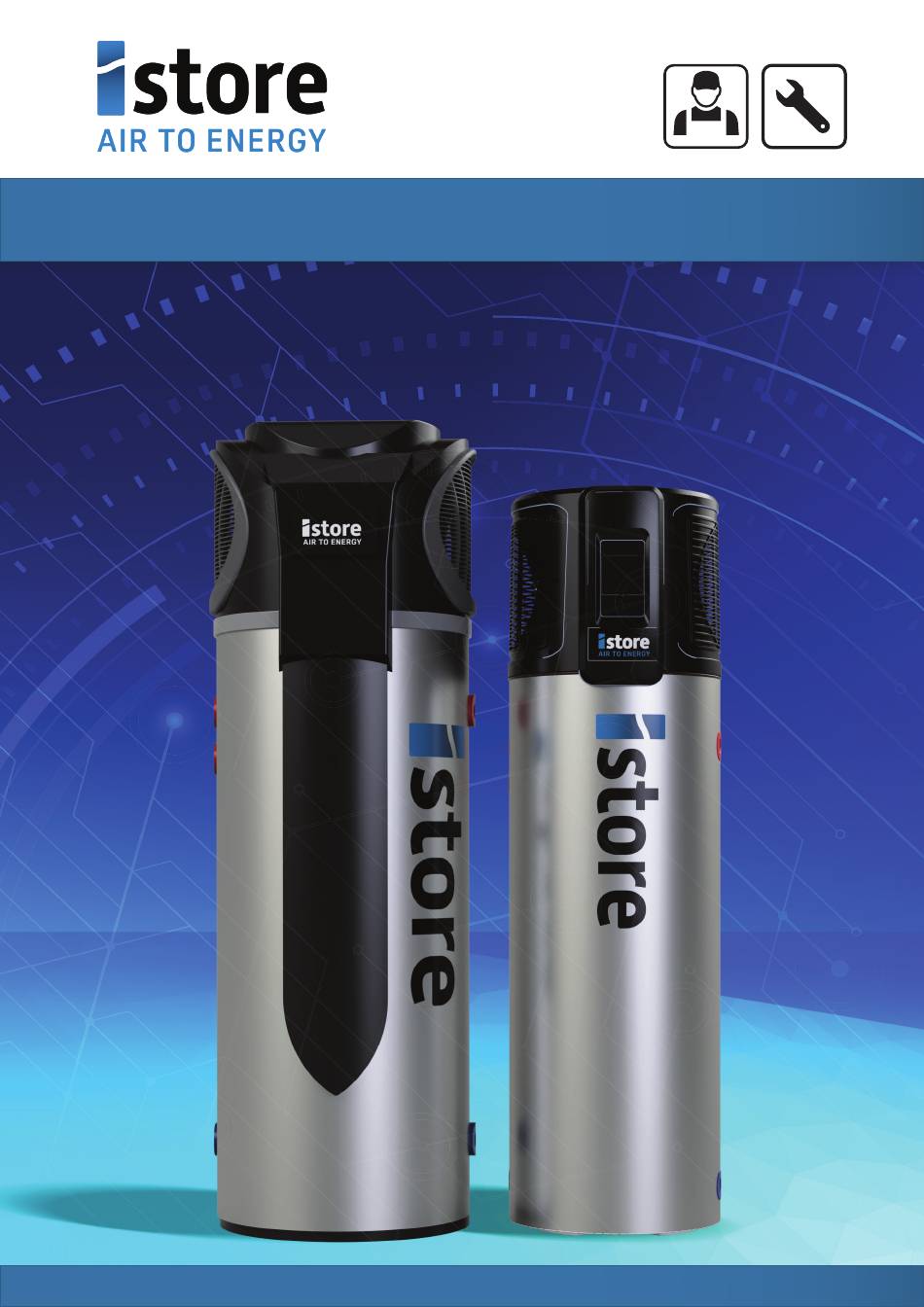

- Page 1 INSTALLATION MANUAL 180L / 270L istore.net.au iStore - Installation Manual - Aug 2023...
- Page 2 The Installer is to explain to the end user how to operate and maintain the unit in • accordance to this Installation Manual. iStore will not be held responsible for any damages or injuries caused by the incorrect • installation of this hot water system.
-
Page 3: Table Of Contents
5.2) Temperature Settings 5.3) Setting the Timer 5.4) Setting the Timer 5.5) Setting the Timer 5.6) Timer Settings Summary 5.7) Cancelling the timer 6. Maintenance and repair 6.1) Typical Failure and Solutions 7. Troubleshooting iStore - Installation Manual - Aug 2023... -
Page 4: Safety Precautions
The iStore shall be installed in strict accordance with local wiring regulations and equipped with a power supply containing a ground/earth conductor. The iStore is not intended for use by children, or persons with reduced physical sensory or mental capabilities, lacking relevant skill or experience, without suitable supervision. - Page 5 Installer or iStore directly Shut Off Power RELOCATION OR REPAIR If the iStore needs to be relocated or installed again, only use an authorised dealer or qualified persons Important It is prohibited for the end user to repair the unit themselves, unless qualified.
- Page 6 11 degrees below the target temperature. Electrical Connection: The installation of the iStore must strictly follow the AS/NZS 3000 wiring rules and local wiring regulations, ensuring that a licensed electrician deems the circuit suitable. Adequate overload protection and a residual current device of appropriate size should be installed. Offpeak and controlled load circuits are acceptable as long as there is a manual override option for maintenance and support during business hours.
-
Page 7: Specifications P7
Height to water outlet (mm) 1194 HW outlet HW condensation PTR Valve Hot water condensation (mm) Height to PTR Valve (mm) Anode Height to Anode 1094 Net weight (Kg) Top View Cold water inlet 270L iStore iStore - Installation Manual - Aug 2023... -
Page 8: Dimensions 180L P8
Height to water outlet (mm) 1240 HW outlet Hot water condensation (mm) HW condensation PTR Valve Height to PTR Valve (mm) Anode Height to Anode 1140 Net weight (Kg) Top View Cold water inlet 180L iStore iStore - Installation Manual - Aug 2023... -
Page 9: Performance Parameters P9
Duo valve. The hot water outlet from the tank is ¾ inch FI. All hot water pipes must be insulated by UV stable & appropriately rated insulation. iStore - Installation Manual - Aug 2023... -
Page 10: Safety Features
Pressure Temperature Relief Valve (PTR) An 850kPa, 10kW and 99°C PTR valve is used on the iStore water tank, which is located on the side of the water tank and is essential for its safe operation. The PTR valve is designed to allow 3-5% of total tank volume to discharge during heating to allow for hot water expansion. - Page 11 GENERAL SAFETY INSTRUCTIONS The installation of the iStore solar hot water systems requires the expertise of a licensed professional. The installation process must adhere to the guidelines set forth in the National Plumbing code (AS/NZS 3500.4), Australian Electrical Wiring Rules (AS/NZS 3000), as well as all applicable local plumbing and electrical regulations.
-
Page 12: Installation
Condensate drain shall discharge to an approved discharge point. • Filling and Commissioning the iStore Hot Water System 1. Turn on the cold water supply to the tank and open a hot water tap preferably laundry tap without filter as existing sediment may partially block pre-existing water saving devices. - Page 13 The unit should not be laid flat during vehicle transportation. 60º CAUTION: TOP HEAVY. HIGH CENTRE OF GRAVITY iStore - Installation Manual - Aug 2023...
-
Page 14: Installation Space P14
Ensure the minimum space between the unit and walls and objects are per specifications illustrated in Diagram 1a/2a and Diagram 1b/2b. • Unit shall be located as close as possible to the most frequently used hot water outlet. iStore - Installation Manual - Aug 2023... - Page 15 Installation unit: mm Diagram 1b. Front View Diagram 2b. Front View Air Inlet Air Outlet Air Outlet Air Inlet 1000 1000 270L iStore 180L iStore iStore - Installation Manual - Aug 2023...
-
Page 16: Multi-System Configuration P16
Trial Running • Switch on the unit using the controller • In the case of any unusual noise, switch the power off and consult your iStore technician • The parameters have been preset to a temperature of 60 degrees Seismic Restraints •... -
Page 17: Intelligent Operation Modes
Vacation Mode For use when away on holidays, enter the date of your return and the smart iStore will reduce usage to the government mandated weekly disinfect cycle only. Vacation mode reduces energy consumption while you are away. - Page 18 Move down or decrease parameter values. Down Important - If the iStore display does not detect activity for 15 seconds the screen will automatically lock to prevent any unwanted changes. To unlock the screen, simply press and hold the power button for 5 seconds.
- Page 19 Shows that the temperature in Main display area or Auxiliary Centigrade display area is in C. Shows that the temperature in Main display area or Auxiliary Fahrenheit display area is in F. Lock Shows that the keyboard is locked. iStore - Installation Manual - Aug 2023...
- Page 20 , hold for 2 seconds and release, the unit will turn off and the LED will display the OFF status. Heating Mode Press , hold for 2 seconds and release. Top tank temperature Bottom tank temperature iStore - Installation Manual - Aug 2023...
- Page 21 “ to select the modes including Hybrid Heating, Eco Mode, Intelligent and Vacation in the standby or running interface. The Federal Government Clean Energy Regulator specifies how the iStore compressor hot water systems must operate in Australia and as such how the computer control operates. Intelligent and Hybrid modes are for overseas models and effectively overridden to Economic (ECO) mode in Australia.
- Page 22 C is the default setting for optimal hot water delivery. Top tank temperature Target temperature Time Press once to check the target temperature. Tap the arrow to reach the desired temperature. Press to confirm cancel, then return to the previous interface. iStore - Installation Manual - Aug 2023...
- Page 23 Press to change the month. and day will flash. change the day. yyyy and full year will flash. and - - yy will flash. change the year. to complete date & time settings iStore - Installation Manual - Aug 2023...
- Page 24 (All modes except Vacation mode ) NOTE: A timer is not mandatory for the iStore operation. Factors such as household demand, time of use, individual supplier peak and offpeak electricity rates, solar panel Feed In Tarrif rates all may influ- ence what heating schedule best suits a household.
- Page 25 16:01 to confirm the timer window operation. For units manufactured prior to January 2023 do not set the second timer to 00:00 ON and 00:00 OFF as the unit will commence heating at midnight every second night. iStore - Installation Manual - Aug 2023...
- Page 26 LCD will return to ON 1, allow the LCD to time out at this point. When the LCD returns to the default state the display will indicate whether 1 or 2 timers are set just above the digital clock, eg 1 timer 2 timers iStore - Installation Manual - Aug 2023...
- Page 27 NOTE: Do not set the second timer to 00:00 ON and 00:00 OFF as the unit will commence heating at midnight every second night. To leave the second time off simply allow the timer setting to time- out after setting the first timer end time. iStore - Installation Manual - Aug 2023...
- Page 28 Functionality Cancelling the Timer Setting Top tank temperature The “ON” , “ 1 “ and whole Timer state time are flashing Pressing more than 2s Press to cancel the timer operation iStore - Installation Manual - Aug 2023...
- Page 29 NOTE: Current date displayed iStore - Installation Manual - Aug 2023...
- Page 30 The electric heater can be turned on when the unit is heating or standby. Press “ “ once to turn on the electric heater and press “ “ again to shut it off. Electric Heater Electric Heater iStore - Installation Manual - Aug 2023...
-
Page 31: Maintenance And Repair P31
How to Drain the Water Heater Warning: Before commencing this procedure, ensure that building occupants are notified to stay clear of the iStore system components and building perimeter as steam or hot water may be discharged from pipes or com- ponents 1. - Page 32 The recommended factory setting is 60º Celsius to prevent the thermal cut-out from operating. The thermal cut-out operation temperature is 85º Celsius. Loosen the screws and open the cover Push the red button Earthing iStore - Installation Manual - Aug 2023...
-
Page 33: Troubleshooting
An 850kPa and 99°C PTR valve is used on the Pressure Temperature Re- iStore water tank, which is located on the side lief Valve (PTR) / Expansion of the water tank and is essential for its safe... - Page 34 2. This Warranty is effective for all iStore Hot Water Systems manufactured and installed after 1st October 2022. 3. If the customer has not paid in full for the iStore Hot Water System then this Warranty does not apply. 4. iStore Hot Water System and its components are covered by a warranty against defective factory parts or workmanship from the date the iStore Hot Water System is installed for the relevant period for such component as outlined in Table 1 - Warranty Periods.
- Page 35 Warranty. See Warranty Table on next page. 15. Any claim under this Warranty must include full details of the defect and/or damage to the iStore System. All claims must be made within one (1) month of detection of the defect.
- Page 36 17. iStore does not warrant any work conducted by a third-party installer of the iStore Hot Water System. 18. This Warranty only applies to the iStore Hot Water System and its components and does not cover any plumbing or electrical associated parts, including but not limited to any parts supplied by any person installing the iStore Hot Water System.
