Summary of Contents for Pro DG Systems AVIATOR Series

  • Page 2: Table Of Contents

    This manual has been designed to help AVIATOR LA 210 A de Pro DG Systems system users from Pro DG Systems to its correctly use and understand its benefits and versatility. Before using the product, carefully read “Precautions” section of this manual (pages 4 - 5).
  • Page 3 Amplifier ………………...……….……………………………………………………………………….. 18 DSP - Software ProDGnet Description …………….……………………………………………………………..…………… 19 Usage guide in PC …….………….……….…………………………………………...…. 20 to 29 Selecting presets in the unit itself ……………………………...…………………….…… 30 - 31 Flight hardware Safety instructions ….………………..……………………………………………………... 32 - 33 Components ………………..…………………………………………………………. 33 - 34 - 35 How to fly the system up ……………….…………………………………………………..

  • Page 4: Precautions

    Precautions Please read, keep and follow all safety and use instructions. Important Safety Instructions. 1. Heed all warnings. 2. Do not overload the box to avoid damage to the speakers. 3. Do not use this product near water. If the box is used outdoors, make sure that no humidity can enter the box.

  • Page 5: Warranty

    Contains small parts which may be a choking hazard. Not suitable for children under age Warranty All the Pro DG Systems products have a 24-month warranty period, which begins from the invoice date of the first purchase. Consult everything relevant to the warranty conditions at Pro DG Systems website: https://prodgsystems.com/20-vc-warranty.html...

  • Page 6: Declaration Of Conformity

    Declaration of conformity Pro DG Systems declares that the product with reference AVIATOR LA 210 A complies with the objectives expressed in the following European Directives: - Low voltage 2014/35/UE. - Electromagnetic compatibility 2014/30/UE. - RoHS 2011/65/UE. About restrictions on the use of certain dangerous substances in electrical and electronic equipment.

  • Page 7: Description

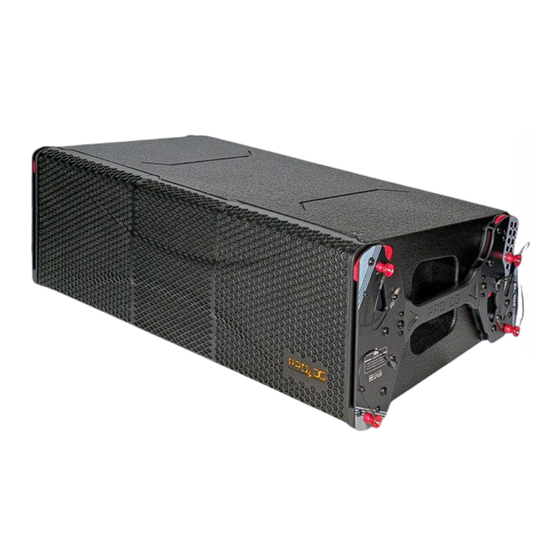

    AVIATOR Series. The new AVIATOR Series from Pro DG Systems has been developed with the purpose of offering the best quality-price ratio on the market. It has a completely modernized appearance, great power and reduced weight thanks to the incorporation of state-of-the-art Lavoce Italiana components.
  • Page 8 Ease Focus prediction software is available. At Pro DG Systems we know the importance for professionals of having a flexible, easily configurable system that guarantees maximum sound performance without the cost of external processors or additional wiring. The joint use of ProDGnet processing software and Ease Focus prediction software allows you to achieve this objective in seconds, achieving: - Remote SPL level control.

  • Page 9: Technical Datasheet

    Easy to transport thanks to its compact, lightweight and ergonomic design, offering a pleasant visual impact too. AVIATOR LA 210 A has all the necessary accessories for transport and complete wiring ready to plug in and work. The perfect solution as main PA, frontfill and sidefill at outdoor events or permanent installation. Ideal for working in live concerts, theaters, coverage under amphitheaters, places of worship, corporate applications and all types of events where high performance and versatility are necessary.

  • Page 10: Architectural Specifications

    24 Bit / 96 KHz. 6 factory presets with on- screen selection button. Pro DG net 1 RS485 input + 1 output link RS485 for network control of the entire system. Connectors 1 x XLR female (input signal), 1x XLR male (output link).

  • Page 11: User Guide. First Steps

    User guide. First steps Turning On / Off Turning on any sound system must be done from back to front. Turn on sources such as CD players first, then the mixer, then the processors, and finally the self-powered loudspeakers. If you have several self-powered loudspeakers, it is advisable to turn them on sequentially one by one.

  • Page 12: Troubleshooting

    User guide. Troubleshooting Problem Cause Solution The unit does not sound. 1. The signal source is not 1. Check the mixer output sending a signal over the indicator to see if the signal cable. is being sent. 2. Defective cable. 2.
  • Page 13 3. Contact your Systems distributor authorized professional to perform the repair. If you have any technical problem or questions about Pro DG Systems products; contact our technical support department at: sat@prodgsystems.com...

  • Page 14: Speakers

    Speakers AVIATOR LA 210 A includes two 10” Lavoce Italiana speakers with neodymium magnet, in charge of reproducing low and medium frequencies. Main characteristics Power handling of 300 W RMS / 600 W program Optimized cooling system Optimized neodymium magnetic circuit 2.5”...

  • Page 15: Compression Driver

    Architectural Compression driver The HF section of the AVIATOR LA 210 A has one 1/4” Lavoce Italiana compression driver with neodymium magnet, in charge of reproducing high frequencies.
  • Page 16 Main characteristics Power handling of 100 W RMS / 200 W program FEM optimized motor, phaseplug and diaphragm 3” edgewound CCA voice coil Titanium diaphragm and polyamide surround State-of-the-art HF design Patented IIS integral input Surface phaseplug 2 Kg weight (per unit) Architectural...

  • Page 17: Horn

    Horn The compression driver of the AVIATOR LA 210 A is coupled to a horn, specifically designed to achieve maximum performance and acoustic quality in high frequencies. Made of fiberglass (BMC) and polyurethane (PU2). The combination of both materials allows obtaining a horn with great resistance and low weight, also providing a perfect blend between...

  • Page 18: Amplifier

    Amplifier AVIATOR LA 210 A has a new state-of-the-art Class-D amplifier module and own DSP, very intuitive to use for easy handling and absolute control. The amplifier has been designed to, in addition to amplifying the unit itself, amplify another passive unit (AVIATOR LA 210 P) in slave mode, thanks to the incorporation of one channel with 1500 W RMS for LF and MF + one channel with 500 W RMS for HF.

  • Page 19: Dsp - Software Prodgnet

    (unit by unit). To operate with ProDGnet software from your PC you will only need: - Download ProDGnet software at Pro DG Systems website (section “Support” > “Software”): https://prodgsystems.com/19-scrpt-software.html Easy to download, all the necessary drivers for installation are included.
  • Page 20 Once the software is downloaded on your PC; create your network of Pro DG Systems systems, to do this connect the Ethernet cabling to the different units; When you start the software, the general menu will be displayed by default. (OVERVIEW);...
  • Page 21 When clicking “Connect” > “Remote mode”, in the top bar; The following dialog box will appear; Allowing connection to the DSP module of each unit connected to the Ethernet network. After pressing “OK” all connected units will be displayed (in green) to the left of the menu;...
  • Page 22 By clicking on the INPUT menu, a 31-band parametric equalizer is displayed, allowing you to select the type of Filter, Frequency, Bandwidth (Q), Gain and Bypass;...
  • Page 23 On the left of the menu, you can manually modify Gain, Mute, Delay, Bypass and input channel selection. To the right of the menu is a noise gate where we find Threshold, Attack, Release and a Bypass of the input noise gate. To apply changes to any of the units connected to the ProDGnet network, simply click on the desired unit.
  • Page 24 Then, the factory stored preset selection menu will be displayed; The meaning of the colors shown next to each preset is as follows: Empty Preset. Preset stored in memory. Preset that we want to appear by default when turning on the unit. Currently selected preset.
  • Page 25 To Import or Export presets individually (preset by preset), from PC to amplifier unit or vice versa, it will necessary to click “Memory” > “PC preset”. The “Export all presets” tab allows exporting all the presets stored on the PC to the unit. The “Import presets package”...
  • Page 26 By having a network of systems connected to each other through Ethernet cabling and RS485 protocol, you have the possibility of creating a group of systems, which allows any change or equalization made to be applied to all the units that are part of the same network. For example, if we have twelve units AVIATOR LA 210 A, when creating a group made up of these units, any change or equalization made will be applied to all units;...
  • Page 27 The following dialog box will appear. Click “OK” button”. Once the previous step has been completed, all the units connected to the network will be displayed on the left of the menu (the group has not been created yet). Then click “Device List” button.
  • Page 28 Next, we will select all the units that will be part of the group and click on the right arrow icon, the units that are displayed in the box on the right are the ones that will be part of the same group;...

  • Page 29: Usage Guide In Pc

    We will press “OK” button, which will cause the following dialog box to appear, in which we can modify the name of the created group, as well as different parameters of it; By pressing “OK” button in the previous step, the group creation process will be completed.

  • Page 30: Selecting Presets In The Unit Itself

    2. Once the main menu is displayed on the LCD screen, we will proceed to unlock the unit, to do this, press the preset selection button for a few seconds; Until the password menu appears; Important: request the password to Pro DG Systems technical support department via email at: sat@prodgsystems.com or to your authorized Pro DG Systems distributor.
  • Page 31 By default, the unit has 6 factory presets. If you have any technical problem or questions about Pro DG Systems products; contact our technical support department at: sat@prodgsystems.com...

  • Page 32: Flight Hardware. Safety Instructions

    Flight hardware. Safety instructions Before flying the system, it is mandatory to take into account the following safety instructions: - Always carry out a visual and functional inspection of the various components before use. In case of doubt about the correct functioning and safety of the components, they must be removed from use immediately.

  • Page 33: Components

    As well as the correct signage of the space in which work is being done. - All accessories used to fly a Pro DG Systems sound system not provided by Pro DG Systems are the responsibility of the user(s).
  • Page 34 FB LA 210 Made of high-strength steel with oven-dried black electrostatic powder paint finish. It allows the raise up of a maximum of sixteen units AVIATOR LA 210 A. It also serves as a fixing base to use the system in stacked format on subwoofers. Measures (height x width x depth): 80 x 905 x 670 mm (3,15 x 35,63 x 26,38 in).
  • Page 35 They have a safety extraction/insertion system through the use of a locking button. Note: the specifications of these components may be changed without prior notice. To be aware of the latest modifications, please consult Pro DG Systems website periodically.

  • Page 36: How To Fly The System Up

    How to fly the system up Important: before flying the system, carefully read the subsection “Safety instructions”, located in the “Flight hardware” section (pages 32 - 33). Remove the locking pins located on the front and rear hardware to release the cams. Pull the cams up and secure them again using the pins.
  • Page 37 Install the flight bar to the box using the fixation pin locks. Then repeat step 2 for the following boxes fixation. The design of the cams included in the rear hardware prevents uncontrolled swinging when disassembling the last box of the array assembly.

  • Page 38: Stack Mode Usage

    Stack mode usage By using the cams built into FB LA 210; Slings If the array is stacked on a subwoofer, it will be necessary to secure it by using slings. In any case, it is not recommended to stack more than 6 AVIATOR LA 210 A units. By using TR LA 210 transport trolley.

  • Page 39: Ease Focus Prediction Software

    SPL and general behavior of the system, in a simple and comfortable way for the user. It is very easy to use and we have training courses for users of Pro DG Systems products. For more information, consult our technical service at: sat@prodgsystems.com...

  • Page 40: Accessories

    Accessories TR LA 210 Transport trolley four units AVIATOR LA 210 A. It has a special polyurea finish resistant to impacts and inclement weather. It has a brake system and slots for fixing it using slings, etc. CV LA 210 Protection cover for four units AVIATOR LA 210 A.
