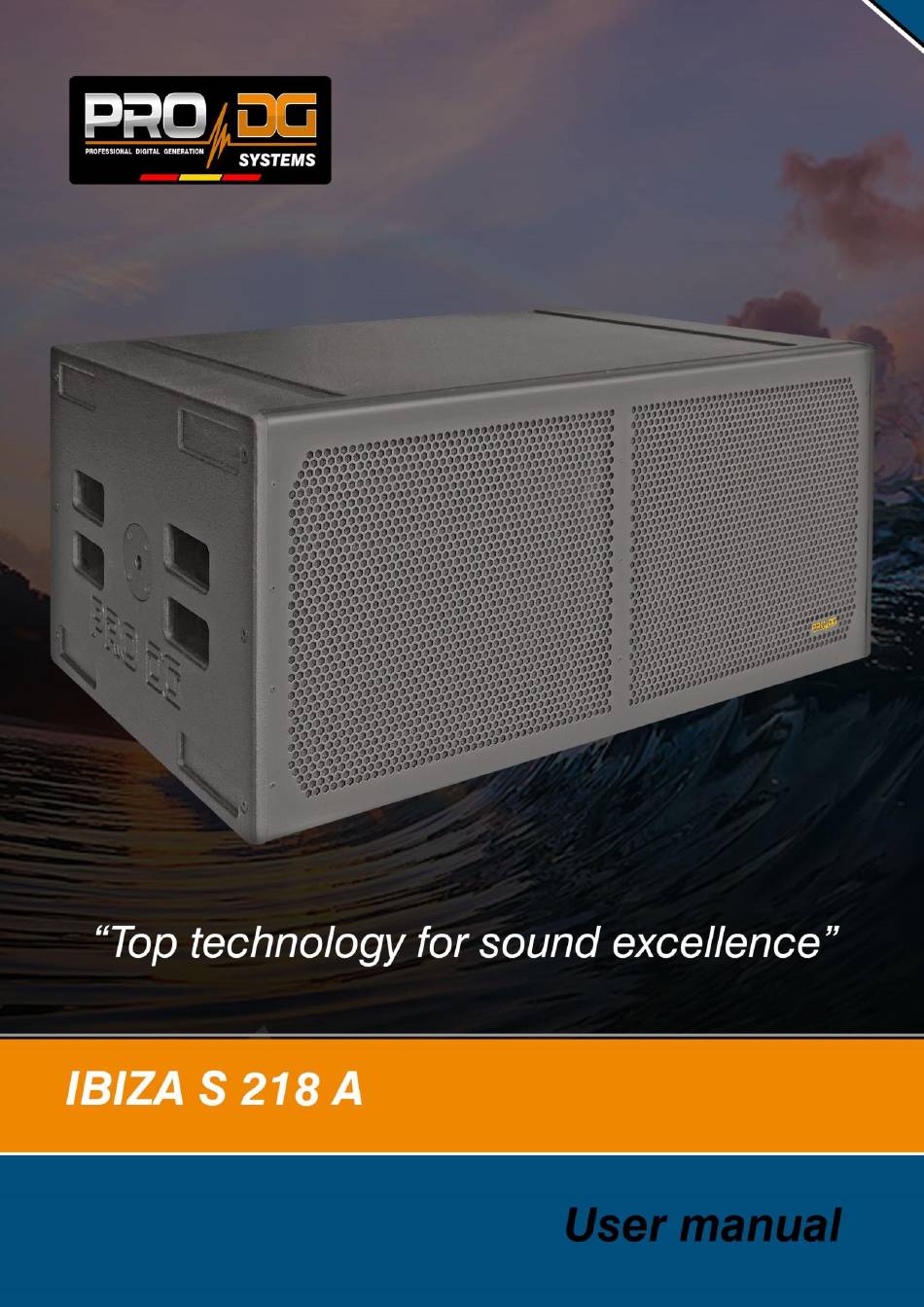

Pro DG Systems IBIZA Series User Manual

Hide thumbs Also See for IBIZA Series:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IBIZA Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pro DG Systems IBIZA Series

Summary of Contents for Pro DG Systems IBIZA Series

  • Page 2: Table Of Contents

    To stay up to date with the latest version of this document, we recommend that you periodically consult Pro DG Systems website. When reselling this product, give this document to the new owner. If you supply Pro DG Systems products, please inform your customers about this document. Index Precautions ………………………………………………………….……..…………….…………… 4 - 5 Warranty …………………………………………………………………...….……………………..……..
  • Page 3 Placement for best performance Description …….….…………………………………….………………………………………… 30 In-block ……….………………………..………………………………...………….………. 30 - 31 L & R Stack ……………………………………………………………………………………….. 31 Reversed Stack ………..…………………………………………….…………………………… 32 End-Fired ………………………………………………………...…….……………………. 33 - 34 In-line cardioid …….…………...……………………………………….……….………….. 35 - 36 In-line horizontal ……………...…………………………………………….………………. 37 - 38 In-arc (virtual and physical) ……..……………………………………….……………………… 39 Ease Focus prediction software .….…..………………………………………………………….…..

  • Page 4: Precautions

    Precautions Please read, keep and follow all safety and use instructions. Important Safety Instructions. 1. Heed all warnings. 2. Do not overload the box to avoid damage to the speakers. 3. Do not use this product near water. If the box is used outdoors, make sure that no humidity can enter the box.

  • Page 5: Warranty

    Contains small parts which may be a choking hazard. Not suitable for children under age Warranty All the Pro DG Systems products have a 24-month warranty period, which begins from the invoice date of the first purchase. Consult everything relevant to the warranty conditions at Pro DG Systems website: https://prodgsystems.com/20-vc-warranty.html...

  • Page 6: Declaration Of Conformity

    Declaration of conformity Pro DG Systems declares that the product with reference IBIZA S 218 A complies with the objectives expressed in the following European Directives: - Low voltage 2014/35/UE. - Electromagnetic compatibility 2014/30/UE. - RoHS 2011/65/UE. About restrictions on the use of certain dangerous substances in electrical and electronic equipment.

  • Page 7: Description

    IBIZA Series. The new IBIZA Series represents the natural evolution of the previous and prestigious GT and GTA series from Pro DG Systems, now with a completely modernized appearance, with much more power and less weight thanks to the incorporation of new state-of-the-art Beyma neodymium components.
  • Page 8 The joint use of ProDGnet processing software and Ease Focus prediction software allows you to achieve this objective in seconds, achieving: - Remote SPL level control. - Frequency response uniformity for the entire public. - Digital direction of sound projection in listening areas. - Reduction of the sound pressure level in areas that should be avoided, such as the stage, walls, or unused balconies.

  • Page 9: Technical Datasheet

    Technical datasheet IBIZA S 218 A Power handling 3200 W RMS / 6400 W program / 12800 W peak. Maximum SPL Calculation 1m / 136 dB continuous / 139 dB program / 142 dB peak. Nominal impedance 4 Ohm. Frequency range 30 - 125 Hz.

  • Page 10: Architectural Specifications

    * Disrespect the suggested frequency cuts-off on the different ways may cause components breakage. Architectural specifications All measures expressed in millimeters (mm).

  • Page 11: User Guide. First Steps

    User guide. First steps Turning On / Off Turning on any sound system must be done from back to front. Turn on sources such as CD players first, then the mixer, then the processors, and finally the self-powered loudspeakers. If you have several self-powered loudspeakers, it is advisable to turn them on sequentially one by one.

  • Page 12: Troubleshooting

    User guide. Troubleshooting Problem Cause Solution The unit does not sound. 1. The signal source is not 1. Check the mixer output sending a signal over the indicator to see if the signal cable. is being sent. 2. Defective cable. 2.
  • Page 13 3. Contact your Systems distributor authorized professional to perform the repair. If you have any technical problem or questions about Pro DG Systems products; contact our technical support department at: sat@prodgsystems.com...

  • Page 14: Speakers

    Speakers IBIZA S 218 A includes two 18” Beyma speakers with neodymium magnet. Main characteristics Power handling of 1600 W RMS / 3200 W program Exclusive cooling system with Malt Cross technology * Optimized neodymium magnetic circuit 4” DUO Double Layer Input / Output Copper Voice Coil NCR exclusive membrane (Neck Coupling Reinforcement) 9,5 Kg weight (per unit) Optimized to deliver great LF range performance...
  • Page 15 Architectural * Malt Cross technology allows the speaker to handle higher powers with a given coil diameter, reducing weight and increasing sensitivity, while maintaining a total output SPL equivalent to a bigger and heavier speaker. Malt Cross technology is an internal forced convection circuit that allows the working temperature of the voice coil to be reduced and, likewise, acts as a demodulator ring, linearizing the inductance of the transducer.

  • Page 16: Amplifier

    Amplifier IBIZA S 218 A has a new state-of-the-art Class-D amplifier module and own DSP, very intuitive to use for easy handling and absolute control. Incorporates two channels with 2000 W RMS @ 8 Ohm. Input type: balanced. Input impedance: 20000 ohms. Input sensitivity: 4.9 V (+16 dBu).

  • Page 17: Dsp - Software Prodgnet

    (unit by unit). To operate with ProDGnet software from your PC you will only need: - Download ProDGnet software at Pro DG Systems website (section “Support” > “Software”): https://prodgsystems.com/19-scrpt-software.html Easy to download, all the necessary drivers for installation are included.
  • Page 18 Once the software is downloaded on your PC; create your network of Pro DG Systems systems, to do this connect the Ethernet cabling to the different units; When you start the software, the general menu will be displayed by default. (OVERVIEW);...
  • Page 19 When clicking “Connect” > “Remote mode”, in the top bar; The following dialog box will appear; Allowing connection to the DSP module of each unit connected to the Ethernet network. After pressing “OK” all connected units will be displayed (in green) to the left of the menu;...
  • Page 20 By clicking on the INPUT menu, a 31-band parametric equalizer is displayed, allowing you to select the type of Filter, Frequency, Bandwidth (Q), Gain and Bypass;...
  • Page 21 On the left of the menu, you can manually modify Gain, Mute, Delay, Bypass and input channel selection. To the right of the menu is a noise gate where we find Threshold, Attack, Release and a Bypass of the input noise gate. To apply changes to any of the units connected to the ProDGnet network, simply click on the desired unit.
  • Page 22 Then, the factory stored preset selection menu will be displayed; The meaning of the colors shown next to each preset is as follows: Empty Preset. Preset stored in memory. Preset that we want to appear by default when turning on the unit. Currently selected preset.
  • Page 23 To Import or Export presets individually (preset by preset), from PC to amplifier unit or vice versa, it will necessary to click “Memory” > “PC preset”. The “Export all presets” tab allows exporting all the presets stored on the PC to the unit. The “Import presets package”...
  • Page 24 By having a network of systems connected to each other through Ethernet cabling and RS485 protocol, you have the possibility of creating a group of systems, which allows any change or equalization made to be applied to all the units that are part of the same network. For example, if we have twelve units IBIZA S 218 A, when creating a group made up of these units, any change or equalization made will be applied to all units;...
  • Page 25 The following dialog box will appear. Click “OK” button”. Once the previous step has been completed, all the units connected to the network will be displayed on the left of the menu (the group has not been created yet). Then click “Device List” button”.
  • Page 26 Next, we will select all the units that will be part of the group and click on the right arrow icon, the units that are displayed in the box on the right are the ones that will be part of the same group;...

  • Page 27: Usage Guide In Pc

    We will press “OK” button, which will cause the following dialog box to appear, in which we can modify the name of the created group, as well as different parameters of it; By pressing “OK” button in the previous step, the group creation process will be completed.

  • Page 28: Selecting Presets In The Unit Itself

    2. Once the main menu is displayed on the LCD screen, we will proceed to unlock the unit, to do this, press the preset selection button for a few seconds; Until the password menu appears; Important: request the password to Pro DG Systems technical support department via email at: sat@prodgsystems.com or to your authorized Pro DG Systems distributor.
  • Page 29 By default, the unit has 6 factory presets. If you have any technical problem or questions about Pro DG Systems products; contact our technical support department at: sat@prodgsystems.com...

  • Page 30: Placement For Best Performance

    Placement for best performance Generally, the construction of a subwoofer system generates omnidirectional sound dispersion, incorrect placement of subwoofer systems can generate undesirable effects on sound dispersion, such as cancellations (passages), excessive summation in the rear, poor coverage in the public area, etc.

  • Page 31: L & R Stack

    L & R stack subwoofers configuration Using 3 subwoofers in stack format The results are very similar to those obtained with the block configuration are obtained. We gain some dB, but still had no control at the rear. Not having control over the rear generates more dB in the audience area, but it will bother your stage colleagues.

  • Page 32: Reversed Stack

    Reversed stack configuration Placing three subwoofers in a stack format, with one of its units reversed. Next, we will place the measurement microphone on the back, with the subwoofer in reversed position disconnected and the other two subwoofers on work, we will take a phase reference.

  • Page 33: End-Fired

    End-Fired configuration Placing four in-line subwoofers, one after the other. Although it is not a cardioid configuration, it is directional, producing attenuation in the rear and quite a bit in the front. The physical separation distance between subwoofers will be determined by the key frequency.
  • Page 34 Result of our configuration. Completely matched in phase Lobe behavior after applying the electronic delay As a result, in the rear part we obtain a large sum of constructive frequencies as all the sources are in 90º phase (summation), on the contrary in the rear part we have the four units in 180º...

  • Page 35: In-Line Cardioid

    In-line cardioid configuration Using two in-line subwoofers. This configuration is formed with two sources spaced ¼ of the wavelength of the key frequency that we select. It is necessary to be clear about this concept; two parallel signals but with different paths, at the same point produce comb filters.
  • Page 36 What happen? Total cancellation of destructive frequencies. By simply reversing the polarity of the rear sub we once again have summation or constructive frequencies on the front. Since the rear sub is physically distanced 90º from the front and another 90º electronically; 90º - 90º...

  • Page 37: In-Line Horizontal

    In-line horizontal configuration Placing eight subwoofers besides to each other. This configuration is based on the theory of Harry F. Olson published in his book “Acoustical Engineering” in which it is mentioned that; placing two speakers at a distance equal to or less than half the wavelength of the upper cut-off frequency will create a highly directional forward lobe of energy.
  • Page 38 Once the subs are placed 1.70 m from each other, we will see the behavior of different frequencies to different degrees, taking the central axis as a reference. To observe the existing phase relationship in degrees we will use the formula; D x F x 360 / 340 D;...

  • Page 39: In-Arc (Virtual And Physical)

    In-arc configuration As with the configuration of eight subwoofers in-line horizontal, the difference is that we are going to sacrifice pressure in the central part, in exchange for gaining general coverage and reducing the pressure level on the stage. Taking the previous example as a starting point; we place the subwoofers at a distance of 1.70 m from each other and apply the following delays;...

  • Page 40: Ease Focus Prediction Software

    SPL and general behavior of the system, in a simple and comfortable way for the user. It is very easy to use and we have training courses for users of Pro DG Systems products. For more information, consult our technical service at: sat@prodgsystems.com...

  • Page 41: Hardware

    Allowing it to work together with satellite unit/s in combo format. Wheels The rear side of IBIZA S 218 A has points for fixing wheels, thus facilitating its handling and transportation. Wheels are not included, possibility of being supplied by Pro DG Systems as optional equipment.

  • Page 42: Accessories

    Accessories TR S 218 Transport trolley for two or three units IBIZA S 218 A. It has a special polyurea finish resistant to impacts and inclement weather. It has a brake system and slots for fixing it using slings, etc. CV S 218 Protection cover for two units IBIZA S 218 A.

This manual is also suitable for:

Ibiza s 218 a
