SKY04O PRO/04X PRO
FPV Goggle USER MANUAL
V1.5
2024.01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SKY04O and is the answer not in the manual?

Questions and answers

Related Manuals for SkyZone SKY04O

Summary of Contents for SkyZone SKY04O

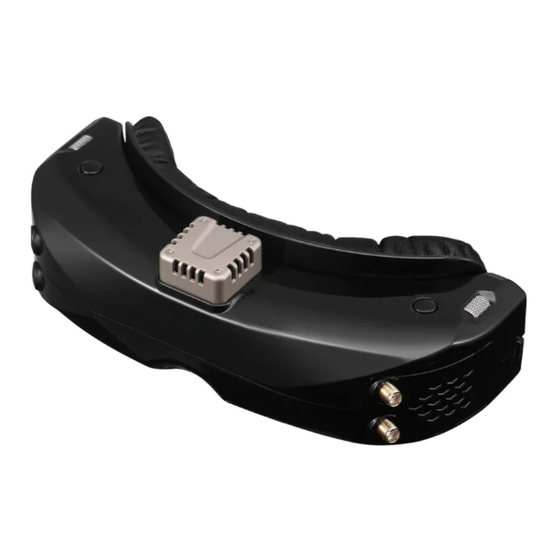

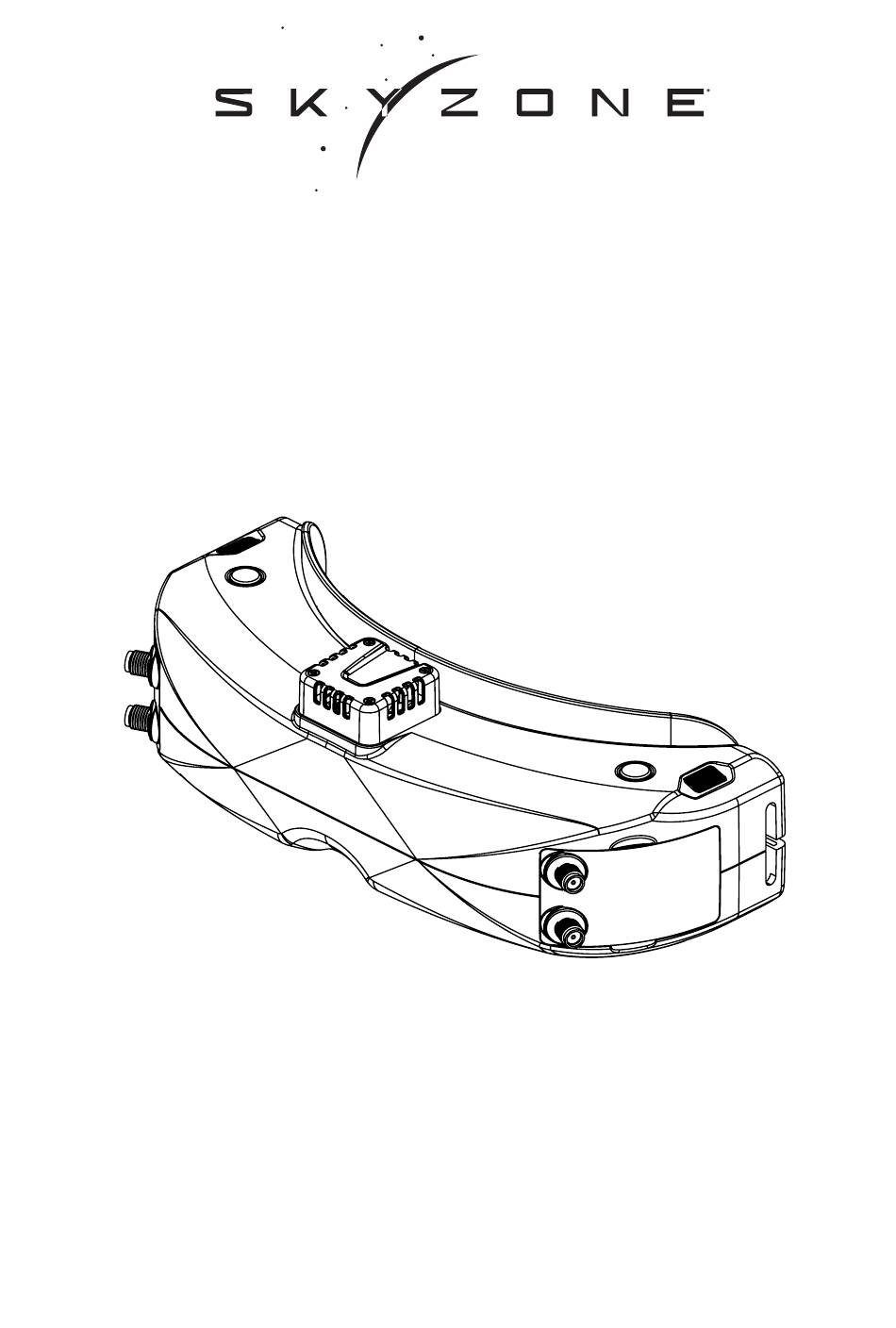

  • Page 1 SKY04O PRO/04X PRO FPV Goggle USER MANUAL V1.5 2024.01...

  • Page 2: Specifications

    Specifications SKY04O SKY04OPRO SKY04XPRO Screen OLED OLED OLED Resolution 1024*768 1280*720 1920*1080 FileldofView AspectRatio 4:3/16:9 FocusRange -6〜+2 IPDRange 58~71mm Receiver 5.8Ghz48CHSteadyviewReceiver 60FPSH264 60FPSMJPEG 60FPSH264 VoltageInput 2〜6SLiPo HDMIIN 60FPS 720P100FPS Language 10Languages HeadTracker 3-axisAccelerometer,3-axisgyroscope BAND/CHANNELtable BAND/CH table BAND/CH CH 1 5865M...
  • Page 3 Diagram 1.DC PORT(5.5*2.1mm) 2.Head tracker port 3.USB C port 4.IPD Slider 5.Focus adjustment wheel 6.HDMI input 7.SD card slot 8.AV IN/OUTPUT 9.Earphone jack 10.Volume/ Mode 11.Record/Delete 12.System Menu/Headtracker 13.CH/BAND/Search 14.Power/Fan VIDEO AudioR AudioL PPM OUT Headtracker Jack Pin-out AV Jack Pin-out...
  • Page 4 Introduction The SKY04 Series is First skyzone goggle with focus adjustment, the high resolution screen have vivid color and high contrast ration, pilot can see more details in the racing . With steadyview receiver , the receiver merge two signals to one, avoid image tearing and rolling, make image more stable and clear in challenging condition.
  • Page 5 DO NOT EXPOSE THE LENS DIRECT TO SUNLIGHT, OTHERWISE THE SCREEN WILL BURN IN. Quick Start Guide 1.Install the antenna and faceplate. 2.Use power cables to connect battery to the goggles, goggles can power by 2~6cell lipo battery, hold the power button to turn on. 3.Focus adjustment: move the focus adjustment wheel to focus, close one eye to adjust the focus, you can pop up the OSD menu as the template, when the image is clear, repeat the process with the other eye.

  • Page 6: Mode Menu

    MODE MENU · Short press the left wheel to pop up mode menu. · RF normal: this mode is normal 48 CH receiv mode. · RF Racing: this mode will make receiver only work on RaceBand. · RF Third-Party: in this mode, the goggles button cant control the external receiver, also the OSD of the goggles cant read the band/channel of the receiver.

  • Page 7: System Menu

    <Auto&Follow> on, the DVR will auto start recording when video signal is on, and stop recording after 30s when signal is cut, if signal is on again, DVR will start recording again. <Follow> Press the REC button to manully start recording，DVR will stop recording after 30s when signal is cut, but it will auto start recording when signal is on.

  • Page 8: Firmware Update

    Firmware Update Goggles the goggles have 3 different hardware due to global chip shortage, before flashing the firmware, user must check their hardware version of the goggles in the system menu. V1 orignail V2 60FPS DVR, if user bought the 60FPS DVR kit, the V1 goggles will upgrade to V2, and firmware also need flash to V2.

This manual is also suitable for:

Sky04o proSky04x pro
