Summary of Contents for SkyZone SKY04L

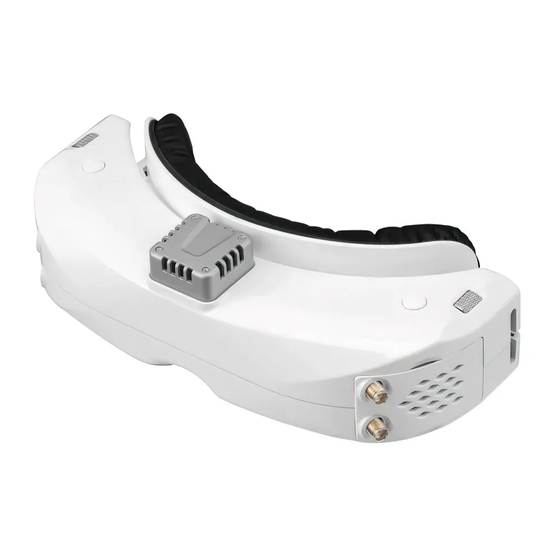

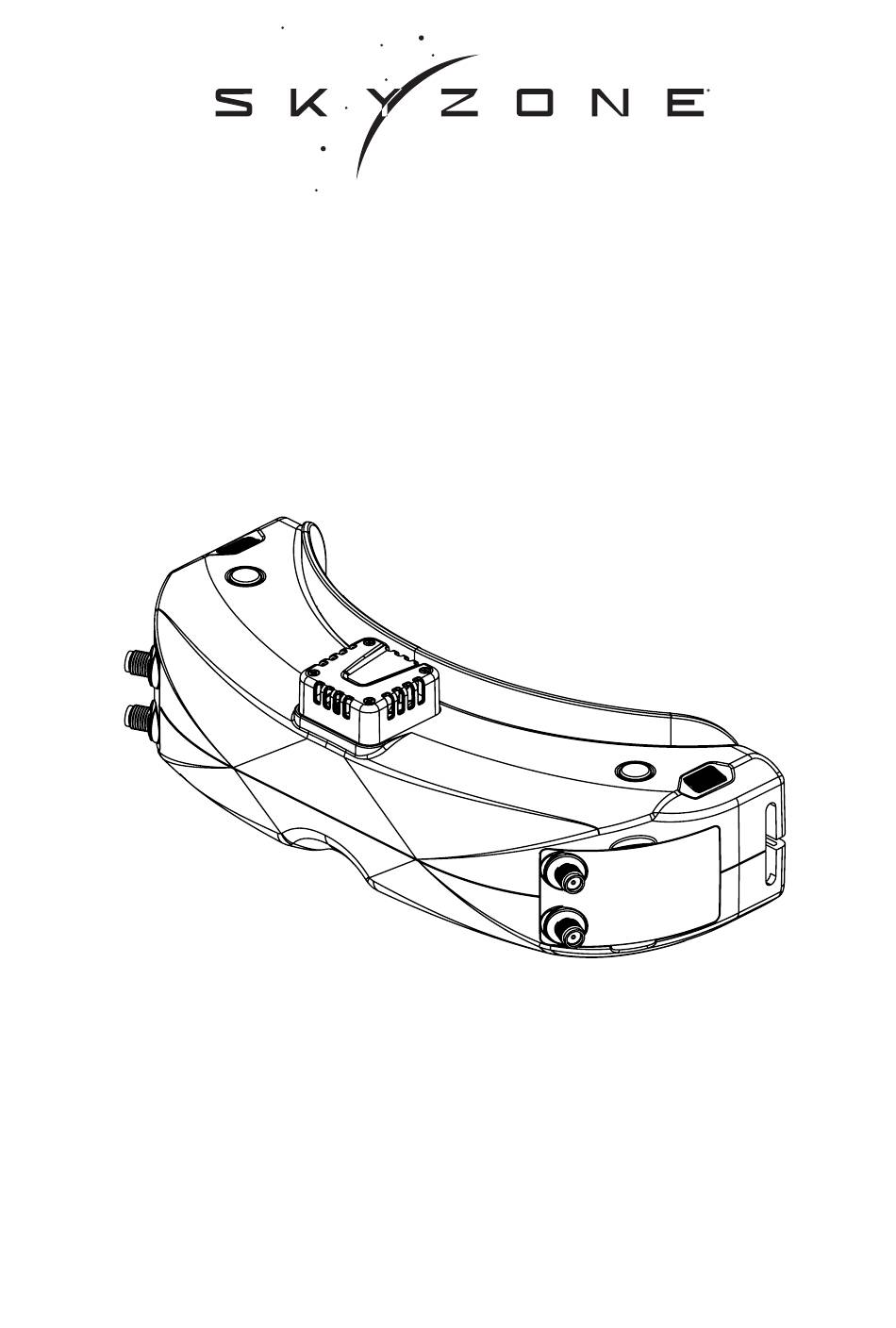

- Page 1 SKY04L LCOS FPV Goggle USER MANUAL V1.0 202103...
- Page 2 Specifications Specifications SKY04L Screen LCOS Resolution 1280X960 FOV（Diagonal） 39° Aspect Ratio 4:3/16:9 Focus -6~+6 adjustable Interpupillary distance (IPD) 58-71mm Receiver 5.8Ghz 48CH SteadyView Receiver Language 10 Languages Power Supply DC 6.5-25.2V/USB 5V Power Consumption 720mA at 12V H264, 60fps,MOV 6Mbps, SD Card support up to 128Gb...
- Page 3 Diagram 1.DC PORT(5.5*2.1mm) 2.Head tracker port 3.USB C port 4.IPD Slider 5.Focus adjustment wheel 6.HDMI input 7.SD card slot 8.AV IN/OUTPUT 9.Earphone jack 10.Volume/ Mode/Drone Finder 11.Record/Delete 12.System Menu/Headtracker 13.CH/BAND/Search/Brightness 14.Power/Fan VIDEO AudioR AudioL PPM OUT Headtracker Jack Pin-out AV Jack Pin-out...
- Page 4 Introduction The SKY04L is lite version(also LCOS version) of SKY04 series. with focus adjustment, 1280*960 high resolution LOCS screen , the screen have vivid color , pilot can see more details in the racing . With steadyview receiver , the receiver merge two signals to one, avoid image tearing and rolling, make image more stable and clear in challenging condition.
- Page 5 DO NOT EXPOSE THE LENS DIRECT TO SUNLIGHT, OTHERWISE THE SCREEN WILL BURN IN. Quick Start Guide 1.Install the antenna and faceplate. 2.Use power cables to connect battery to the goggles, goggles can power by 2~6cell lipo battery, hold the power button to turn on. 3.Focus adjustment: move the focus adjustment wheel to focus, close one eye to adjust the focus, you can pop up the OSD menu as the template, when the image is clear, repeat the process with the other eye.
- Page 6 PLAYBACK · In playback mode, roll right wheel to choose the DVR, short press right wheel to play and pause . · Left wheel to adjust the volume. · When playing the DVR, roll the right wheel to fast forward or fast backward. ·...
- Page 7 ·If the power has been suddenly disconnected in the video recording process, the DVR will be damaged. The goggles have repairing function. After entering into the Playback mode, the last DVR file will be automatically checked. If it has been damaged, the DVR file will be automatically repaired. Display ·...
- Page 8 Firmware Update Upgrade Firmware Goggles 1,Connect goggles to the computer. 2,Hold the left wheel then turn on the goggles, the usb cable will power the goggles, release the left wheel, computer will automatically install the driver , computer will show a new removable storage . 3, Copy the Firmware(A/B) files to stortage.
