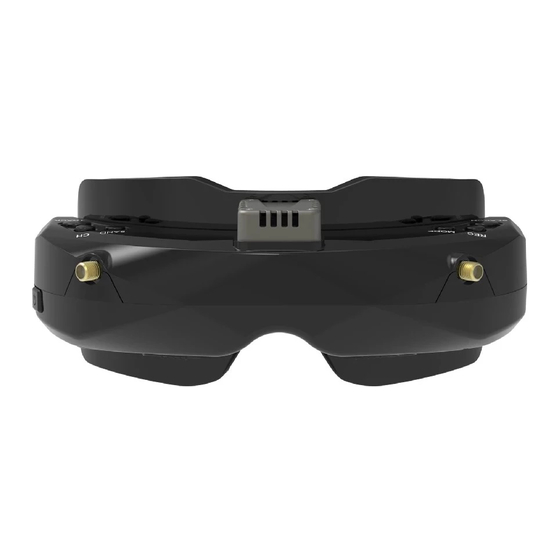

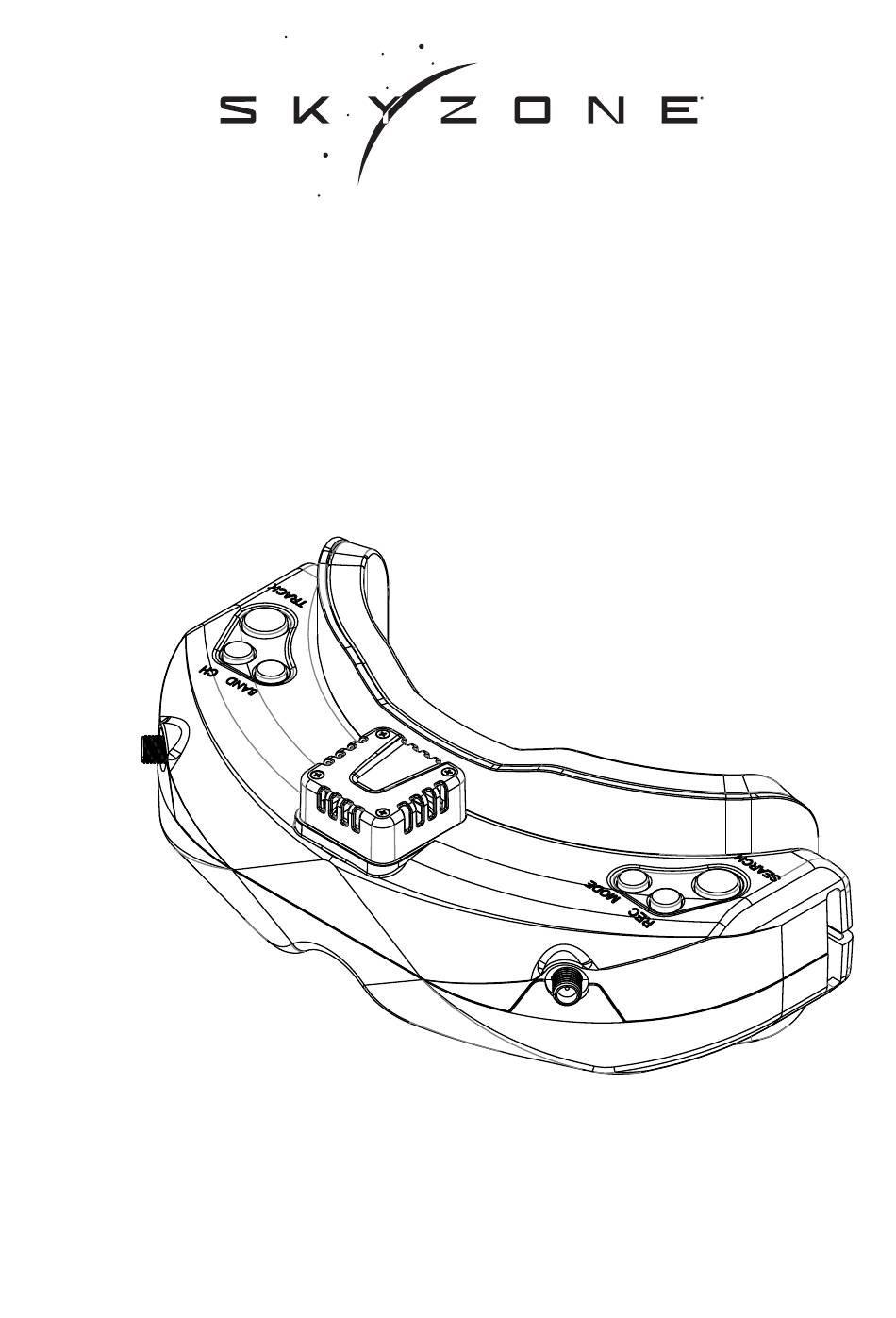

  • Page 1 SKY02O OLED FPV Goggle USER MANUAL V1.0 202101...
  • Page 2 Specifications Specifications SKY02O Screen OLED Resolution 640X400 FOV(Diagonal) 29° Interpupillary distance (IPD) 59-69mm Receiver Build in SteadyView Receiver Language Chinese/English Power Supply DC 6.5-25.2V Power Consumption 500mA at 12V MJPEG, 30fps, AVI, SD Card support up to 64Gb Head Tracker...
  • Page 3 Diagram 1.Search/Diversity and Mix swich 2.Record/OK 3.Mode/Back 4.BAND/UP 5.CHANNEL/DOWN 6.Menu/Headtracker/Delet 7.Head tracker port 8.HDMI input 9.AV input 10.USB Port 11. AV output 12.SD card slot 13.Earphone jack...
  • Page 4 Introduction The SKY02O is upgrade version of classic SKY02 series, with 640*400 high OLED screen have vivid color and high contrast ration, pilot can see more details in the racing . With steadyview receiver , the receiver merge two signals to one, avoid image tearing and rolling, make image more stable and clear in challenging condition.
  • Page 5 DO NOT EXPOSE THE LENS DIRECT TO SUNLIGHT, OTHERWISE THE SCREEN WILL BURN IN. Quick Start Guide 1.Install the antenna and faceplate. 2.Use power cable to connect battery and the goggles, Goggles can power by 2~6cell lipo battery, hold the power button to turn on. 3.Insert diopters if needed.
  • Page 6 MODE MENU · Press the Mode to pop up mode menu. press again to quit menu. · Use CH and BAND button to navigate, Rec button to select. · RF normal: this mode is normal 48 CH receiv mode. · RF Racing: this mode will make receiver only work on RaceBand. ·...
  • Page 7 and stable as long as possible. When hearing the sound of a "beep", the initialization is done. · Hold menu button to reset the PPM signal to the center, goggles will beep when press the button. · In menu, you may set PPM channels . ·...
  • Page 8 brightness may cause a slight brightness drop in screen. · OLED Sleep MODE: To prevent OLED burn out, the goggles have OLED sleep mode, The sleep mode can be set in the menu( 1minute 3minutes 5 minutes, default 3 minutes.) When sleep mode is enabled the goggles will detect the movement of the goggles (via headtracker gyro), when the goggles stay still to the preset time , the buzzer will beep , after 10 seconds, the goggles will switch to sleep mode , the oled screen will turn off, move the goggles to quit OLED sleep mode.
