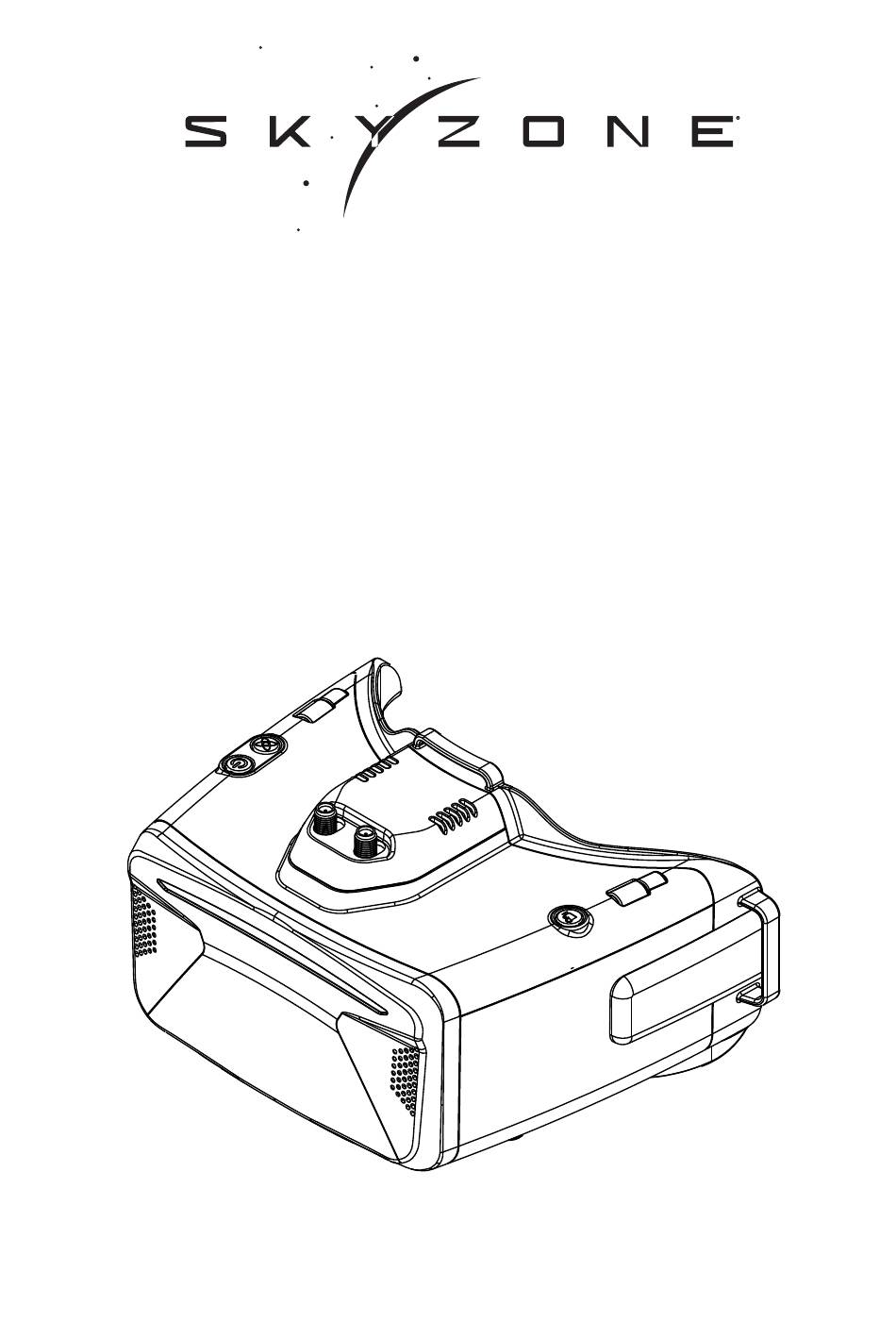

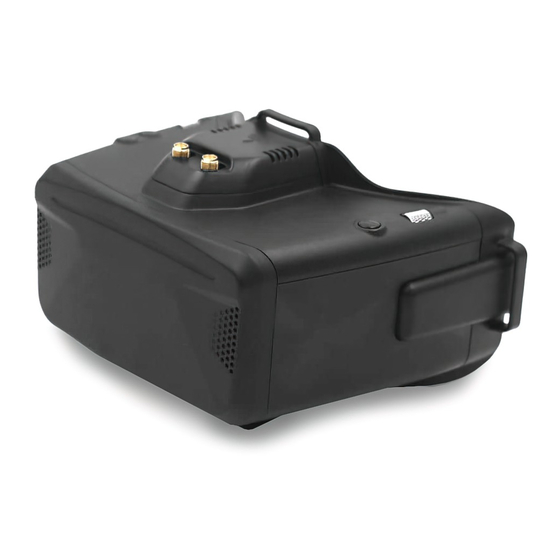

- Page 1 COBRA User Manual V1.3 202011...
-
Page 2: Specifications
Specifications Model Cobra X Cobra S Screen Resolution 1280X720 800X480 FOV(Diagonal) 50° 50° Aspect Ratio 4:3/16:9 16:9 Receiver 5.8Ghz 48 CH RapidMix Receiver 5.8Ghz 48 CH RapidMix Receiver Language 10 Language English/Chinese Power Supply 1Cell 18650/DC 6.5-25.2V/USB 5V 1Cell 18650/DC 6.5-25.2V/USB 5V Power Consumption 12V 0.63A 5V 1.5A... - Page 3 Diagram 1.Power/Fan 2.System Menu/Headtracker reset 3.CH/BAND/Search 4.Record/Delete 5.Mode 6.USB C por t 7.3.5mm Head tracker por t 8.DC PORT(5.5*2.1mm) 9.SD card slot 10.AV IN/OUTPUT 11.HDMI input VIDEO AudioR AudioL PPM OUT Headtracker Jack Pin-out AV Jack Pin-out...
- Page 4 Introduction The SKYZONE Cobra X * is a FPV goggle with 1280*720 high resolution LCD screen , the screen have vivid color and high Luminance , pilot can see more details in the racing . With SteadyView receiver , the receiver merge two signal to one, avoid image tearing and rolling when signal is weak, make image more stable and clear in challenging condition.
-
Page 5: Mode Menu
DO NOT EXPOSE THE LENS DIRECT TO SUNLIGHT, OTHERWISE THE SCREEN WILL BURN IN. Quick Start Guide 1.Install the receiver and antenna. 2.Plug the battery into battery bay or use power cables to connect battery to the goggle, goggle can power by 2~6cells lipo battery, hold the power button to turn on. - Page 6 ttings · Short press right button to pop up or quit setting menu. · Roll right wheel to navigate, press the right whee l to select . Head Tracking · The head tracking button is on the right side of the goggles. ·...
-
Page 7: System Menu
DISPLAY · In Display setting menu, customer can set the topbar OSD time, turn off the time off, the OSD always on. · In Display menu, customer can set the RSSI icon: icon + percentage, Icon, Percentage, disable, also adjust the vertical position of the RSSI. ··... -
Page 8: Firmware Upgrade
Firmware Upgrade Goggles 1,Connect goggles to the computer. 2,Hold the left wheel when turn on the goggles, the usb cable will power the goggles, release the left button, computer will automatically install the driver , computer will show a new removable storage . 3, copy the Firmware File to folder(Not the SD card).
Need help?
Do you have a question about the Cobra X and is the answer not in the manual?
Questions and answers
How to get the Frequency, Band, Channel and Rssi screen to go away after getting the Quads video? For me, once the Quad's video is found, the Band etc screen stays on the screen.
