Summary of Contents for Mytee CSB2026

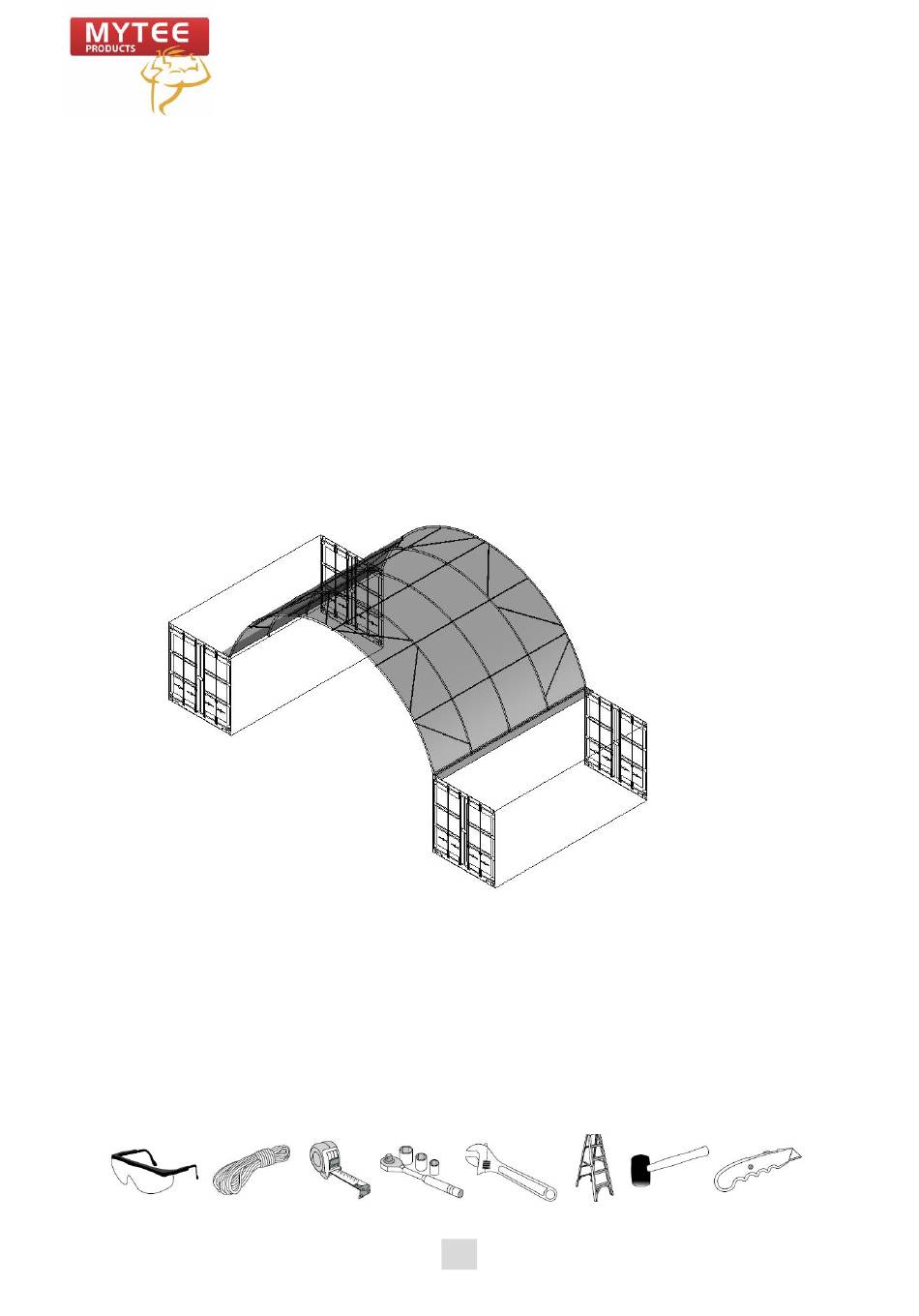

- Page 1 Container Shelter Model 2620 CSB2026 W8.0xL6.0xH3.0m (1.5m arch space) Assembly Instructions RECOMMENDED TOOLS...
-
Page 2: Recommended Tools
RECOMMENDED TOOLS Equipment List Speed Wrench 22#.23#.24# Hammer (30lb) Rope (12#) Long Tape (50m) Hammer Drill*1 Lifter*2 Crane*1 Forklift*1 Protective equipment... -
Page 3: Safety Precautions
YOU MUST READ THIS DOCUMENT BEFORE YOU BEGIN TO ASSEMBLE THE SHELTER. Thank you for purchasing our shelter. When properly assembled and maintained, this product will provide years of reliable service. These instructions include helpful hints and important information needed to safely assemble and properly maintain the shelter. - Page 4 Single Truss Container Shelter SS262010R-5(W8*L6*H3.0m) Part Code Description Drawings Q'ty Top arch pipe Middle bent arch pipe Shoulder bent pipe Purlins Bracing pipe Mount rail-1 Mount rail-2 Mount rail-3 Tension pipe connection plate for base rails Angle seat Corner Clamps for fixing base rails Channel steel clamps Φ60 clips with M10*50 bolt...
- Page 5 M8*70mm bolt for arches pipe connection 80+10 M10*80mm carriage bolt for purlins 25+5 connection M12x100 bolt for square pipe connection 16+4 32 plastic plug 1.5'' ratchet with tension straps 75CM Nylon zipper for roof cover 6# ropes corner ratchet Tech screw M8*25 for fixing the corner ratchet Tech screw M8*40 +M12 for channel clamps 20+4 Roof cover...
- Page 6 CONTAINERS LOCATION: Note: The containers must be firmly fastened to the ground before installation The distance between 2 x 20ft GP container is 25’8’’ , make sure they are level and square to each other. The diagonal distance from corner point to opposite corner point is 32’6’.
- Page 7 Instruction for steel frame 1. Connect the square steel tube base rails No.6, No.7, No.6A on left and right container roofs. Using the connection plates #9 with bolt M12x100 with #16 with 2pcs WASHERS. Two kinds of methods to fix base rails as the below drawings for option: Option A: Using base rail clamps No.12 with tech screws No.23 to fix the square tube rails to the top of container without any welding works as the below figure, the two ends of base rails is fixed to the casting corners of container with No.11 corner clamps.
- Page 8 2. Connect the Bent Joist (No.1, 2, 3) by bolt M8x70 (No.14) to be one arch. Put one end of the arch into the mount rail spigot and fasten it by bolt M8x70 (No.14), then try to put the other end to opposite rails.
- Page 9 Purlins and Bracing Tubes Installation 3. When 2 arches are in place, connect purlins (No.4) between them by carriage bolt M10x80 (No.15). Please note the direction of the bolt, do not leave the shaft outside where the fabric will rest. By this way, one arch and purlins between it in turn, frames are installed. 4.
- Page 10 Instruction for Roof Cover Attached NOTE: DO NOT install the cover onto the frame of the dome shelter in high wind conditions. A slight breeze is the most advantageous for cover installation. To take advantage of the breeze, pull the cover up over the arches with the breeze blowing in the cover like a sail filled with air.
- Page 11 1. Put the cover EVENLY, CAREFULLY AND SLOWLY on the frame. Insert the Tension Tubes (No.8) into the cover pipe pockets and loosely secure the strap (No.18) in the winch on square tube rails. DO NOT TIGHTEN. Adjust the cover so that it is square and evenly centered on the frame.
