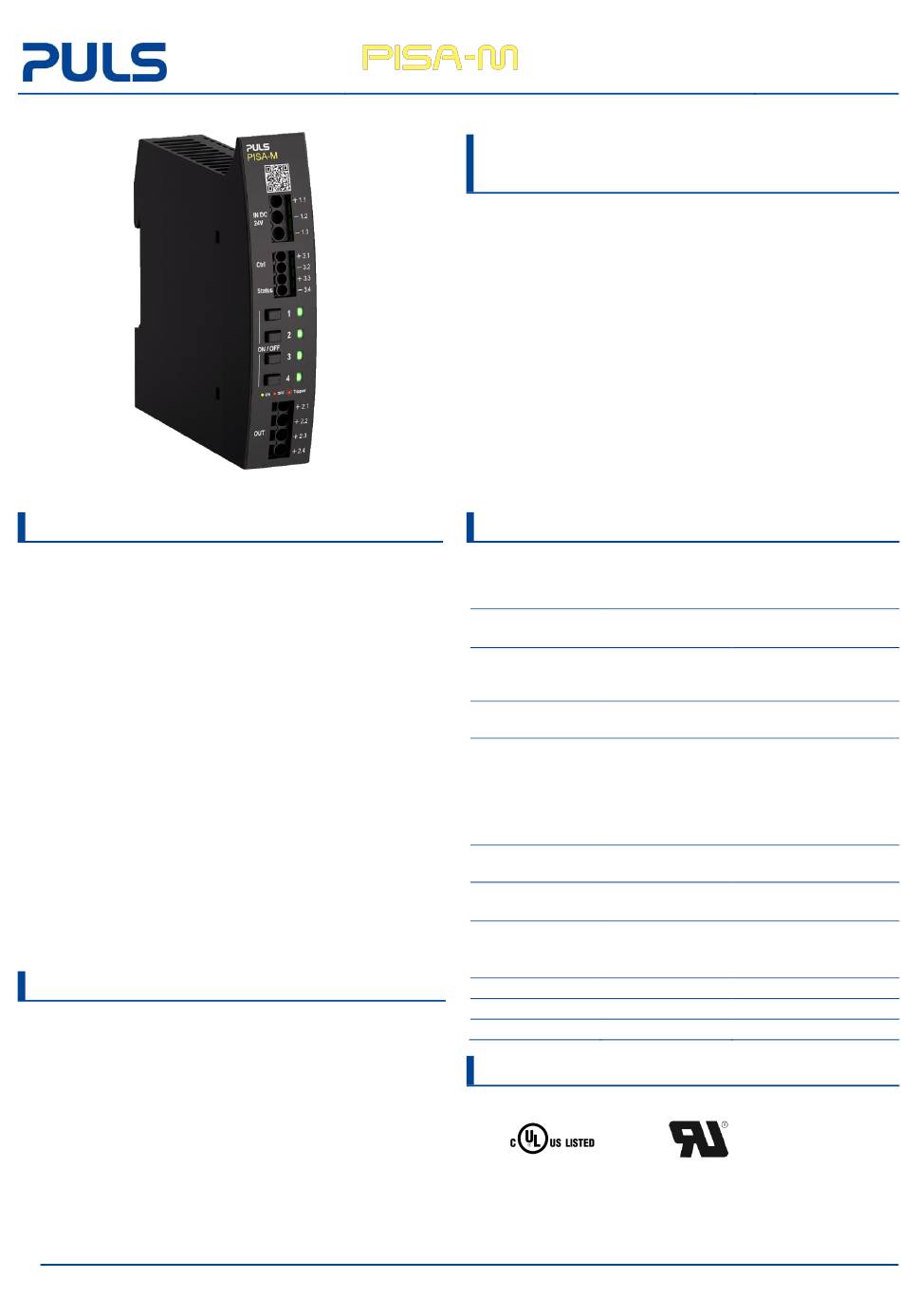

Puls PISA-M-40 Series Manual

Electronic circuit breaker

Advertisement

Quick Links

P
D
RODUCT
ESCRIPTION
The PISA-M devices are miniature four-channel protection modules
for 24 V and 12 V systems providing all benefits of electronic circuit
breakers in a tiny DIN rail mountable housing: Fully adjustable
current tripping setpoints for four independent outputs in one
device – including selection of tripping characteristic combined
with different options for remote signaling and communication,
enabling remote configuration, monitoring and control.
The PISA-M supports multiple, user-selectable, signaling and
communication methods, allowing the selection of simple alerts
and reset function.
All PISA-M devices are equipped with push-in terminals, which are
optimised for automated wiring and allow fast and safe installation.
O
N
RDER
UMBERS
Electronic Circuit Breaker
PISA-M-4ADJ
4 adjustable output channels 1-8 A
PISA-M-402
4 x 2 A fixed output channels
PISA-M-404
4 x 4 A fixed output channels
PISA-M-406
4 x 6 A fixed output channels
PISA-M-408
4 x 8 A fixed output channels
Accessory
ZM3.Wall
Wall mounting bracket
All parameters are specified at 24 Vdc, 4 x 5A, +25 °C ambient temperature and a 5 minutes run-in time unless otherwise noted.
Jun. 2024 / Rev. 1.1 DS-PISA-M
E
LECTRONIC
4
X
4 current controlled outputs
Fully adjustable and fixed output current versions
Selective tripping of overloaded channels
Compatible even with large capacitive loads
24 V and 12 V operation
Width only 22.5 mm
Protection function in case of PSU overload
Local control and reset via push buttons
Configurable signaling and communication interface
ON/OFF feature for each individual output
Easy wiring via push-in terminals
3 year warranty
S
HORT
Input voltage
Input current
Internal consumption
Output current
tripping setpoint per
channel
Tripping
characteristics
Tripping delay
Max. capacitive load
Efficiency
Signaling and
Communication
Temperature range
Size (w x h x d)
Weight
M
AIN
For details and the complete approval list, see chapter 22.
UL 61010-2-201 planned
www.pulspower.com
C
B
IRCUIT
REAKER
24/12 V 1-8 A
-
D
FORM
ATA
DC 24 V
DC 12 V
max. 20 A
30 mA at 24 V
20 mA at 12 V
1/2/3/4/6/8 A
2/4/6/8 A
slow or fast
< 2 ms
0.22 s
< 10 ms
1.1 s
40 mF
> 99 % at 24 V
> 98 % at 12 V
Channel Status
Remote channel reset
Digital Coded Interface
-25 °C to +70 °C
22.5 x 104 x 98 mm
100 g
A
PPROVALS
UL 2367 planned
PISA-M-4ADJ
PISA-M-40
X
- 20 % / + 25 %
- 20 % / + 25 %
adjustable (PISA-M-4ADJ)
fixed (PISA-M-40x)
selectable
at short circuit
for fast tripping at 1.5 x
tripping setpoint
at short circuit
for slow tripping at 1.5 x
tripping setpoint
at 8 A, 24 V, slow tripping
characteristic
without DIN rail
without accessories
1/22

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PISA-M-40 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Puls PISA-M-40 Series

  • Page 1 PISA-M-4ADJ PISA-M-40 LECTRONIC IRCUIT REAKER 24/12 V 1-8 A • 4 current controlled outputs • Fully adjustable and fixed output current versions • Selective tripping of overloaded channels • Compatible even with large capacitive loads • 24 V and 12 V operation •...
  • Page 2: Table Of Contents

    PISA-M-4ADJ PISA-M-40 Index Page Page Intended Use ..............3 15. PISA-M Local User Interface: Access Data and Set Installation Instructions ..........3 Configuration ..............14 Typical Wiring Scheme ..........4 16. Digital Coded Interface ..........14 DC Input ............... 5 17.
  • Page 3: Intended Use

    PISA-M-4ADJ PISA-M-40 1. Intended Use This device is designed for installation in an enclosure and is intended for commercial use, such as in industrial control, process control, monitoring and measurement equipment or the like. Do not use this device in equipment, where malfunctioning may cause severe personal injury or threaten human life without additional appropriate safety devices, that are suited for the end-application.
  • Page 4: Typical Wiring Scheme

    PISA-M-4ADJ PISA-M-40 3. Typical Wiring Scheme One PISA-M device is suitable to distribute the current to 4 consumers. The (+) pole terminals of the loads must be connected to the outputs of the PISA-M module. For distribution of the (-) pole, an external distribution node is required. If several PISA-M modules are connected to a power supply with nominal current exceeding 20 A, the (-) pole of the power supply shall be connected directly to the distribution node.
  • Page 5: Dc Input

    PISA-M-4ADJ PISA-M-40 4. DC Input The input can be powered from a regulated power supply or a similar DC source. The input must be powered from a PELV or SELV source or an “Isolated Secondary Circuit” in order to maintain SELV or PELV outputs. Check for correct input polarity.
  • Page 6: Dc Output

    PISA-M-4ADJ PISA-M-40 5. DC Output Output voltage nom. DC 24 V / 12 V The output voltage is equal to the input voltage minus the voltage drop of the module. Voltage drop per channel typ. 130 mV at 8 A if one channel is loaded and all other channels are not connected to a load if all channels are loaded with 5 A...
  • Page 7: Tripping Characteristics

    PISA-M-4ADJ PISA-M-40 6. Tripping Characteristics The PISA-M-4ADJ allows individual adjustment of the tripping current on each channel. All other PISA-M-40x versions come with four fixed output channels which cannot be adjusted. Please refer to the order numbers on page 1. The tripping characteristics can be uniformly configured as slow or fast for all channels on all PISA-M versions.
  • Page 8: Charging Of Capacitive Loads

    PISA-M-4ADJ PISA-M-40 7. Charging of Capacitive Loads Large input capacitors of drives, monitors or other consumers can result in an unintended tripping of the output channel when trying to turn-on such types of loads. This especially can occur after a reset or by turning on a channel via the Channel Control Button or remotely. The PISA-M is designed to be exceptionally compatible with such types of loads.
  • Page 9: Fail-Safe Master Switch

    8. Fail-Safe Master Switch The electronic circuit breakers from PULS do not include built-in melting fuses as fail-safe backup, but an intelligent fail-safe master switch. The fail-safe master switch is continuously monitoring the total input current and all output currents. If a deviation of ≥ 1 A is detected between total output and input current for more than 1 s, then a fault is detected, and the fail-safe master switch disables the PISA-M unit.
  • Page 10: Device Overcurrent Protection

    PISA-M-4ADJ PISA-M-40 10. Device Overcurrent Protection The PISA-M comes with a built-in safeguard mechanism to prevent overcurrent. It constantly monitors all channel currents. If the total current exceeds the rated maximum of 20 A for 2 s or more, the device will reduce the total output current by switching of channels, starting with overloaded channels, then continuing with CH4 to CH1 until the total output current is 20 A or less.
  • Page 11: Functional Diagram

    PISA-M-4ADJ PISA-M-40 Signal Control Input (3.3 – 3.4) The device is equipped with a control input for resetting all tripped output channels remotely. Therefore, apply a voltage between 10 and 30 Vdc for longer than 1 s to the status control input. Reset voltage ratings min.
  • Page 12: Terminals And Wiring

    PISA-M-4ADJ PISA-M-40 13. Terminals and Wiring The terminals are IP20 finger safe and suitable for field- and factory wiring. All terminals are facing to front. Input Terminals Output Terminals Signal Terminals Type push-in terminals push-in terminals push-in terminals Solid wire max.
  • Page 13: Front Side And User Elements

    PISA-M-4ADJ PISA-M-40 14. Front Side and User Elements Input Terminals Identical poles are internally connected. (+) 1.1 Positive input pole (-) 1.2, 1.3 Negative input pole Output Terminals (+) 2.1 Channel 1 positive output pole (+) 2.2 Channel 2 positive output pole (+) 2.3 Channel 3 positive output pole (+) 2.4...
  • Page 14: Pisa-M Local User Interface: Access Data And Set Configuration

    PISA-M-4ADJ PISA-M-40 15. PISA-M Local User Interface: Access Data and Set Configuration The PISA-M allows users to customise settings through its local user interface. Configurable options include: • Output current tripping setpoint per channel (only for PISA-M-4ADJ): 1/2/3/4/6/8 A • Tripping characteristic: Slow / Fast •...
  • Page 15 PISA-M-4ADJ PISA-M-40 Bidirectional Communication The bidirectional communication mode enables extended functions. In addition to transmitting triggered channels, the channels can also be remotely turned off and on. This also expands the scope of information transmitted by the device in the data sequence: •...
  • Page 16: Lifetime Expectancy

    PISA-M-4ADJ PISA-M-40 17. Lifetime Expectancy The lifetime expectancy shown in the table indicates the minimum operating hours (service lifetime) and is mainly determined by the lifetime expectancy of the built-in electrolytic capacitors. Lifetime expectancy is specified in operational hours and is calculated according to the capacitor’s manufacturer specification.
  • Page 17: Emc

    PISA-M-4ADJ PISA-M-40 19. EMC The EMC behaviour of the device is designed for applications in industrial environment as well as in residential, commercial and light industry environment without any restrictions. The device complies with EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4. The device complies with FCC Part 15 rules. Operation is subjected to following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 18: Environment

    PISA-M-4ADJ PISA-M-40 20. Environment Operational temperature - 25 °C to + 70 °C The operational temperature is the ambient or surrounding temperature and is defined as the air temperature 3 cm below the device. Storage temperature - 25 °C to + 85 °C for storage and transportation Output derating 1.25 A / 1000 m or...
  • Page 19: Safety And Protection Features

    PISA-M-4ADJ PISA-M-40 21. Safety and Protection Features Isolation resistance at delivered condition between power port and > 10 MOhm signals, measured with 500 Vdc Isolation voltage 500 Vac power ports to signal ports 500 Vac power ports / signal ports to housing Class of protection a PE (Protective Earth) connection is not required Degree of protection...
  • Page 20: Approved, Fulfilled Or Tested Standards

    PISA-M-4ADJ PISA-M-40 22. Approved, Fulfilled or Tested Standards UL 61010-2-201 UL Certificate Listed equipment for category NMTR - Electrical Equipment for planned Measurement, Control and Laboratory Use - Particular requirements for control equipment Applicable for US and Canada E-File: E198865 UL Certificate UL 2367 Recognized component for category QVRQ - UL 2367 Standard for...
  • Page 21: Physical Dimensions And Weight

    PISA-M-4ADJ PISA-M-40 24. Physical Dimensions and Weight Plastic housing with DIN rail mount. Housing in black colour. Width 22.5 mm Height 104 mm Depth 98 mm The DIN rail depth must be added to the unit depth to calculate the total required installation depth. Weight 100 g DIN rail...
  • Page 22: Accessory

    PISA-M-4ADJ PISA-M-40 25. Accessory 25.1. ZM3.Wall mounting bracket Available from stock. Bulk package with 25 pcs. Short DIN rail element for wall or panel mounting made from high-grade polycarbonate material. Shipped without screws or further fastening material. Mounting hole diameter: 4.2 mm. Note: The picture is for representation only.
