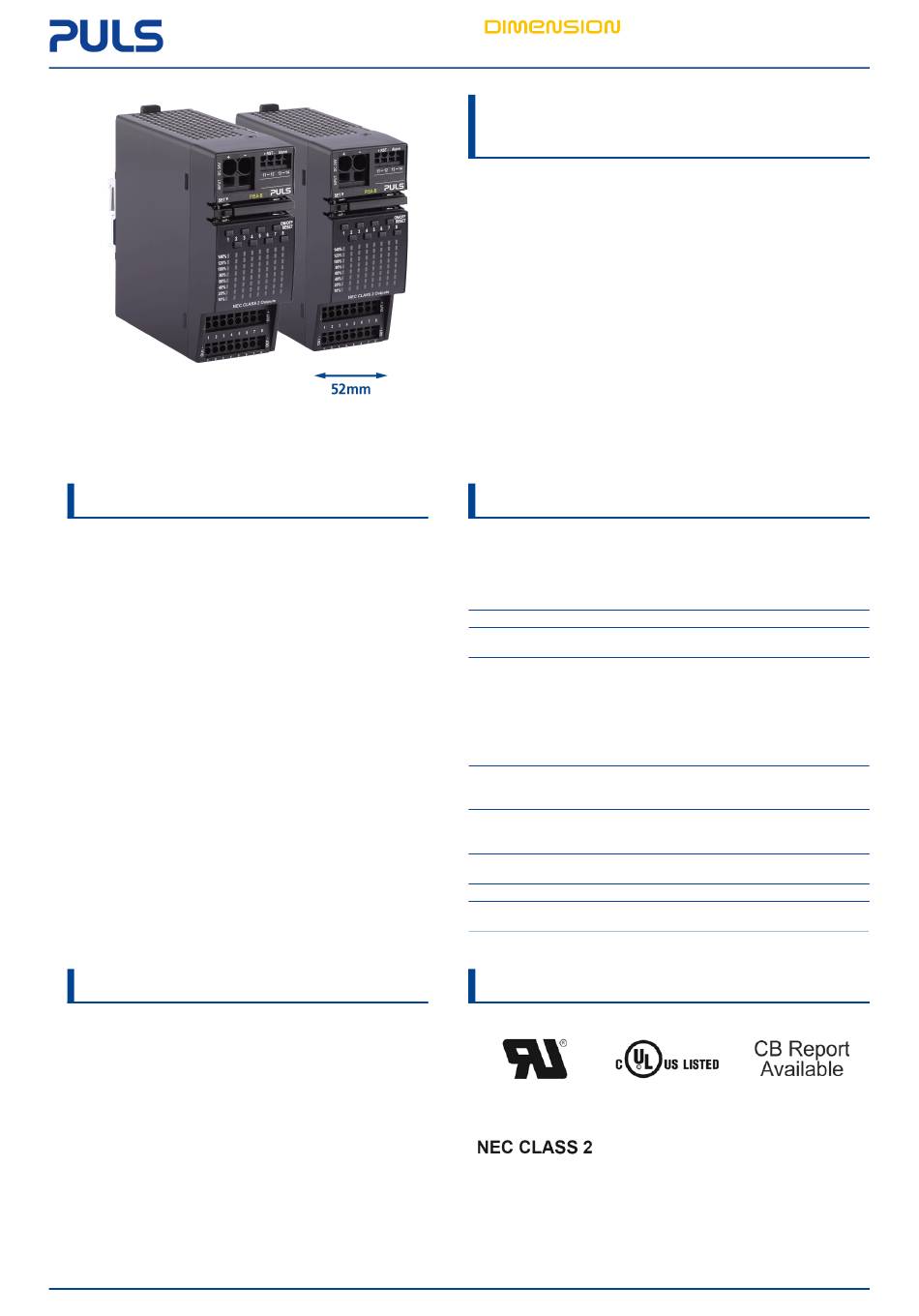

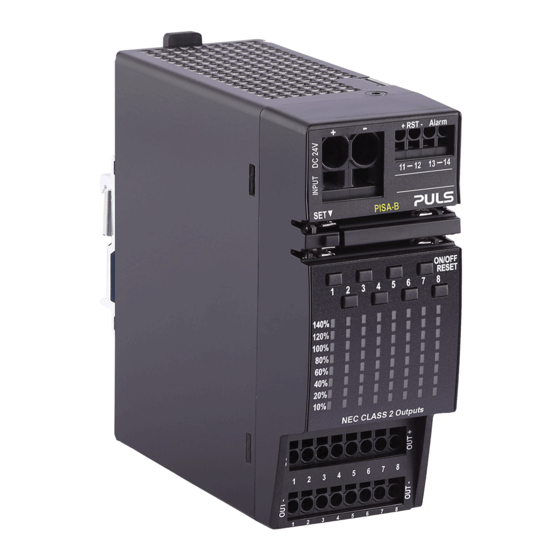

GENERAL DESCRIPTION
The
PISA-B
devices
eight channel protection modules with integrated
electronic fuses for 24V systems. They distribute the
current from one large power source to eight NEC
Class 2 output circuits, which results in reduced fire
safety efforts and easier regulatory testing as well as
approval processes for the end equipment.
Channel 1 and 2 are optimized for loads with large
input capacitances. Connect such loads to these
channels to avoid false tripping or unexpected switch-
off such loads.
The PISA-B-8CL2-B1 is equipped with a common
tripping signaling relay contact that reports tripped
channels, while the PISA-B-8CL2-B4 has a digital coded
signal output built in for this function.
All PISA-B devices are equipped with push-in
terminals, which are optimized for automated wiring.
The mechanically robust housing is made of a high-
grade, reinforced molded material on the front and
of an aluminum body, which permits surrounding
temperatures up to +70°C.
ORDER NUMBERS
Description:
Electronic Fuse PISA-B-8CL2-Bx-xx
Order Number:
PISA-B-8CL2-B1 Common signaling relay contact
PISA-B-8CL2-B4 Digital coded signal output
Accessories:
BUS-BAR1-L102: A set for 2 modules
BUS-BAR1-L155: A set for 3 modules
BUS-BAR1-L500: Single piece L=500mm
All parameters are specified at 24Vdc input voltage, 8x3.75A output currents, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
Apr. 2021 / Rev. 0.1 DS-PISA-B-8CL2-Bx-xx-EN
are
DIN
rail
mountable
ELECTRONIC FUSE
8X 24V, NEC CLASS 2
• Eight Current Controlled Outputs
• NEC Class 2 Compliant
• Adaptive Voltage-dependent Current Limitation for
Maximal Output Power According to NEC Class 2
• Selective Tripping of Overloaded Channels
• Compatible even with large Capacitive Loads
• Output Currents Displayed Live on LED Matrix
• Remote Reset or Reset via Pushbuttons
• Common Signaling Relay Contact for Tripped
Channels (PISA-B-8CL2-B1)
• Digital Coded Signal Output for Tripped Channels
(PISA-B-8CL2-B4)
• Parameter Settings can be Locked by PIN-Code
• ON/OFF Feature for Each Individual Output
• Easy Wiring - Distribution Terminals for Negative Pole
• 3 Year Warranty
SHORT-FORM DATA
Input voltage
Required input voltage
for turning-on of outputs
Input current
Internal consumption
Nominal output current
Current limitation
Tripping characteristics
Tripping delay
CH1-CH2
CH3-CH8
CH1-CH8
CH1-CH8
Max load capacitance capability
CH1-CH2
CH3-CH8
Voltage drop per channel
CH1-CH2
CH3-CH8
Standby losses
Power losses
Temperature range
Size (w x h x d)
Weight
MAIN APPROVALS
For details and a complete approval list, see chapter 20.
UL 2367
www.pulspower.com
PISA-B-8CL2-B1
PISA-B-8CL2-B4
DC 24V
-20%/+25%
19.6Vdc
40A
40mA
PISA-B-8CL2-B1
35mA
PISA-B-8CL2-B4
3.75A
Per channel
5.7A
CH1 and CH2
50A
CH3 to CH8
Slow or Fast
Selectable
2ms – 1.1s
At short circuit
<10ms
At short circuit
1.1s
For slow tripping at 1.5x
nominal current
0.22s
For fast tripping at 1.5x
nominal current
100mF
Per channel
20mF
Per channel
45mV
For 3.75A load
60mV
For 3.75A load
1W
7W
At 8x 3.75A load
-25°C to 70°C
52x124x130mm
Without DIN rail
370g / 0.82lb
UL 61010-2-201
IEC 61010
IEC 62368 planned
1 / 19

Advertisement

loading
Need help?

Need help?

Do you have a question about the DIMENSION PISA-B-8CL2-B1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Puls DIMENSION PISA-B-8CL2-B1

  • Page 1 PISA-B-8CL2-B1 PISA-B-8CL2-B4 ELECTRONIC FUSE 8X 24V, NEC CLASS 2 • Eight Current Controlled Outputs • NEC Class 2 Compliant • Adaptive Voltage-dependent Current Limitation for Maximal Output Power According to NEC Class 2 • Selective Tripping of Overloaded Channels • Compatible even with large Capacitive Loads •...
  • Page 2 PISA-B-8CL2-B1 PISA-B-8CL2-B4 Index Intended Use............13 Front Side And User Elements......12 Installation Instructions........14 Terminals And Wiring........12 Typical Wiring Scheme........15 Lifetime Expectancy........... 13 DC-Input.............. 16 MTBF..............13 Output..............17 EMC..............14 Output Tripping Characterstics......18 Environment............15 Control and Monitoring Features.....
  • Page 3 PISA-B-8CL2-B1 PISA-B-8CL2-B4 Intended Use This device is designed for installation in an enclosure and is intended for commercial use, such as in industrial control, process control, monitoring and measurement equipment or the like. Do not use this device in equipment, where malfunctioning may cause severe personal injury or threaten human life without additional appropriate safety devices, that are suited for the end-application.
  • Page 4 PISA-B-8CL2-B1 PISA-B-8CL2-B4 Typical Wiring Scheme One fuse module is suitable to distribute the current to 8 consumers. If there are more than eight consumers, up to eight fuse modules can be used (64 consumers). The supply of the individual fuse modules can be done by means of power-bus- bars, which are available as accessory parts.
  • Page 5 PISA-B-8CL2-B1 PISA-B-8CL2-B4 DC-Input The input can be powered from a regulated power supply or a similar DC source. Use an appropriately sized power supply, which can deliver the required output current. If a power supply with a continuous output current greater than 50A is used, a fuse or circuit breaker with 63A (B- or C- Characteristic) must be connected between the power supply and the electronic fuse module.
  • Page 6 PISA-B-8CL2-B1 PISA-B-8CL2-B4 Output voltage nom. DC 24V The output voltage is equal to the input voltage minus the voltage drop of the module. Output current nom. 3.75A +/-100mA, at 24V per channel nom. +/-100mA, at 30V per channel Adaptive voltage-dependent current limitation for maximal output current according to NEC Class 2 requirements.
  • Page 7 PISA-B-8CL2-B1 PISA-B-8CL2-B4 Output Tripping Characterstics The tripping characteristic can be set to Slow or Fast as a common parameter for all channels. Tripping characteristic Slow / Fast selectable, factory setting is Fast Tripping delay typ. 1.1s For all channels in Slow mode at 1.5x nominal current typ.
  • Page 8 PISA-B-8CL2-B1 PISA-B-8CL2-B4 Control And Monitoring Features The LED matrix display provides information about the actual current values (average and peak) of the individual output channels, reports faults and helps to parameterise the device. The green and yellow LEDs indicate the actual channel current in percent of the nominal value.
  • Page 9 PISA-B-8CL2-B1 PISA-B-8CL2-B4 Description: Channel 1 is loaded with 40-60% of the nominal current Channel 2 has tripped due to over current Channel 3 is turned off on purpose (with push-button) Channel 4 is loaded with 80-100% of the nominal current Channel 5 is turned off on purpose (with push-button) Channel 6 is loaded with 40-60% of the nominal current Channel 7 is loaded with 0-10% of the nominal current...
  • Page 10 PISA-B-8CL2-B1 PISA-B-8CL2-B4 Alarm Relay Contact (PISA-B-8CL2-B1) The device is equipped with an alarm contact. The normally closed (NC) contact closes as soon as one output channel has switched off (common signalling) or the input voltage is lower than 19Vdc. Contact ratings max.
  • Page 11 PISA-B-8CL2-B1 PISA-B-8CL2-B4 12. Functional Diagram Fig. 12-1: Functional diagram PISA-B-8CL2-B1 Fig. 12-2: Functional diagram PISA-B-8CL2-B4 All parameters are specified at 24Vdc input voltage, 8x3.75A output currents, 25°C ambient and after a 5 minutes run-in time unless otherwise noted. Apr. 2021 / Rev. 0.1 DS-PISA-B-8CL2-Bx-xx-EN www.pulspower.com 11 / 19...
  • Page 12 PISA-B-8CL2-B1 PISA-B-8CL2-B4 13. Front Side And User Elements Output terminals CH1 – CH8 A1: (+) Positive output poles A2: (−) Negative (return) output poles Input terminals Positive input pole (−) Negative (return) input pole Alarm signal (pin 13-14) PISA-B-8CL2-B1: Relay contact PISA-B-8CL2-B4: Digital coded signal Signal input to restart switched-off channels (pin 11-12) Slot for interconnecting power-bus-bar for supply voltage...
  • Page 13 PISA-B-8CL2-B1 PISA-B-8CL2-B4 15. Lifetime Expectancy The Lifetime expectancy shown in the table indicates the minimum operating hours (service life) and is determined by the lifetime expectancy of the built-in electrolytic capacitors. Lifetime expectancy is specified in operational hours and is calculated according to the capacitor’s manufacturer specification.
  • Page 14 PISA-B-8CL2-B1 PISA-B-8CL2-B4 17. EMC The EMC behavior of the device is designed for applications in industrial environment as well as in residential, commercial and light industry environment without any restrictions. The device complies with EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4. The device complies with FCC Part 15 rules.
  • Page 15 PISA-B-8CL2-B1 PISA-B-8CL2-B4 18. Environment Operational temperature -25°C to +70°C (-13°F to 158°F) The operational temperature is the ambient or surrounding temperature and is defined as the air temperature 2cm below the device. Storage temperature -40°C to +85°C (-40°F to 185°F) For storage and transportation Output derating not applicable...
  • Page 16 PISA-B-8CL2-B1 PISA-B-8CL2-B4 19. Safety Features And Protection Features Isolation resistance >10MOhm At delivered condition between power port and signals, measured with 500Vdc >10MOhm At delivered condition between power port and housing, measured with 500Vdc >10MOhm At delivered condition between signals and housing, measured with 500Vdc Output over-voltage protection max.
  • Page 17 PISA-B-8CL2-B1 PISA-B-8CL2-B4 20. Approvals And Fulfilled Standards IEC 61010 CB Scheme Certificate IEC 61010-2-201 - Electrical Equipment for Measurement, Control and Laboratory Use - Particular requirements for control equipment IEC 62368 CB Scheme Certificate planned IEC 62368-1 - Audio/video, information and communication technology equipment - Safety requirements Output safety level: ES1 NEC Class 2...
  • Page 18 PISA-B-8CL2-B1 PISA-B-8CL2-B4 22. Physical Dimensions And Weight Width 52mm / 2.05'' Height 124mm / 4.88'' Depth 130mm / 5.12'' The DIN rail height must be added to the unit depth to calculate the total required installation depth. Weight 370g / 0.82lb DIN rail Use 35mm DIN rails according to EN 60715 or EN 50022 with a height of 7.5 or 15mm.
  • Page 19 PISA-B-8CL2-B1 PISA-B-8CL2-B4 23. Accessories 23.1. POWER CONNECTION - POWER-BUS-BARS These power-bus-bars are used to connect several PISA-B modules electrically together. The power-bus-bars distribute the 24V supply voltage of the PISA-B modules. The length of 102mm is suitable to connect two PISA-B modules together. The length of 155mm is suitable to connect three PISA-B modules together.
