JBL Everest DD66000 Technical Manual
Hide thumbs Also See for Everest DD66000:

Advertisement

Quick Links

Technical Manual
Everest DD66000
ACOUSTIC & ELECTRICAL SPECIFICATIONS:
Nominal Impedance
Max Amp Power
Frequency Response
Sensitivity
Crossover Frequency
SYSTEM COMPONENTS:
Grille
Low-Frequency Transducer 15" (381mm) Pulp-cone woofer
DC Resistance
High-Frequency Transducer 4" (102mm) Beryllium
DC Resistance
Ultrahigh-Frequency
Transducer
DC Resistance
Crossover Network
PACKAGING
FINI HED A
EMBLY
Release Date 2006
Discontinued Date XXXX
Harman Consumer Group, Inc., 250 Crossways Park Drive, Woodbury, New York 11797
8 Ohms
5.5 Ohms @ 85Hz
3.5 Ohms @ 40kHz
500 Watts*
45Hz – 50kHz (–6dB)
32Hz – 50kHz (–10dB)
96dB (2.83V @ 1 meter)
150Hz (LF1 6dB/Octave)
700Hz (LF2 24dB/Octave)
20kHz (UHF 24dB/Octave)
362088-001 (black)
362088-002 (white)
(1501AL) x 2 (362330-001)
9.2 Ohms, ±10%
compression driver (476Be)
(362733-001)
8.0 Ohms, ±10%
1" (25mm) Beryllium compression
driver (045Be-1) (362366-001)
3.1 Ohms, ±10%
361900-004, UHF
361900-003, HF
361900-001, LF1
361900-002, LF2
7
2 PLC .
2 PLC .
AURAL SWEEP TEST SPECIFICATIONS:
System Aural Sweep Test
L.F.1 Aural Sweep Test
L.F.2 Aural Sweep Test
H.F. Aural Sweep Test
H.F. Aural Sweep Test
PHYSICAL SPECIFICATIONS:
Dimensions (H x W x D)
(including feet)
Weight (without grille)
Weight (with grille)
WARRANTY:
Refer to Warranty Statement packed with each product.
*
The maximum recommended amplifier power rating will ensure
proper system headroom to allow for occasional peaks. We do not
recommend sustained operation at these maximum power levels.
4
5
6
2
1
6.0V Input 45Hz to 20kHz
5.0V Input 45Hz to 1kHz
5.0V Input 45Hz to 1kHz
1.00V Input 700Hz to 20kHz
N/A
38" x 43-5/8" x 18-1/2"
(965mm x 1109mm x 469mm)
302 lb (137kg) (each)
312 lb (142kg) (each)
3
8/07

Advertisement

loading
Need help?

Need help?

Do you have a question about the Everest DD66000 and is the answer not in the manual?

Questions and answers

Summary of Contents for JBL Everest DD66000

  • Page 1 Technical Manual Everest DD66000 AURAL SWEEP TEST SPECIFICATIONS: ACOUSTIC & ELECTRICAL SPECIFICATIONS: • Nominal Impedance 8 Ohms • System Aural Sweep Test 6.0V Input 45Hz to 20kHz 5.5 Ohms @ 85Hz • L.F.1 Aural Sweep Test 5.0V Input 45Hz to 1kHz 3.5 Ohms @ 40kHz...

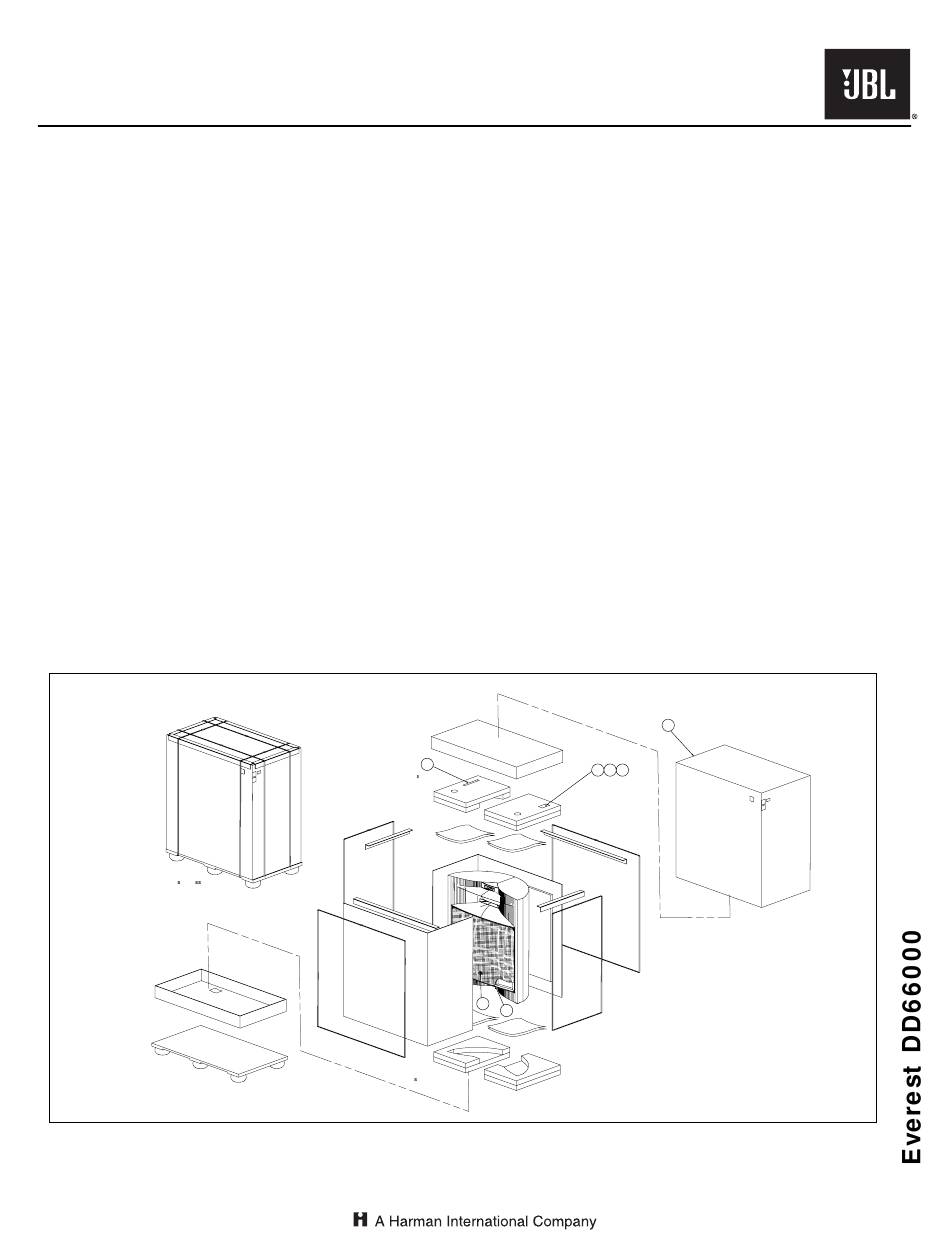

  • Page 2: Wiring Diagram
