SEGUE Sunrise VK-2314 Setup Instructions

10' x 20' display

Advertisement

Quick Links

© 2024
Order #XXXXX

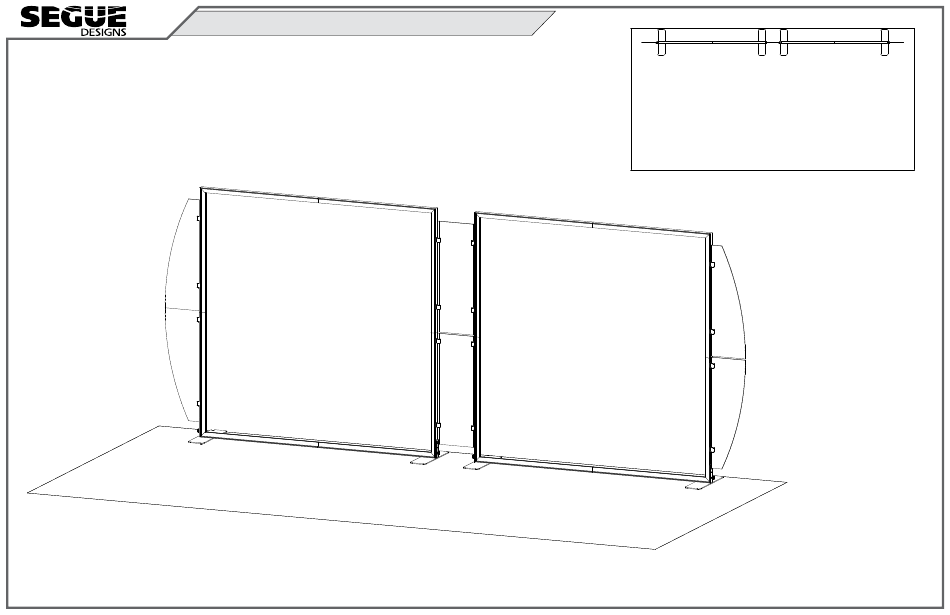

VK-2314 Sunrise - 10' x 20' Display
10'
20'
Plan View
SETUP INSTRUCTIONS
If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the Sunrise VK-2314 and is the answer not in the manual?

Questions and answers

Summary of Contents for SEGUE Sunrise VK-2314

  • Page 1 © 2024 Order #XXXXX VK-2314 Sunrise - 10’ x 20’ Display 10’ 20’ Plan View SETUP INSTRUCTIONS If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com...
  • Page 2: Plan View

    © 2024 Order #XXXXX Plan View = 1 sq foot...
  • Page 3: General Setup Instructions

    © 2024 Order #XXXXX General Information General Setup Instructions WARNING - Read entire setup instruction manual prior to unpacking parts and pieces. - The setup instructions are created specifically for this configuration. - Setup instructions are laid out sequentially in steps, including exploded views with detailed explanation for assembly.
  • Page 4 © 2024 Order #XXXXX Tool-less Frame Assembly Slide connector across seam of extrusions. Disassembly Tighten all knobs. Straight Connection 1) Loosen all knobs. When assembling frame, first attach all straight Straight Connector 2) Slide connectors off of one extrusion. connectors, then attach corner connectors.
  • Page 5 © 2024 Order #XXXXX SEG Installation The Perfect Fit SEG Graphic Installation in 3 Steps STEP 1: Attach Corners STEP 2: Attach Middle STEP 3: Attach Sides Always insert graphic into each alternate corner, then into the sides of the frame. Otherwise the graphic will not fit into the frame correctly.
  • Page 6 © 2024 Order #XXXXX Case Packing Top View of Each Level Base Plate Graphics Wings Base Plate Setup Hardware Level 1 Level 2 Level 3 Level 4 (Bottom level) Case 1 of 2...
  • Page 7 © 2024 Order #XXXXX Case Packing Top View of Each Level Base Plate Graphics Base Plate Setup Hardware Level 1 Level 2 Level 3 (Bottom level) Case 2 of 2...
  • Page 8: Front View

    © 2024 Order #XXXXX Backwall Assembly Item Qty. Description Steps: 45”h TSP49 Vertical Extrusion Refer to the Tool-less Frame Assembly general information page. 45”h TSP49 Vertical Extrusion 45”h TSP49 Vertical Extrusion 1) Assemble extrusions [1-2], [3-4], [5-6], [7-8] & [1-2], [3-4], [5-6], [7-8] together 45”h TSP49 Vertical Extrusion using straight connectors.
  • Page 9 © 2024 Order #XXXXX Backwall Attachments Steps: 1) Connect Wings to A10 clamps on vertical extrusions. A10 Clamp Attachment detail. Completed Assembly A10 Clamp Attachment C en te r W in g Screw A10 clamp to W in g Vertical Extrusion. W in g W in g Tighten knob to...
