Weight Limit: 600 lbs / 272 kgs
WARNING
• This futon has been designed for seating three (3) average adults. To prevent injury and damage to this unit, PROHIBIT jumping on it.
• This product is designed for home use and not intended for commercial use.
• Children under the age of 5, small infants and babies must not sleep on this product for safety reasons.
• Recommended # of people needed for assembly: 1 (however it is always better to have an extra hand). Estimated assembly time is 10 minutes.
• THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
SD - 7/3/2014
2000209W

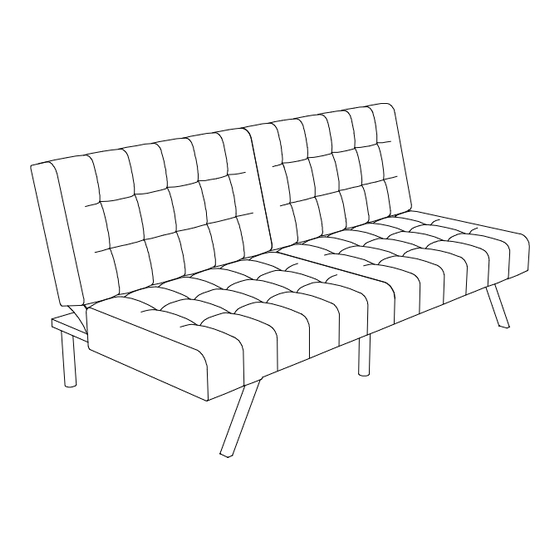

Mainstays Faux Leather Futon
DO NOT RETURN PRODUCT TO THE
STORE
STOP
Individual stores do not stock parts.
If a part is missing or damaged, call our
toll-free customer service line. We will
gladly ship your replacement parts FREE
of charge.
1-800-267-1739
Need Parts or Assistance?
or access our website
www.dhpfurniture.com
For prompt, reliable service; please have your assembly
manual ready.
Date of Purchase
___ / ___ / ___
Lot Number
_________
B342000209W02-260301-HE
Brown
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DHP 2000209W
Summary of Contents for DHP 2000209W
- Page 1 2000209W Mainstays Faux Leather Futon Brown Weight Limit: 600 lbs / 272 kgs DO NOT RETURN PRODUCT TO THE STORE STOP Individual stores do not stock parts. If a part is missing or damaged, call our toll-free customer service line. We will gladly ship your replacement parts FREE of charge.
-
Page 2: Helpful Hints
Warranty Information DHP warrants this product to be free from defects in material and workmanship and agrees to remedy any such defect. This warranty covers one year from the date of original purchase. This is solely limited to the repair or replacement of defective parts and no assembly labor is included. - Page 3 3/12 B342000209W02...
- Page 4 PARTS SEAT FRONT RIGHT LEG T613900 T802570 QTY: 1 QTY: 1 REAR LEG MIDDLE LEG FRONT LEFT LEG T607680 T607670 T802560 QTY: 2 QTY: 2 QTY: 1 4/12 B342000209W02...
- Page 5 HARDWARE T3199098-00 HARDWARE PACK BOLT BOLT M8 X 8mm M6 X 6mm QTY: 6 QTY: 8 HEX KEY HEX KEY QTY: 1 QTY: 1 5/12 B342000209W02...
- Page 6 Take out the LEGS (B, C, D& E) and the Hardware pack which is contained in the storage compartment on the back of SEAT (A), as shown below 6/12 B342000209W02...
- Page 7 Attach the REAR LEGS (D) to the SEAT (A), as shown below. 7/12 B342000209W02...
- Page 8 Attach the LEGS (B, C & E) to the SEAT (A) with BOLTS (1 & 2), as shown below. 8/12 B342000209W02...
- Page 9 To convert from sofa position to bed position: Pull the backrest in direction of the arrow as far as possible and then release, as shown below. 9/12 B342000209W02...
- Page 10 Al registrar tu producto con nosotros entrarás automáticamente a nuestro concurso trimestral con la oportunidad de ganar premios increíbles. Beneficios: Con tan sólo tomarte unos minutos en registrar tu producto y mejorar tu experiencia con DHP puedes obtener: ● Información exclusiva sobre nuevos productos ●...
- Page 11 PÁGINA 04 A) ASIENTO -------------------------- T613900 - CANTIDAD: 1 B) PATA DELANTERA DERECHA --- T802570 - CANTIDAD: 1 C) PATA DELANTERA IZQUIERDA - T802560 - CANTIDAD: 1 D) PATA TRASERA ------------------- T607670 - CANTIDAD: 2 E) PATA MEDIA ---------------------- T607680 - CANTIDAD: 2 PÁGINA 05 Paquete de Componentes ------ T3199098-00 1) Perno M8 x 8 mm ----------- CANTIDAD : 6...
-
Page 12: Consejos Útiles
Información de Garantía DHP garantiza que este producto está libre de defectos materiales y de mano de obra aceptando corregir cualquier defecto. Esta garantía es válida por un año a partir de la fecha de compra original de este artículo. Esta garantía está limitada a la reparación o reemplazo de piezas defectuosas, más no a la mano de obra incurrida en el ensamblaje de este artículo.
