DHP 2007109 Manual

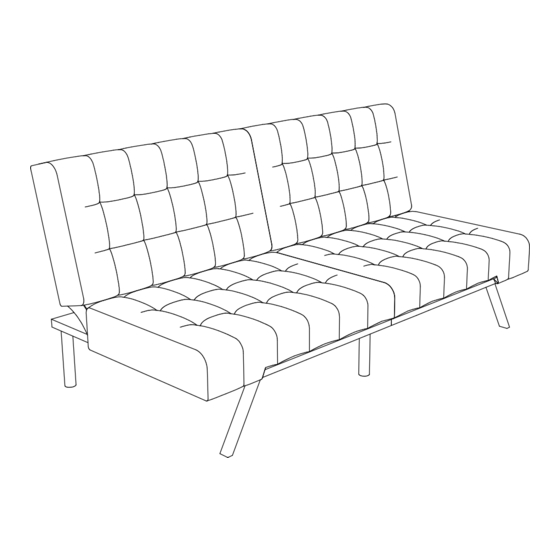

Emily convertible futon
Hide thumbs Also See for 2007109:

Advertisement

Quick Links

Weight Limit: 600 Lbs / 272 Kgs
WARNING
● WARNING FOR YOUNG CHILDREN - This product contains small components. Please ensure that they are kept away from small children. The effective child's age for
the proper use of this item is at the discretion of the parent\caregiver; however, this bed is never to be used by children under the age of 3 for safety reasons.
● This futon has been designed for seating up to 3 average adults and as an alternate sleep product for 2 adults. To prevent injury and damage to this unit, PROHIBIT
jumping on it.
● This product is designed for home use and not intended for commercial use.
● Recommended # of people needed for assembly: 2 (however it is always better to have an extra hand). Estimated assembly time is 20 minutes.
● THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
X.P. - 6/12/2014
2007109
Emily Convertible Futon
DO NOT RETURN TO THE STORE !
If parts are missing or damaged, call our
toll-free customer service line:
STOP
1-800-267-1739
or access our website:
www.dhpfurniture.com
We will gladly ship your replacement parts free of charge.
Date of Purchase
___ / ___ / ____
Lot Number
_________
B34200710901 - 236818
Vanilla

Advertisement

loading

Summary of Contents for DHP 2007109

  • Page 1 2007109 Emily Convertible Futon Vanilla Weight Limit: 600 Lbs / 272 Kgs DO NOT RETURN TO THE STORE ! If parts are missing or damaged, call our toll-free customer service line: STOP 1-800-267-1739 or access our website: www.dhpfurniture.com We will gladly ship your replacement parts free of charge.
  • Page 2 PARTS Seat Front Right Leg T611230 T610720 Rear Leg Middle Leg Front Left Leg T610730 T610740 T610710 4 /16 B34200710901...
  • Page 3: Hardware Pack

    HARDWARE PACK 1/4" X 5/16" 5/16" X 3/8" Hardware Pack#: T3199198-01 Hardware Note: Please do not completely tighten all the hardware, until the entire assembly is complete, unless indicated otherwise in the step-by-step instructions. 5 /16 B34200710901...
  • Page 4 Take out (B1, B2, C & D), contained in the storage of (A), as shown below. 6 /16 B34200710901...
  • Page 5 Attach the (C) to the (A), as shown below. 7 /16 B34200710901...
  • Page 6 Attach the (B1), (B2) & (D) to the (A) with BOLTS 1 & 2, as shown below. 8 /16 B34200710901...
  • Page 7 To convert from sofa position to bed position: Pull the backrest in direction of the arrow as far as possible and then release, as shown below. 9 /16 B34200710901...
  • Page 8 If you have also bought our Emily Chaise Lounger in Vanilla color (optional), you can stuck them together with the velcros on the bottom. 10 /16 B34200710901...
