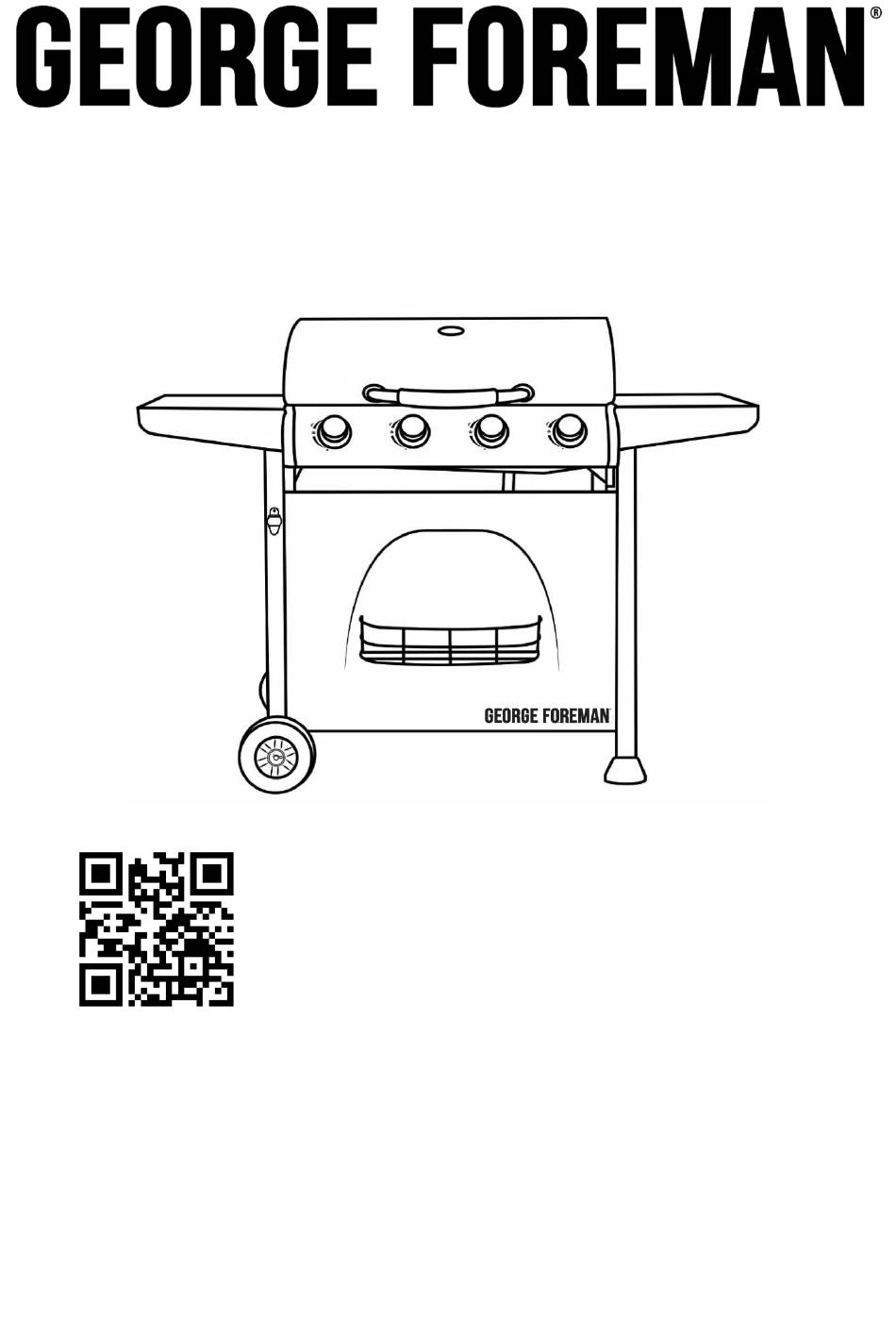

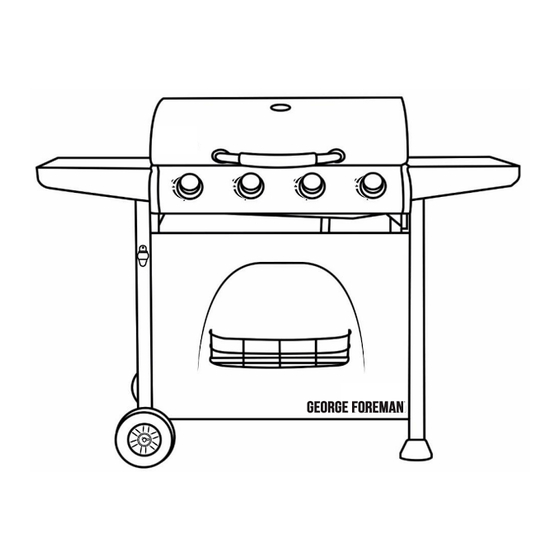

4 BURNER GAS BBQ
GFGBBQ4B-N
Please scan the QR code for step by step video assembly
instructions. Alternatively, you can visit:
bbqs.georgeforeman.co.uk. From here, please select the
product that you are looking to build and view the 'How
To' video located at the bottom of the page.
WARNING: PLEASE ENSURE YOU HAVE READ
THROUGH THE SAFETY AND OPERATING
INSTRUCTIONS BEFORE USE.
PLEASE RETAIN INSTRUCTIONS FOR FUTURE REFERENCE
For Customer Services and Spare Parts please call 0345 209 7461
Or visit us at bbqs.georgeforeman.co.uk

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GFGBBQ4B-N and is the answer not in the manual?

Questions and answers

Related Manuals for George Foreman GFGBBQ4B-N

Summary of Contents for George Foreman GFGBBQ4B-N

  • Page 1 4 BURNER GAS BBQ GFGBBQ4B-N Please scan the QR code for step by step video assembly instructions. Alternatively, you can visit: bbqs.georgeforeman.co.uk. From here, please select the product that you are looking to build and view the ‘How To’ video located at the bottom of the page.

  • Page 2: Table Of Contents

    CONTENTS Page(s) Safety instructions BBQ Feature Diagram & Parts List BBQ Assembly 8-22 Attaching Gas Cylinder Disconnecting Gas cylinder Lighting your BBQ Food Safety Tips for use and Storage Cleaning and care Troubleshooting 29-30 Guarantee and customer services GFGBBQ4B-N...

  • Page 3: Safety Instructions

    • Never mount the gas cylinder under the appliance or near any parts of the appliance which becomes hot as this could result in serious injury. • Use protective heat resistant gloves when handling particularly hot components. GFGBBQ4B-N...
  • Page 4 WARNING: Do not use spirit or petrol for lighting or re-lighting! Use only firelighters complying to EN 1860-3! • WARNING: Keep children and pets away. • WARNING: Do not use the barbecue in a confined and/or habitable space e.g. houses, tents, caravans, motor homes, boats. Danger of carbon monoxide poisoning fatality. GFGBBQ4B-N...
  • Page 5 Technical data Carbon Monoxide Do not use in Do Not Use Do Not Use in Use in open Poisoning Hazard Motor Homes Indoors Tents Spaces GFGBBQ4B-N...

  • Page 6: Bbq Feature Diagram & Parts List

    BBQ FEATURE DIAGRAM GFGBBQ4B-N...
  • Page 7 M5 X 8 X 14 Thermostat X 12 M5 55mm Bolt M5 10mm Bolt D X 2 M5-16 M5 Nut Pin Clip Bushing You will need… M4-10 • Cross Head M5 16mm Bolt Screwdriver • Adjustable Spanner M4 10mm Bolt GFGBBQ4B-N...

  • Page 8: Bbq Assembly

    BBQ ASSEMBLY STEP 1 – Assembling the side shelves • Attach a Side Shelf (2) to the right hand side of the BBQ assembly (1) using four of the M5 10mm bolts (B). • Repeat on the left hand side. GFGBBQ4B-N...
  • Page 9 STEP 2 – Assembling the right hand legs • Attach the Right Back Leg (3) to the BBQ Assembly using 2 of the M5 55mm bolts (A). • Attach the Right Front Leg (4) to the BBQ Assembly using 1 of the M5 55mm bolts (A). GFGBBQ4B-N...
  • Page 10 STEP 3 – Assembling the left hand legs • Attach the Left Back Leg (5) to the BBQ Assembly using 2 of the M5 55mm bolts (A). • Attach the Left Front Leg (6) to the BBQ Assembly using 1 of the M5 55mm bolts (A). GFGBBQ4B-N...
  • Page 11 BBQ ASSEMBLY STEP 4 – Attaching the front panel • Attach the Front Panel (7) to the BBQ Assembly using 4 of the M5 10mm bolts (B). GFGBBQ4B-N...
  • Page 12 4 of the M5 Nuts (C). • Secure the front end of the side supports to the front legs using 4 of the M5 55mm bolts (A) and 4 of the M5 Nuts (C). GFGBBQ4B-N...
  • Page 13 Pass the Wheel Axel (13) through the holes in the left hand legs. • For both wheels (14), place a Bushing (E) over the axle between the leg and the wheel and slide the axle through the wheel. Then secure in place using the Pin Clip (D). GFGBBQ4B-N...
  • Page 14 Secure the Corner Brackets (17) and Main Body Support Bracket (15) in place using 3 of the M5 16mm Bolts (F). • On the sides of the rear legs, secure the Corner Brackets (17) and Main Body Support Bracket (16) to the main body using 3 of the M5 16mm Bolts (F). GFGBBQ4B-N...
  • Page 15 Place the Oil Cup (20) into the Oil Cup Support (19). • Using the Oil Cup Support (19), hang the Oil Cup (20) below the drip hole on the Drip Tray (18), and put the Drip Tray into the back of the BBQ. GFGBBQ4B-N...
  • Page 16 BBQ ASSEMBLY STEP 8 – Assembling the flame tamers • Place the Flame Tamers (21) above the gas outlets, ensuring they are resting on the side brackets. GFGBBQ4B-N...
  • Page 17 BBQ ASSEMBLY STEP 9 – Assembling the cooking grills • Place the Cooking Grills (22) into the BBQ. GFGBBQ4B-N...
  • Page 18 BBQ ASSEMBLY STEP 10 – Assembling the warming rack • Slot the Warming Rack (23) on to the frame of the gas BBQ so that the rear of the warming rack is over the back plate of the frame. GFGBBQ4B-N...
  • Page 19 • Push the leg of the Thermostat (24) through the hole in the lid of the BBQ. Ensure that the thermostat is correctly aligned. • Use the Wing Nut supplied with the thermostat to secure the thermostat in place. GFGBBQ4B-N...
  • Page 20 BBQ ASSEMBLY STEP 11 – Assembling the bottle opener • Attach the Bottle Opener (9) using 2 of the M4 10mm Bolts (G). GFGBBQ4B-N...
  • Page 21 BBQ ASSEMBLY STEP 12 – Assembling the condiment shelf • Place the legs of the Condiment Shelf (8) through the holes in the Front Panel. GFGBBQ4B-N...
  • Page 22 BBQ ASSEMBLY STEP 13 – Completed BBQ WARNING: Never place the gas canister underneath the BBQ. GFGBBQ4B-N...

  • Page 23: Attaching Gas Cylinder

    7. Once the gas cylinder is connected to the appliance, you can then start the flow of gas by turning the small lever on the regulator from its closed position (horizontal) to its open position (vertical). WARNING: Always test gas line for leaks at connector with soap water around all connections. GFGBBQ4B-N...

  • Page 24: Disconnecting Gas Cylinder

    2. Once the gas supply has been turned off, you then need to remove the regulator from the gas cylinder. 3. To remove the regulator, push in the button release (located below the small lever on the regulator) and lift away from the gas cylinder. GFGBBQ4B-N...

  • Page 25: Lighting Your Bbq

    WARNING: If the burner goes out while the grill is in operation, turn the control dial to the “OFF” position. Open the lid and wait 5 minutes before attempting to relight the BBQ. GFGBBQ4B-N...

  • Page 26: Food Safety

    • To check whether meat, particularly poultry, is cooked, pierce the flesh with a skewer or fork; the juices should run clear. Ensure the product is piping hot throughout. GFGBBQ4B-N...

  • Page 27: Tips For Use And Storage

    After use and once the BBQ has cooled down we recommend that your BBQ is stored indoors, or in a garage or shed. When using your BBQ after a period of storage, always check for gas leaks and any obstructions in the burner before using. GFGBBQ4B-N...

  • Page 28: Cleaning And Care

    Ensure the venturi pipes (A) on the burner (B) are clean, and ensure there are no obstructions. We recommend that you use a pipe cleaner to clean the venturi pipe area. • Any modifications of this appliance may be dangerous and are not permitted. GFGBBQ4B-N...

  • Page 29: Troubleshooting

    4. Coupling nut ad LP tank valve not and care fully connected. 3.Make sure LP tank is not empty. If LP tank is not empty, refer to “sudden drop in gas flow. 4. Turn the coupling nut approximately one-half to three-quarters GFGBBQ4B-N...
  • Page 30 Flare-up 1. Grease buildup. 1. Clean burners and inside of grill/ 2. Excessive fat in meat. firebox 3. Excessive cooking temperature 2. Trim fat from meat before grilling. 3. Adjust (lower) temperature GFGBBQ4B-N...

  • Page 31: Guarantee And Customer Services

    It must be used for domestic purposes only and for its intended use. • This guarantee does not cover wear and tear, damage, misuse or consumable parts. This does not affect your statutory rights. For Customer Services & Spare Parts please call 0345 209 7461 Or visit us at bbqs.georgeforeman.co.uk GFGBBQ4B-N...
  • Page 32 Spectrum Brands (UK) Limited. Product Care Trading Limited, Wigan, WN2 4AY/ PCT (NI) Ltd, Belfast, BT5 5AD. George Foreman is the registered trademark of Spectrum Brands (UK) Ltd. For Customer Services & Spare Parts please call 0345 209 7461 Or visit us at bbqs.georgeforeman.co.uk...
