VW/Audi 6-Speed Clutch Bleeder Block
Installation Instructions -
Thank you for purchasing your new ECS Tuning VW/Audi 6-Speed
The fluid passage inside the ECS Tuning bleeder block
is larger, for less fluid restriction and faster operation of
the concentric clutch slave cylinder.
Proper service and repair procedures are vital to the safe, reliable operation of all motor vehicles as well as the personal safety of those performing the
repairs. Standard safety procedures and precautions (including use of safety goggles and proper tools and equipment) should be followed at all times
to eliminate the possibility of personal injury or improper service which could damage the vehicle or compromise its safety.
ES2586656/ES2608027
Clutch Bleeder Block, we appreciate your business!

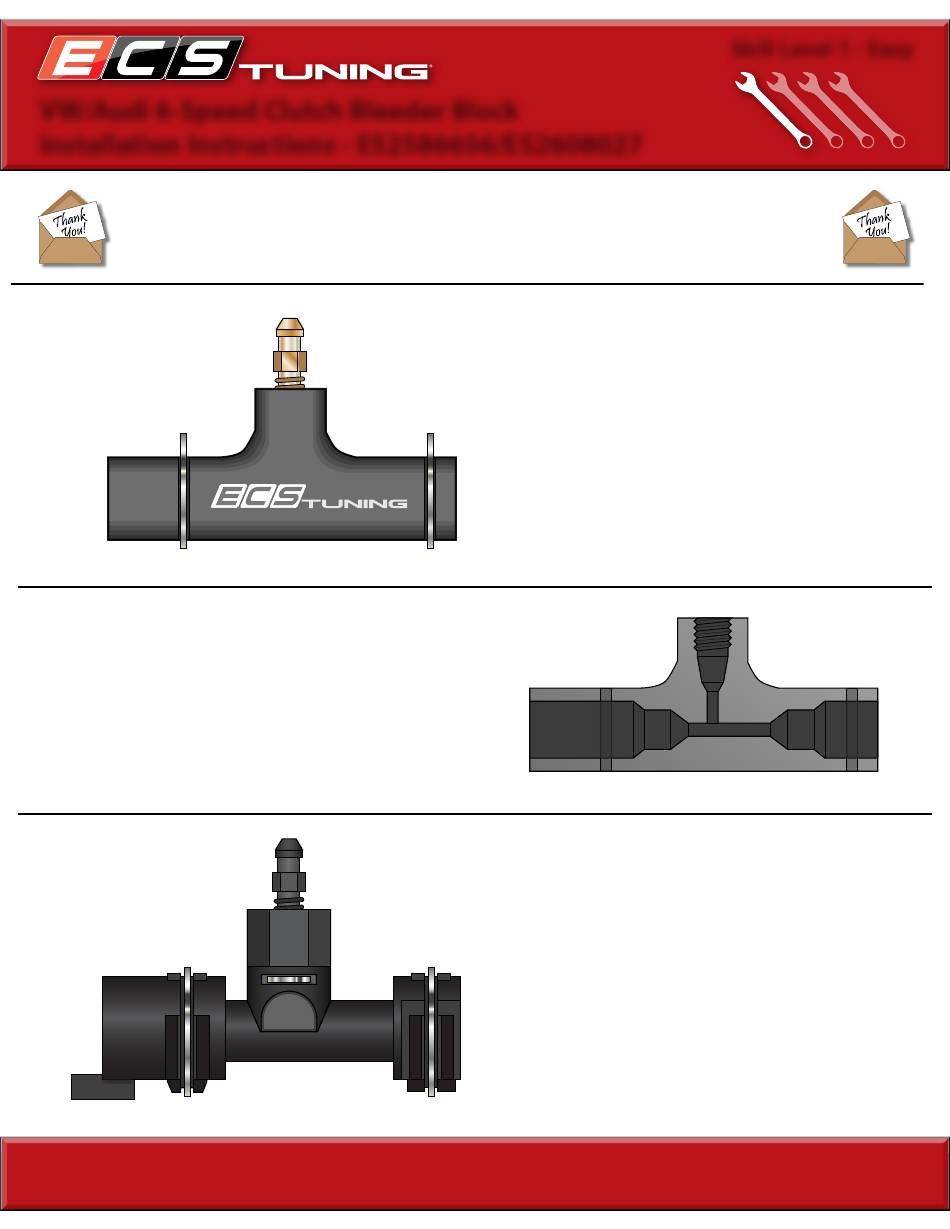

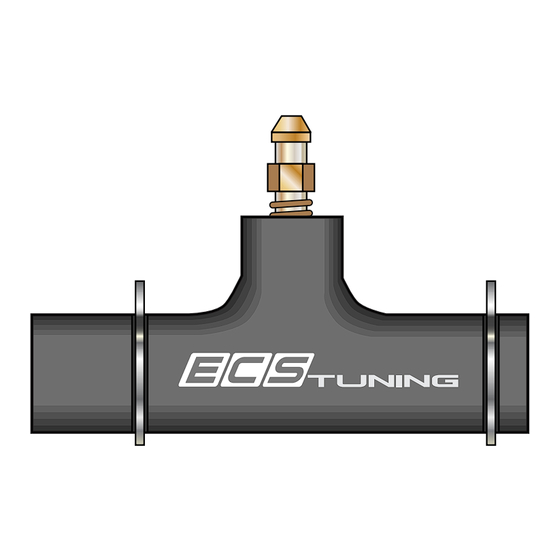

The ECS Tuning 6-Speed Clutch Bleeder Block has
features not found in the original factory-installed
bleeder block. Our bleeder block is made of black
anodized aluminum with a steel bleeder screw, so
it won't flex or expand, and it is less apt to leak.
By comparison, the factory original bleeder block
body is plastic, with a metal bleeder insert. This
design is more apt to distort from pressure and
heat, and is also more prone to fluid leakage at the
bleeder screw insert seal.
The internal fluid passage is narrower, creating a
fluid restriction that delays slave cylinder response.
Skill Level 1 - Easy

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ES2586656 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ECS Tuning ES2586656

  • Page 1 VW/Audi 6-Speed Clutch Bleeder Block Installation Instructions - ES2586656/ES2608027 Thank you for purchasing your new ECS Tuning VW/Audi 6-Speed Clutch Bleeder Block, we appreciate your business! The ECS Tuning 6-Speed Clutch Bleeder Block has features not found in the original factory-installed bleeder block.
  • Page 2 Magnetic Drain & Fill Plugs - OR - ECS Exact-Fit Clutch Line ECS Solid Shifter Cable ECS Billet Shifter Cable End Link Bushings End Links © 2019 ECS TUNING 1000 SEVILLE RD. WADSWORTH, OH 44281 1.800.924.5172 WWW.ECSTUNING.COM PAGE 2 OF 15...
  • Page 3: Section 1: Which Kit Do I Need

    ES#2608027 Section 1: Which Kit Do I Need? The ECS Tuning 6-speed Clutch Bleeder Block is available in two kits which fit a wide range of VW & Audi vehicles. The two kits are identical except for a difference in the fluid seal used to connect the hose from the clutch master cylinder to the bleeder block.
  • Page 4: Section 2: Installing The New Bleeder Block

    For tips on how to get at the remaining retainer clip. bleeder block on MK4, MK5, and MK6 models, see the photo sequences which start on Page Table of Contents © 2019 ECS TUNING 1000 SEVILLE RD. WADSWORTH, OH 44281 1.800.924.5172 WWW.ECSTUNING.COM PAGE 4 OF 15...
  • Page 5: Section 3: Grommet Seal Installation Procedure

    6) The top image shows the grommet seal improperly the new ECS Bleeder Block as shown. installed, the bottom image shows it installed correctly. Table of Contents © 2019 ECS TUNING 1000 SEVILLE RD. WADSWORTH, OH 44281 1.800.924.5172 WWW.ECSTUNING.COM PAGE 5 OF 15...
  • Page 6: Section 4: Bleeding The Hydraulic System

    Section 4: Bleeding the Hydraulic System To make bleeding the clutch hydraulic system an easy one-man job, your ECS Tuning Bleeder Block has a one-way valve built into the bleeder screw. There’s no need for power or vacuum bleeding equipment.
  • Page 7: Section 5: Mk4 - Accessing The Clutch Bleeder Block

    Unbolt the Battery Hold Down Using a long extension and a 13mm ratchet, loosen and remove the battery hold down bolt and bracket. Table of Contents © 2019 ECS TUNING 1000 SEVILLE RD. WADSWORTH, OH 44281 1.800.924.5172 WWW.ECSTUNING.COM PAGE 7 OF 15...
  • Page 8: Remove The Battery

    With the battery tray removed, the old bleeder block is clearly visible (arrow), located between the wiring harness connector and the transmission pivot arm. Now you can install your new ECS Tuning Clutch Bleeder Block using the steps outlined Page 4 Page...
  • Page 9: Section 6: Mk5 - Accessing The Clutch Bleeder Block

    With the air hose removed, the old bleeder block is exposed (arrow), located between the starter motor and shift relay pivot arm. Now you can install your new ECS Tuning Clutch Bleeder Block using the steps outlined Page 4 Page...
  • Page 10: Section 7: Mk6 - Accessing The Clutch Bleeder Block

    T25 Torx driver, remove the two air scoop attachment screws. Remove the Air Intake Scoop After removing the screws, grab the air scoop and remove it. Table of Contents © 2019 ECS TUNING 1000 SEVILLE RD. WADSWORTH, OH 44281 1.800.924.5172 WWW.ECSTUNING.COM PAGE 10 OF 15...
  • Page 11: Remove The Air Duct

    Unbolt the Air Box Using a long 5mm hex driver, remove the air filter box retainer bolt. Table of Contents © 2019 ECS TUNING 1000 SEVILLE RD. WADSWORTH, OH 44281 1.800.924.5172 WWW.ECSTUNING.COM PAGE 11 OF 15...
  • Page 12 Install the Bleeder Block With the air box removed, the bleeder block is clearly exposed and accessible. Now you can install your new ECS Tuning Clutch Bleeder Block using the steps outlined Page 4 Page 5, and the bleeding in-...
  • Page 13: Section 8: Mk7 - Accessing The Clutch Bleeder Block

    If equipped, remove it at this time by pinching the sides of the tube end together and pulling it off the air box. Table of Contents © 2019 ECS TUNING 1000 SEVILLE RD. WADSWORTH, OH 44281 1.800.924.5172 WWW.ECSTUNING.COM...
  • Page 14 Install the Bleeder Block With the air box removed, the bleeder block is clearly exposed and accessible. Now you can install your new ECS Tuning Clutch Bleeder Block using the steps outlined on Page Page 5, and the bleeding instructions on...
  • Page 15 VW/AUDI 6-SPEED CLUTCH BLEEDER BLOCK INSTALLATION ES#2586656 ES#2608027 Your ECS Clutch Bleeder Block installation is complete! Thank you for purchasing the ECS Tuning VW/Audi 6-Speed Clutch Bleeder Block Visit us at www.ecstuning.com We appreciate your business, and we hope this tutorial has been helpful.
