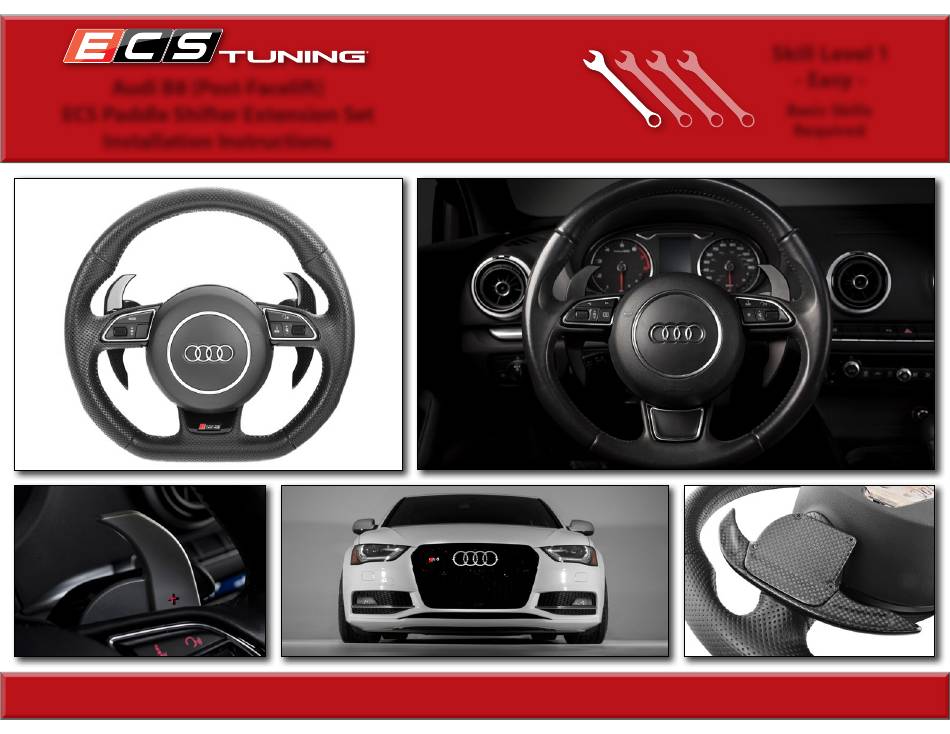

Skill Level 1
- Easy -
Audi B8 (Post-Facelift)
ECS Paddle Shifter Extension Set
Basic Skills
Required
Installation Instructions
Proper service and repair procedures are vital to the safe, reliable operation of all motor vehicles as well as the personal safety of those performing the repairs. Standard safety procedures and precautions (including
use of safety goggles and proper tools and equipment) should be followed at all times to eliminate the possibility of personal injury or improper service which could damage the vehicle or compromise its safety.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ECS Tuning ES#2992723
Summary of Contents for ECS Tuning ES#2992723
- Page 1 Skill Level 1 - Easy - Audi B8 (Post-Facelift) ECS Paddle Shifter Extension Set Basic Skills Required Installation Instructions Proper service and repair procedures are vital to the safe, reliable operation of all motor vehicles as well as the personal safety of those performing the repairs. Standard safety procedures and precautions (including use of safety goggles and proper tools and equipment) should be followed at all times to eliminate the possibility of personal injury or improper service which could damage the vehicle or compromise its safety.
- Page 2 INTRODUCTION Today we are going to install our ECS Tuning Carbon Fiber Paddle Shift Extension Set into a Post-Facelift Audi B8 RS5, but keep in mind the process is the same for all finishes and B8 vehicles. These Paddle Shift Extension Sets have been designed by our engineers to install on top of the factory paddles, without compromising their feel or operation.
- Page 3 Carbon Fiber Downshift Paddle Extension (QTY 1) Carbon Fiber Upshift Backing Plate (QTY 1) M3x6mm Screw (QTY 8) Carbon Fiber Downshift Backing Plate (QTY 1) © 2019 ECS TUNING 1000 SEVILLE RD. WADSWORTH, OH 44281 1.800.924.5172 WWW.ECSTUNING.COM Table of Contents...
- Page 4 Billet Upshift Paddle Extension (QTY 1) Billet Downshift Paddle Extension (QTY 1) Billet Upshift Backing Plate (QTY 1) M3x6mm Screw (QTY 8) Billet Downshift Backing Plate (QTY 1) © 2019 ECS TUNING 1000 SEVILLE RD. WADSWORTH, OH 44281 1.800.924.5172 WWW.ECSTUNING.COM Table of Contents...
- Page 5 GENERAL PREPARATION AND SAFETY INFORMATION ECS Tuning cares about your health and safety, please read the following safety information. This information pertains to automotive service in general, and while it may not pertain to every job you do, please remember and share these important safety tips.
- Page 6 Begin by lowering the steering wheel and pulling it out as far as it will go. Step 2: Turn the steering wheel 90 º clockwise so that the downshift paddle is facing upwards. © 2019 ECS TUNING 1000 SEVILLE RD. WADSWORTH, OH 44281 1.800.924.5172 WWW.ECSTUNING.COM Table of Contents...
- Page 7 DO NOT fully tighten them. These screws must remain loose until we align the "-" symbol on the OE paddle with the "-" slot in the paddle extension. © 2019 ECS TUNING 1000 SEVILLE RD. WADSWORTH, OH 44281 1.800.924.5172 WWW.ECSTUNING.COM...
- Page 8 Tighten the backing plate screws until they make contact + 1/8 turn (DO NOT overtighten these screws). Repeat these steps to install the upshift paddle extension. Your ECS Paddle Shift Extension Set installation is now complete! © 2019 ECS TUNING 1000 SEVILLE RD. WADSWORTH, OH 44281 1.800.924.5172 WWW.ECSTUNING.COM Table of Contents...
- Page 9 CARBON FIBER CLEANING & CARE ECS Tuning Carbon Fiber Intakes are clear coated for excellent finish durability and UV resistance right out of the box. Carbon fiber can be washed with any gentle cleanser or soap. If it is safe for the paint on your car, it will be safe for the carbon fiber.
- Page 10 SCHWABEN - BUILD THE ULTIMATE TOOL COLLECTION At ECS Tuning, we carry a line of high quality Schwaben Tools and Equipment to help you build your ultimate tool collection. Never before has affordability and quality been so closely related. Our entire Schwaben line is subjected to strict in house testing for strength and durability. See what we have to offer and equip your garage without breaking the bank.
- Page 11 FITNESS FOR A PARTICULAR PURPOSE OR ANY OTHER WARRANTY IS MADE OR TO BE IMPLIED WITH all times to eliminate the possibility of personal injury or improper service which could damage the RESPECT TO THIS MATERIAL. In no event will ECS Tuning, Incorporated or its affiliates be liable for any vehicle or compromise its safety.
