Installation
3.0
1.
Make sure the Unit is secured firmly using two Mounting Screws (included with system).
Mounting hardware may be needed depending on install.
2. Connect tubing from Cold Water Supply, or from the Outlet of Under-Sink Water Filter
System (when applicable), to the Bottom Inlet of the Unit using Quick-Connect Fitting.
3. Connect tubing from Cold Water Faucet to the Top Outlet using Quick-Connect Fitting.
4. Fill and pressurize the System to check for leaks in the plumbing. If a leak is found,
adjust as needed and re-check your plumbing.
5. Plug 12VDC Power Adapter into an appropriate AC electrical outlet. To prevent risk of shock,
ensure that the AC outlet and power adapter comply with local electrical safety codes.
6. Plug in the 12VDC Adapter to the Bottom Power Port. The system should power on.
IMPORTANT: DO NOT OPERATE PRODUCT WITHOUT CONNECTING TO COLD WATER SUPPLY.

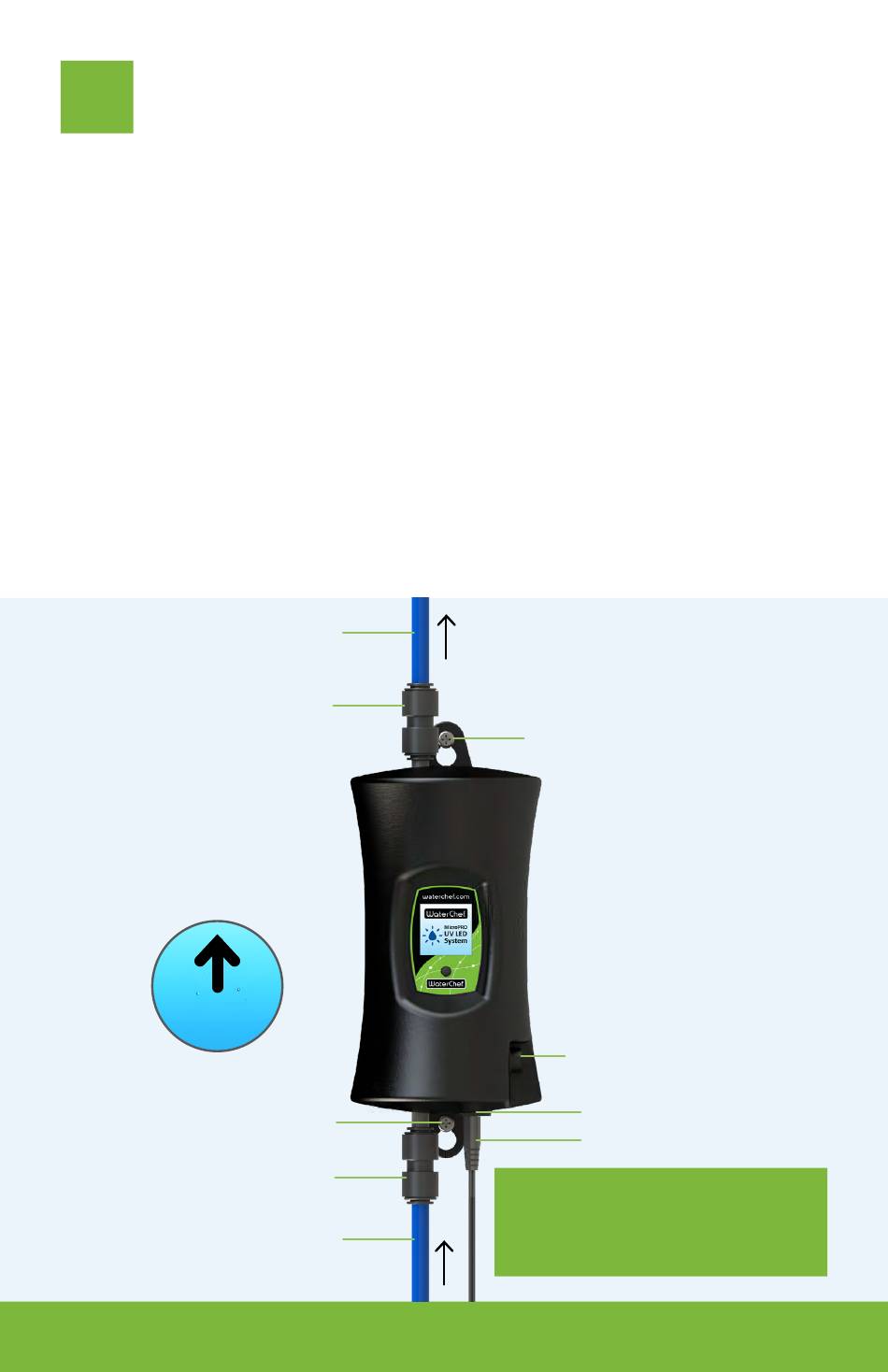

Water Outlet Tubing
(to cold water faucet)
Quick-Connect Fitting
for 3/8" OD tube
UNIT MUST BE
INSTALLED
VERTICALLY WITH
WATER INLET
ON BOTTOM
WATER FLOW
DIRECTION
Mounting Screw
Quick-Connect Fitting
for 3/8" OD tube
Water Inlet Tubing (from cold water line
or under-sink water filter system )
Mounting Screw
MicroPRO
UV LED
Controller
IEP plug (for optional
expansion modules)
Power Port
12VDC Power Adapter
When installing with a WaterChef
System: The blue tubing provided with the
MicroPRO may be used to connect the Water
Inlet to the U9000 Intelligent Monitor Outlet.
U9000
®
3
