Summary of Contents for WaterChef MicroPRO UV LED

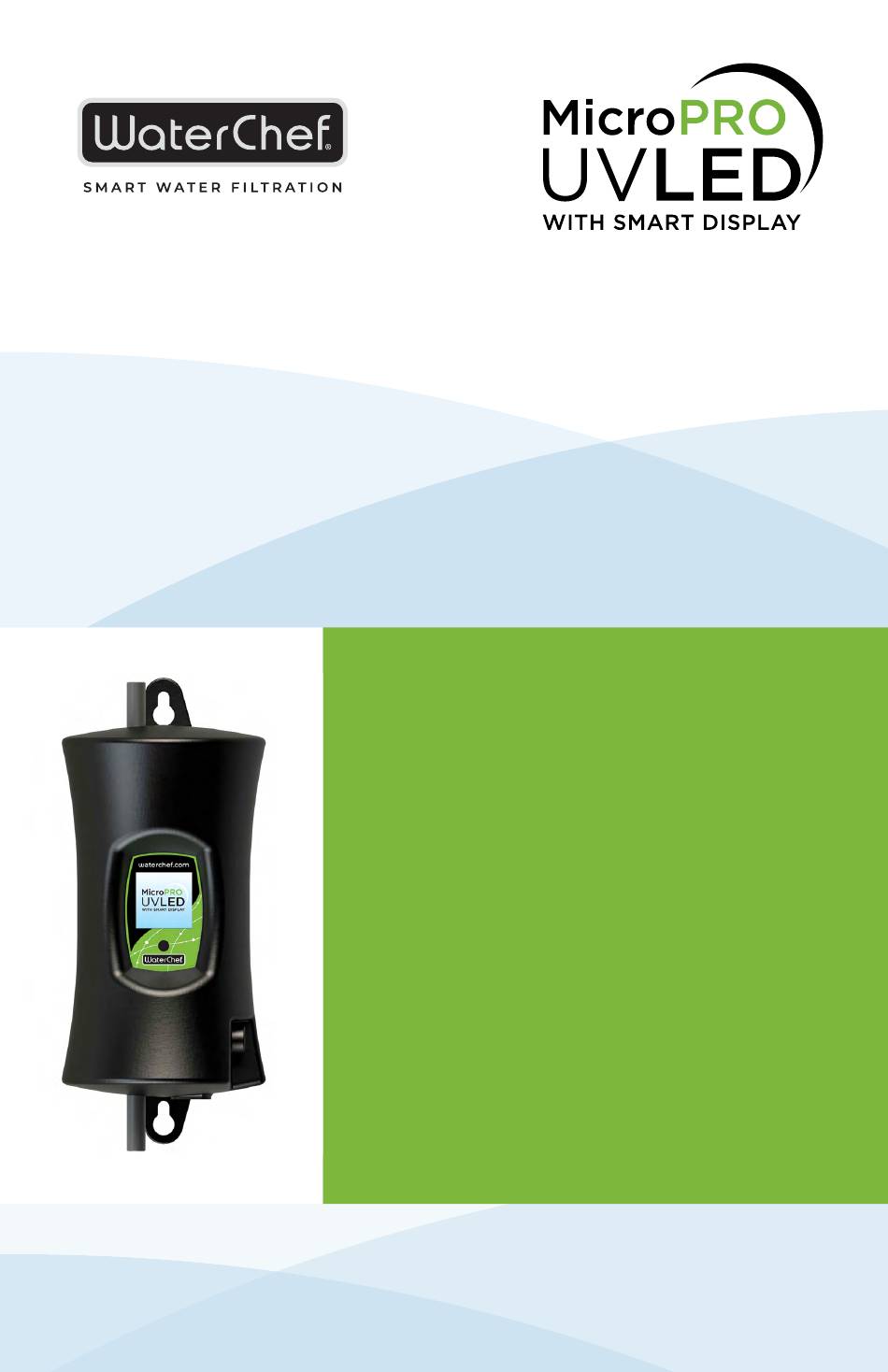

- Page 1 FULLY INTEGRATED LED BASED UV PURIFICATION SYSTEM Installation & Operation Instructions MicroPRO Module with Smart Display...
-
Page 2: Table Of Contents
MicroPRO UV LED Operational Screens . . . . . . . . . . . . . . . . . . -
Page 3: Safety Considerations
4. Do not operate the unit if it has any damaged or missing components. 5. Do not open or attempt to open the MicroPRO UV LED System or power adapter. 6. For use with cold water supply only. Install this system with a dedicated, single- temperature faucet attached to your cold water line. -
Page 4: Before You Begin
2 .3 Location Install the unit between the cold water line and cold water faucet. If you are pairing the UV unit with an under-sink filtration system, such as the WaterChef U9000, ® Cold Water Faucet install the UV unit between the filter system and filter faucet. -
Page 5: Installation
IEP plug (for optional expansion modules) Power Port Mounting Screw 12VDC Power Adapter Quick-Connect Fitting When installing with a WaterChef U9000 ® for 3/8” OD tube System: The blue tubing provided with the MicroPRO may be used to connect the Water Water Inlet Tubing (from cold water line Inlet to the U9000 Intelligent Monitor Outlet. -
Page 6: Operation
Refer to Operational Screens, System Troubleshooting, and Specifications sections for details. 4 . 1 MicroPRO UV LED Controller A full color LCD screen provides the user with a detailed description of the system’ s performance in addition to providing any applicable fault messages and system diagnostics. -
Page 7: Micropro Uv Led Operational Screens
1-800-879-8909 waterchef.com CONTACT QUESTIONS? QR CODE A QR code (Quick Response code) links to the Contact page on WaterChef’ s website. INFO SCREEN Part Number: Displays Part Number, On/Off Cycles, and On/Off UV Cycles: System Running Time Total Running Time:... -
Page 8: System Troubleshooting
System Troubleshooting Display Problem Resolution Alarm A major alarm has occurred which prevents proper Perform action to fix disinfection of the active major alarm. water. This screen Refer to the Alarms toggles every 4 seconds listed below. to alert the user water may not be safe for consumption. -
Page 9: System Specifications
Specifications WaterChef MicroPRO UV LED System ® Flow Rate @ 1.5 GPM (10 mJ/cm at 95% UVT) 5.6 lpm Flow Rate @ 1.3 GPM (16 mJ/cm at 95% UVT) 4.9 lpm Flow Rate @ 0.6 GPM (30 mJ/cm at 95% UVT) 2.4 lpm... -
Page 10: Expansion Modules
Connect any device to the system and all subsequent devices are then connected into the female end of last device added in a “daisy chain” configuration. The following optional expansion modules are available for use on WaterChef MicroPRO Systems. Contact WaterChef Customer Care for purchase information. -
Page 11: Warranty
Warranty WaterChef® MicroPRO UV LED Systems are warranted to the original user only to be free of defects in material and workmanship for a period as specified below. This warranty only applies to the original purchaser and is not transferable. - Page 12 3760 Barron Way ™ Reno, NV 89511 tel: 1-800-879-8909 intl: 1-775-359-9500 email: customercare@waterchef . c om www.waterchef.com EPA Establishment #088776-CAN-001 MKT-WC1012 r24.03...
