Rocstor TrueReach Y10G012-B1 Quick Start Manual

®
TrueReach
8K
60Hz Ultra HD 1 to 4
HDMI SPLITTER
™
User Manual
Y10G012-B1
Important safety notice
1. Do not expose this device to rain, moisture and liquid.
2. Do not put any stu into the device.
3. Do not disassemble or repair this device without quali ed service
technician.
4. Make sure the speci cation matched if using 3rd party DC adapters.
Introduction
This TrueReach HDMI Splitter is an 8K HDMI splitter designed to split one
HDMI input signal into four HDMI output signals. Utilizing the latest HDMI2.1
standard, it supports video signal transmission up to 8K@60Hz/4K@120Hz.
With HDR10+, Dolby Vision high dynamic range image, and Variable Refresh
Rate (VRR) technology, the screen display is exceptionally detailed and
smooth. This splitter nds wide applications in TV stores, cinemas, outdoor
advertising, home entertainment, and more.
Features
• Divides one HDMI input signal into four HDMI display device output signals.
• Supports resolutions up to 8k@60Hz/4k@120Hz, with backward
compatibility.
• Includes support for HDR10+, Dolby Vision for high dynamic range images.
• Supports Variable Refresh Rate (VRR) technology.
• Compatible with HDMI 3D technology.
• Features EDID passthrough and automatic downscaling for optimal signal
transmission.
• Provides S/PDIF digital audio separation output capability.
• Allows for rmware upgrading via Micro-USB port for easy updates.
• Equipped with lightning protection, surge protection, and ESD protection for
• added durability.
• Supports 7x24 uninterrupted working, ensuring stable and reliable
operation.
2
Package Contents
Splitter x1 DC5V/2A x1 User Manual x1
Grounding
Screw x1
3

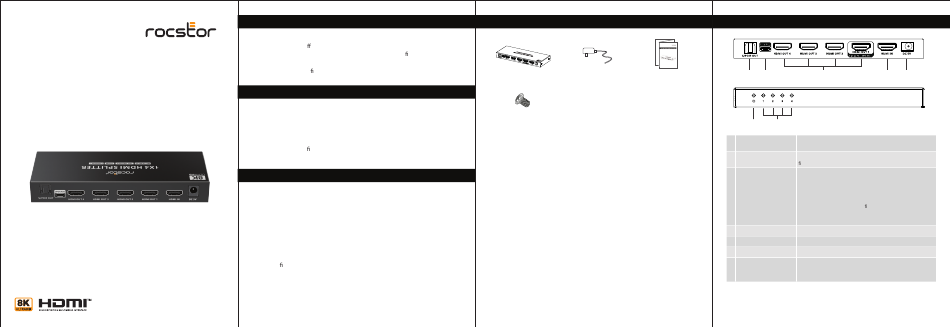

Panel Description
① ② ③ ④
⑥ ⑦
Connect to the audio device with digital optical
① S/PDIF Out
audio cable
Connect the computer with Micro USB cable for
② Firmware Upgrading
rmware upgrading
Connect with HDMI display devices
Note: To ensure that all monitors can show at their
maximum resolution or the maximum resolution
that all monitors are compatible with, please
③
HDMI Out 1/2/3/4
connect the monitor with highest resolution to
HDMI Output 1, which is con gured as the port
that can output the maximum resolution (via EDID
management).
④ HDMI In Connect HDMI signal source
DC5V Power Input Connect with DC 5V/2A power adapter
⑤
⑥ Power Light Steady on: The power is on
Corresponding to 4 HDMI outputs, the indicator
⑦ HDMI Signal Light
light is steady on when the signal transmission is
1/2/3/4
normal
4
⑤
