Rocstor Y10A235-B1 User Manual

User Manual
1x2 4K 30Hz HDMI® 2-Port Video Splitter
Includes Power Adapter - Black
Congratulations
Thank you for purchasing this premium Rocstor product. For optimum performance and
safety, please read these instructions carefully before connecting, operating or using this
product. Please keep this manual for future reference.
Introduction
This is a premium Rocstor HDMI Amplifier Splitter is an HDMI splitter with two outputs.
It distributes the input of the HDMI signal into the two identical outputs simultaneous-
ly. It adopted pigtail type design to reduce cost and provide more convenience for
customers. It supports full 3D format and 4Kx2K. Its video amplifier bandwidth can be
up to 3.4 Gpbs/340MHz.
This HDMI Amplifier Splitter offers solutions for HDTV retail and show site, HDTV, STB,
DVD and Projector factory, noise, space and security concerns, data center control,
information distribution, conference room presentation, school and corporate training
environments.
Package Contents
Before attempting to use this unit, please check the packaging and make sure
the following items are contained in the Packaging:
• Main unit x1
• User Manual x1
• 5V DC power supply
Operation
1- Plug the Pigtail of the HDMI Splitter into HDMI source device.
2- Connect output devices to the outputs of the HDMI Splitter by using HDMI
cable. (HDMI cables are optional)
*please refer to the connection diagram section.
3- Insert the DC side of 5v power supply into it and then connect the AC side of
the power supply into the wall outlet.

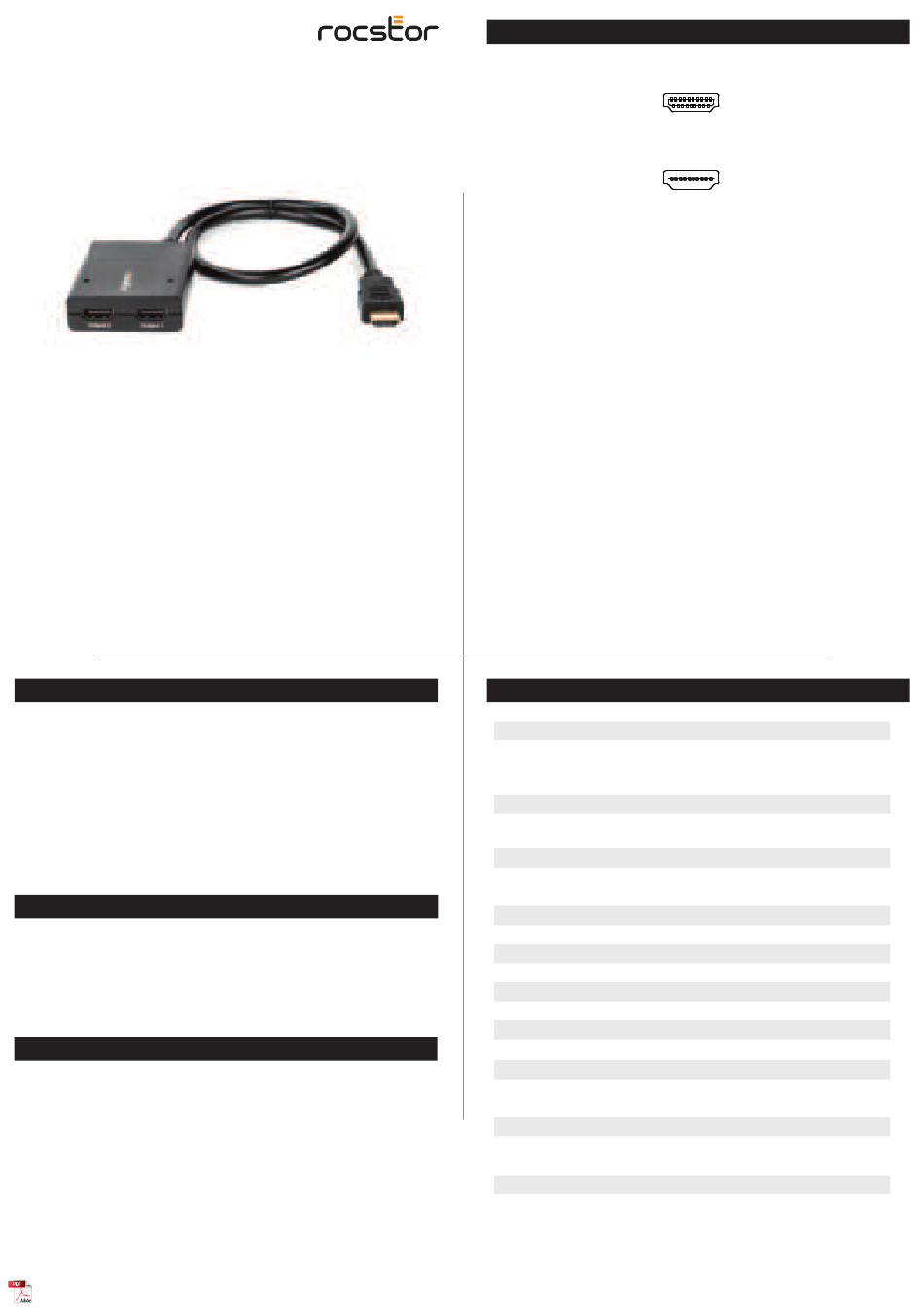

Y10A235-B1
®
Features
Input:
HDMI Male x1
Output:
HDMI Female x2
• Easy to Use: Install in seconds, no need of setting.
• One HDMI Input, two HDMI outputs
• Supports Full 3D and 4Kx2K resolution.
• Supports 340MHz/3.4Gbps per channel (10.2Gbps all channel)
bandwidth.
• Supports 12bit per channel (36bit all channel) deep color.
• Supports HDCP 1.4
Specification
Input / Output Connector
Input DC Signal
Output
Maximum Single Link Range
Operating Frequency
Vertical Frequency Range
Video Amplifier Bandwidth
Resolutions(HDTV)
Interlaced(50&60Hz)
Progressive(50&60Hz)
Warranty
Environmental
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
Regulatory Approvals
Certifications
Mechanical
Size(L-W-H)
Weight(Net)
Power Requirement
External Power Supply
Power Consumption
Accessory
User Manual
AC Power Adapter
5 volts p-p (TTL)
HDMI (with full 3D and 4Kx2K)
4K x 2K
50/60Hz
3.4Gbps/340MHz
480i,576i,1080i
480p,576p,720p,1080p,4Kx2K
2 Year
0°C to + 45°C - (32°F to + 113°F)
10% to 90 % RH (no condensation)
-10°C to + 70°C - (14°F to + 158°F)
10% to 90 % RH (no condensation)
FCC, CE
63x54x18mm - (2.4"x2.1"x0.7")
167gr - (5.90oz)
DC 5V/1A
2.1W
English Version
US standard, UK standard and so on
