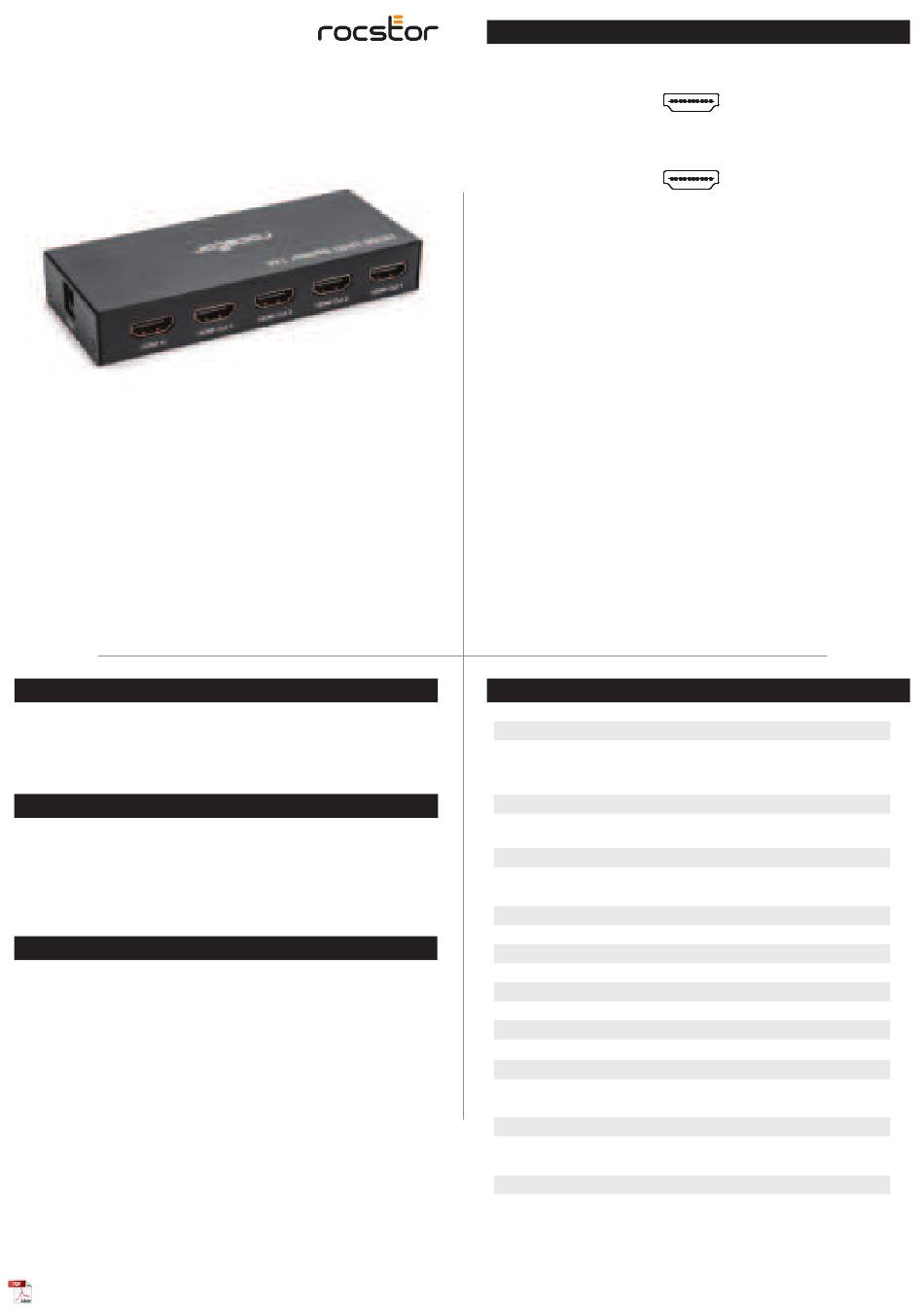

Rocstor Y10C294-B1 User Manual

User Manual
4-Port HDMI® Splitter - 4K/60Hz -1x4 Way HDMI®
Supports HDR & (EDID) Includes 5V 1A power adapter
Congratulations
Thank you for purchasing this premium Rocstor product. For optimum performance and
safety, please read these instructions carefully before connecting, operating or using this
product. Please keep this manual for future reference.

Introduction

This is a premium Rocstor high-performance and small-sized HDMI UHD Splittter with
hot plug and iron shell.It distributes the input of the HDMI signal into four identical
outputs at the simultaneously. It provides high performance audio and video output
through HDMI cables up to 4kx2k@60Hz resolution and is capable of receiving and
transmitting up to 6Gbps/600MHz bandwidth.

Package Contents

Before attempting to use this unit, please check the packaging and make sure
the following items are contained in the Packaging:
• Main unit x1
• User Manual x1
• 5V DC power supply

Connection Procedure

1. Connect the HDMI video source to the HDMI input of the Splitter with one
HDMI cable (HDMI cables are optional)
*Please refer to connection diagram section
2. Connect the four outputs of the Splitter to four displays
3. Turn on the power
Note:
To avoid product damage, please connect this product to source and displays
before turning on the power. If the product doesn't work, please press the "Reset"
button to reset the product.
Y10C294-B1
®

Features

Input:
HDMI x1
Output:
HDMI x4
• Easy to use: Install in seconds, no setup needed.
• One HDMI Input, four HDMI outputs
• Supports 12-bit Deep Full HD, Full 3D, HDR and 4K2K 60Hz video
• Supports HDMI wide frequency max up to 600MHZ
• Supports HDCP 2.2
Specification

Input / Output Connector

Input
Output

Maximum Single Link Range

Operating Frequency

Vertical Frequency Range
Video Amplifier Bandwidth

Resolutions(HDTV)

Interlaced(50&60Hz)
Progressive(50&60Hz)

Warranty

Environmental
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
Regulatory Approvals
Certifications
Mechanical
Size(L-W-H)
Weight(Net)

Power Requirement

External Power Supply
Power Consumption
Accessory
User Manual
HDMI x1
HDMI x4
Full 3D and 4kx2k@60Hz
24/30/50/60Hz
6Gbps/600MHz
480i,576i,1080i
Max 4kx2k@60Hz
2 Year
0°C to + 45°C - (32°F to + 113°F)
10% to 90 % RH (no condensation)
-10°C to + 70°C - (14°F to + 158°F)
10% to 90 % RH (no condensation)
FCC, CE
123x51.2x20mm - (4.8"x2"x0.7")
210.7g - (0.46Lbs)
5V/1A
2.5W
English Version
