Summary of Contents for Vents NB MICRA 100

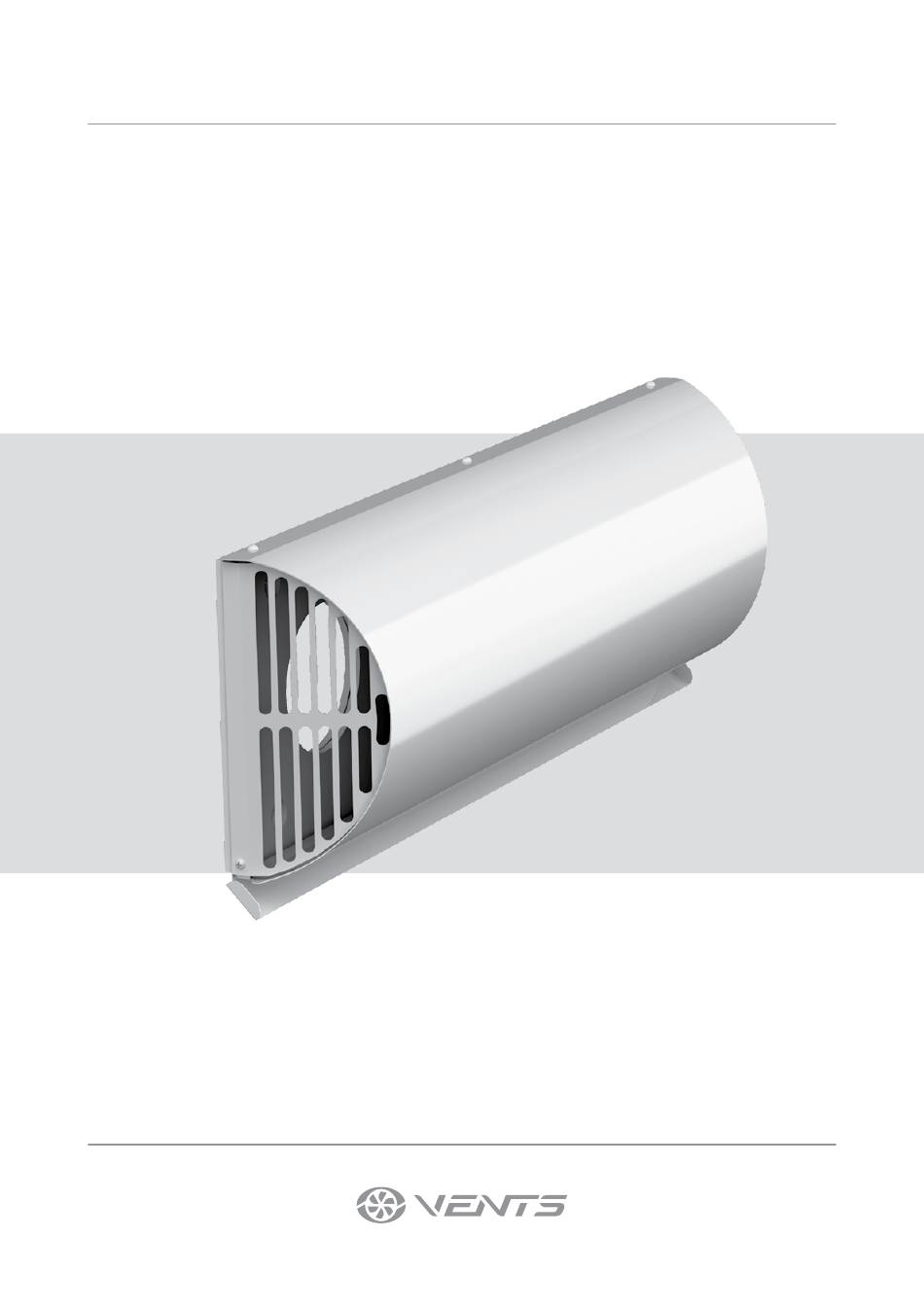

- Page 1 USER’S MANUAL NB MICRA 100 NB MICRA 110 NB MICRA 200 Outer hood...
- Page 2 Ø dx4 Ø Dx2 Dimensions [mm] Model Ø d Ø D NB MICRA 100 NB MICRA 110 NB MICRA 200 INSTALLATION WARNING! If the mounting place is located at high altitude please refer to a mounting company possessing an appropriate mounting equipment! 1.
- Page 3 2. Disassemble hood enable access to the fastening holes. Remove the screws that secure the front part of the hood and remove it. 3. Mark the mounting holes using the back part of the ventilation hood. Drill 4 holes for 6x40 dowels to a depth of 50 mm.
- Page 4 V137-3EN-02...
