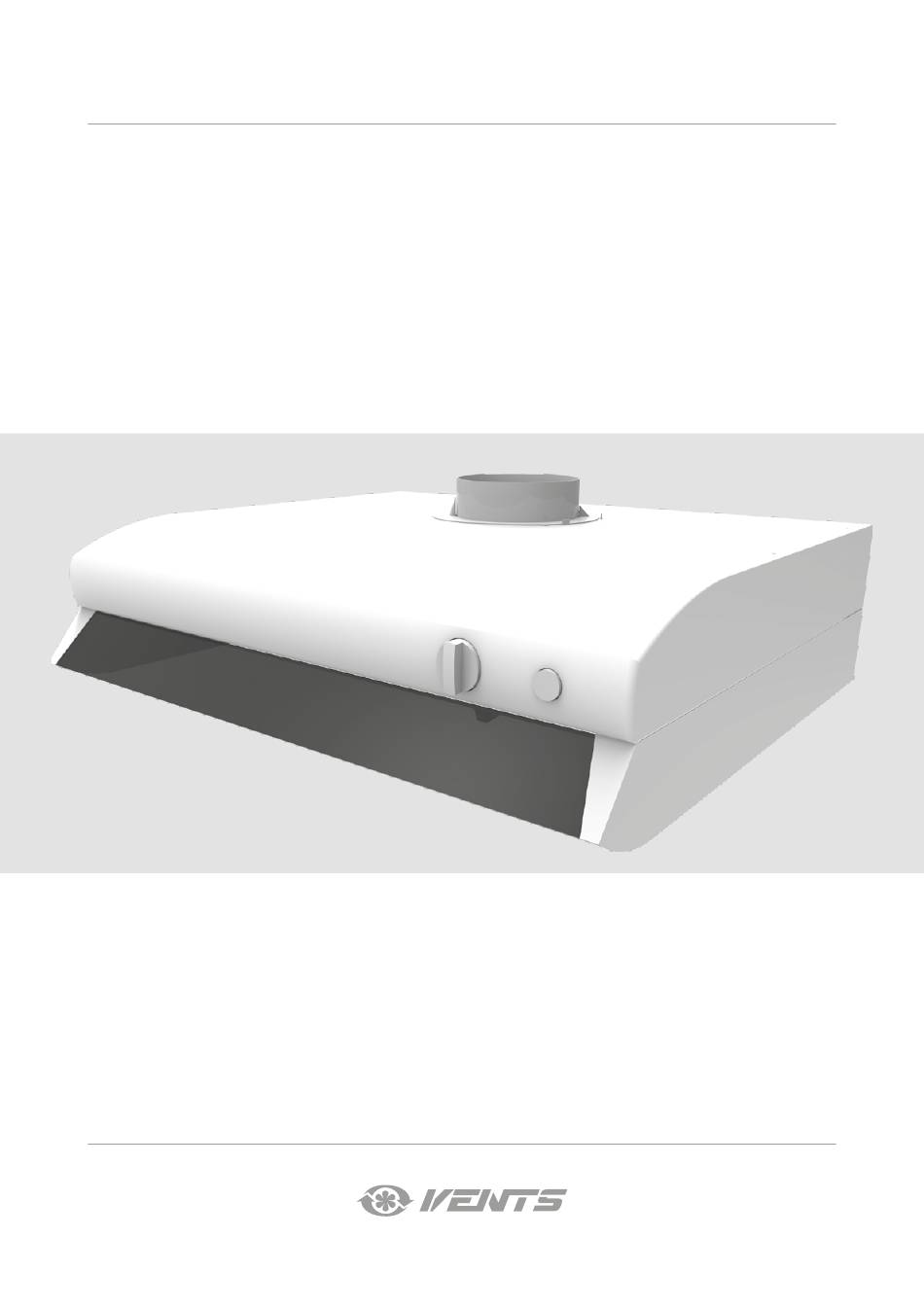

- Page 1 USER’S MANUAL КН-1 Kitchen hood...
-
Page 2: Table Of Contents
КН-1 CONTENTS Purpose ........................................ 3 Overall dimension ..................................3 Installation ......................................3 Air flow control ....................................4 Connection to power mains ..............................7 Technical maintenance ................................8 Manufacturer’s warranty ................................9 Certificate of acceptance ................................10 Seller information ..................................10 Installation certificate .................................. -
Page 3: Purpose
PURPOSE The kitchen exhaust hood is designed for installation into ventilation systems of small and medium sized spaces. THE UNIT SHOULD NOT BE OPERATED BY CHILDREN OR PERSONS WITH REDUCED PHYSICAL, MENTAL, OR SENSORY CAPACITIES, OR THOSE WITHOUT THE APPROPRIATE TRAINING. -
Page 4: Air Flow Control
КН-1 The exhaust is mounted under or inside a kitchen cabinet. The unit also allows console mounting with the optional accessories purchased separately. Flue system connection The exhaust hood is connected by means of a 125 mm air duct Ø Warning! When using flexible air ducts ensure a tight connection with the flange and avoid excessive bending. - Page 5 Open the damper and remove throttle flap C. Use the markings to cut out a hole in the damper for supply air flow control. The cutting marks are applied to the damper in accordance with the supply air balancing diagram (see Page 6). When re-installing the damper make sure that guide D is properly mounted in place. The pressure differential is measured via bleed pipe at measuring point E upstream of the union joint.
- Page 6 КН-1 BALANCING DIAGRAM: MAIN VENTILATION 1 2 3 4 5 6 7 8 9 10 11 12 Static air pressure drop [Pa] Lpa=45 Lwa=49 Lpa=40 Lwa=44 Lpa=35 Lwa=39 Lpa=30 Lwa=34 Lpa=25 Lwa=29 Air flow [l/s] 8 9 10 25 30 35 40 45 50 LpA —...
-
Page 7: Connection To Power Mains
CONNECTION TO POWER MAINS DISCONNECT THE UNIT FROM POWER MAINS PRIOR TO ANY OPERATIONS. THE UNIT MUST BE CONNECTED TO POWER MAINS BY A QUALIFIED ELECTRICIAN. THE RATED ELECTRICAL PARAMETERS OF THE UNIT ARE SHOWN ON THE RATING PLATE. ANY TAMPERING WITH THE INTERNAL CONNECTIONS IS PROHIBITED AND WILL VOID THE WARRANTY. -
Page 8: Technical Maintenance
КН-1 TECHNICAL MAINTENANCE Maintenance operations of the unit are required twice per month. They include general cleaning of the unit and the following operations: 1. Filter maintenance. To remove the filter cartridge press on the front latches. Remove the filter and the fabric insert by releasing the detent. Wash the filter in a warm detergent solution. Alternatively put the filter in a dishwasher. -
Page 9: Manufacturer's Warranty
MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Council Directive 2014/30/EU, Low Voltage Directive 2014/35/ EU and CE-marking Directive 93/68/EEC. This certificate is issued following test carried out on samples of the product referred to above. The manufacturer hereby warrants normal operation of the unit for 24 months after the retail sale date provided the user's observance of the transportation, storage, installation, and operation regulations. -
Page 10: Certificate Of Acceptance
КН-1 CERTIFICATE OF ACCEPTANCE Unit Type Kitchen hood Model KH-1 Serial Number Manufacture Date Quality Inspector’s Stamp SELLER INFORMATION Seller Address Phone Number E-mail Purchase Date This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are acknowledged and accepted. - Page 11 www.ventilation-system.com...
- Page 12 V169EN-01...
