Summary of Contents for NOVACARE VARIOXX2

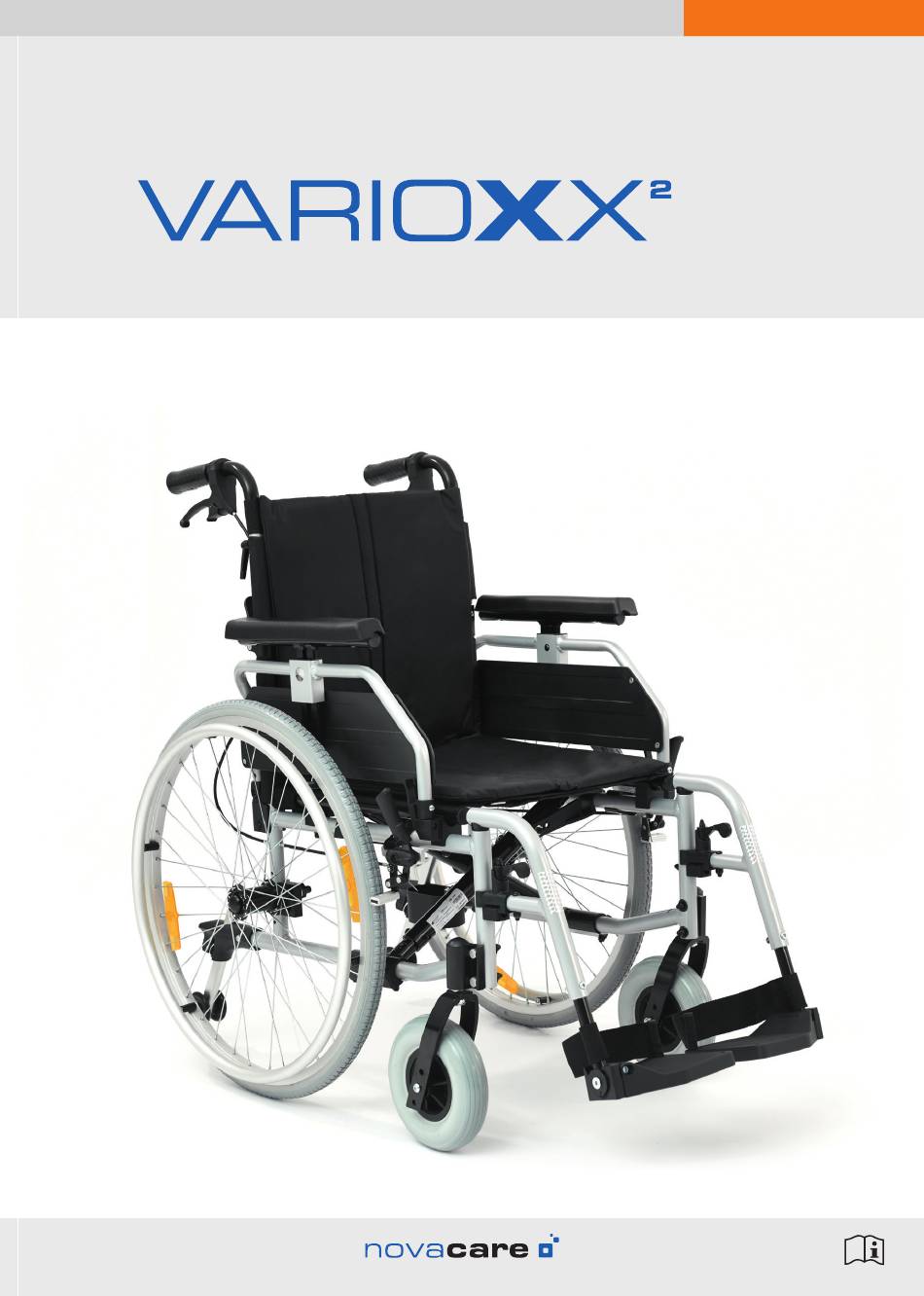

- Page 1 Instruction manual Lightweight wheelchair...
-
Page 2: Table Of Contents
Com- missioning by non-professional users or medical laypersons must not be carried out without sufficient instruction. The product and the accessories designated by novacare gmbh may only be used in accor- ®... -
Page 3: Product Information
The novacare ®... - Page 4 Components 1. backrest 11. handrim 2. armrest cushion 12. quick-release axle & centre of gravity 3. side part 13. drive wheel tyres 4. seat 14. backrest lock 5. legrest lock 15. Bolt for adjusting the push handle 6. leg rest 16.
- Page 5 Intended use The novacare VarioXX lightweight wheelchair is designed for people who are unable to walk, have ® difficulty walking or are restricted to a seated position for individual use when transporting themselves and others indoors and outdoors. Your wheelchair should be used on safe surfaces where all 4 wheels have sufficient contact with the ground.
- Page 6 Technical Data Product description VARIOXX2 VARIOXX2 with attendant brakes with attendant drum brakes Item No. 982001 982000 Description Weight 17,5 kg 17,9 kg max. load 130 kg 130 kg Folding frame wheelchair side frame Aluminium wheelchair side frame Aluminium with steel brace...
-
Page 7: Installation & Utilization
Accessories The VarioXX lightweight wheelchairs from novacare gmbh may only be used with the accessories ® intended for this purpose. The accessories are available separately from the novacare gmbh customer ® service. 4. Installation & Utilization Environmental conditions The product does not require any special environmental conditions. - Page 8 B. Folding the wheelchair Risk of injury! When folding the wheelchair, be careful not to pinch and injure your fingers. 1. Stand next to the wheelchair and tilt it towards you so that the opposite side is no longer in contact with the ground.
- Page 9 E. Adjusting the height of the anti-tippers 1. Pull the washer and let it snap back into place at the desired height. When adjusting to 47 cm seat height, the anti-tip support rollers must be re- moved. To do this, pull the blue pin out of the anti-tipper support and remove the wheel by pulling it downwards.
- Page 10 4. Now pull the brace to the desired seat width ( 5. Now reinsert the bolts (A), (B), (C) & (D) ( ) and attach the nuts fastening tightly. 6. Replace the cross brace retaining lever and tighten it again with the nuts. 7.
- Page 11 J. Adjusting the backrest height Risk of injury! Hand-tighten the screw connections with the appropriate tool. Risk of injury! All tensioning straps must be sufficiently taut and must not sag. To adjust the backrest height, adjust the height of the entire backrest tube.
- Page 12 M. Adjusting the steering wheels Risk of injury! To avoid unintentional tipping of the wheelchair, make sure that the axle adap- ters of the castor wheels are mounted in the same position on both sides. 1. Loosen the wheel nut and bolt on the front wheel fork and pull it out.
- Page 13 P. Armrests Risk of injury! Keep fingers and clothing away from the underside of the armrests to avoid pinching and injury. Make sure that the armrests are firmly locked before using the wheelchair. Adjusting the armrest height: Press the button on the armrest and raise the pad to the desired height.
- Page 14 R. Handbrake and PU tyres (solid rubber) When using PU_solid rubber tyres, the handbrake can only function if the distance between the brake rubber and the tyre cover is adjusted in such a way that the wheels cannot be moved after the brake is applied.
- Page 15 Sit as far back as possible so that your back is against the backrest. Make sure that your thighs rest on the seat as much as possible. If necessary, adjust the length of the leg rests. B. Driving with the wheelchair The drive wheels are equipped with handrims so that you can move around independently with the wheelchair.
- Page 16 C. Transferring from / to the wheelchair 1. Approach the chair or bed at an angle of approx. 30° to 45°. The castor wheels should be in the "re- verse" position. 2. Apply the handbrakes on both sides. Risk of injury! 3.
- Page 17 Have an attendant assist you when negotiating higher steps or curbs. In doing so, the wheelchair is tilted slightly backwards by the attendant and then driven down the step / curb on the drive wheels. An experienced driver can best negotiate higher steps or curbs backwards alone.
- Page 18 H. Using the wheelchair as a seat in a motor vehicle The wheelchair is constructed and designed for use as a seat in a motor vehicle facing forward. Do not use the wheelchair restraint belt as a seat belt! The wheelchair has been tested using a 5-point restraint belt system (wheelchair) and a 3-point seat belt (user).
- Page 19 J. Securely fastening the user's seat belt 1. Remove both armrests of the wheelchair (> section "Removing the arm- rest"). 2. If present, put on the wheelchair belt. 3. Fasten the vehicle's safety belt according to the manufacturer's instructions.
-
Page 20: Malfunctions & Troubleshooting
This product is suitable for repeated use on additional persons. In general, the applicable national regu- latory requirements for hygienic reprocessing must be observed and fault-free functioning ensured. novacare gmbh expressly recommends reprocessing in accordance with the recommendations of the ®... -
Page 21: Disposal & Environment
Maintenance To maintain the function and safety of your wheelchair, regular checks and maintenance by qualified personnel are necessary. Inspection every 8 weeks • Moving parts of the armrest lock for ease of movement and function. • Check brake lever bearings for smooth running and function. -
Page 22: Abbreviations & Symbols
• for damage and malfunctions caused by natural wear and tear or during transport. • for the replacement of wear parts. • for delivered goods that have been processed, treated or modified without the consent of novacare ® gmbh. - Page 23 • failure to comply with the regulatory requirements relating to regular maintenance and servicing of medical devices. • failure to observe the instructions for use. • in the event of damaged or broken seals. Operators of the present product must observe the regulatory requirements for medical devices applicable at the place of use.
- Page 24 ® Bruchstrasse 48 • 67098 Bad Dürkheim Germany Tel. +49(0)6322-9565-0 • Fax +49(0)6322-9565-65 www.novacare.de Misprints and errors are reserved. Color, material and design changes possible.
