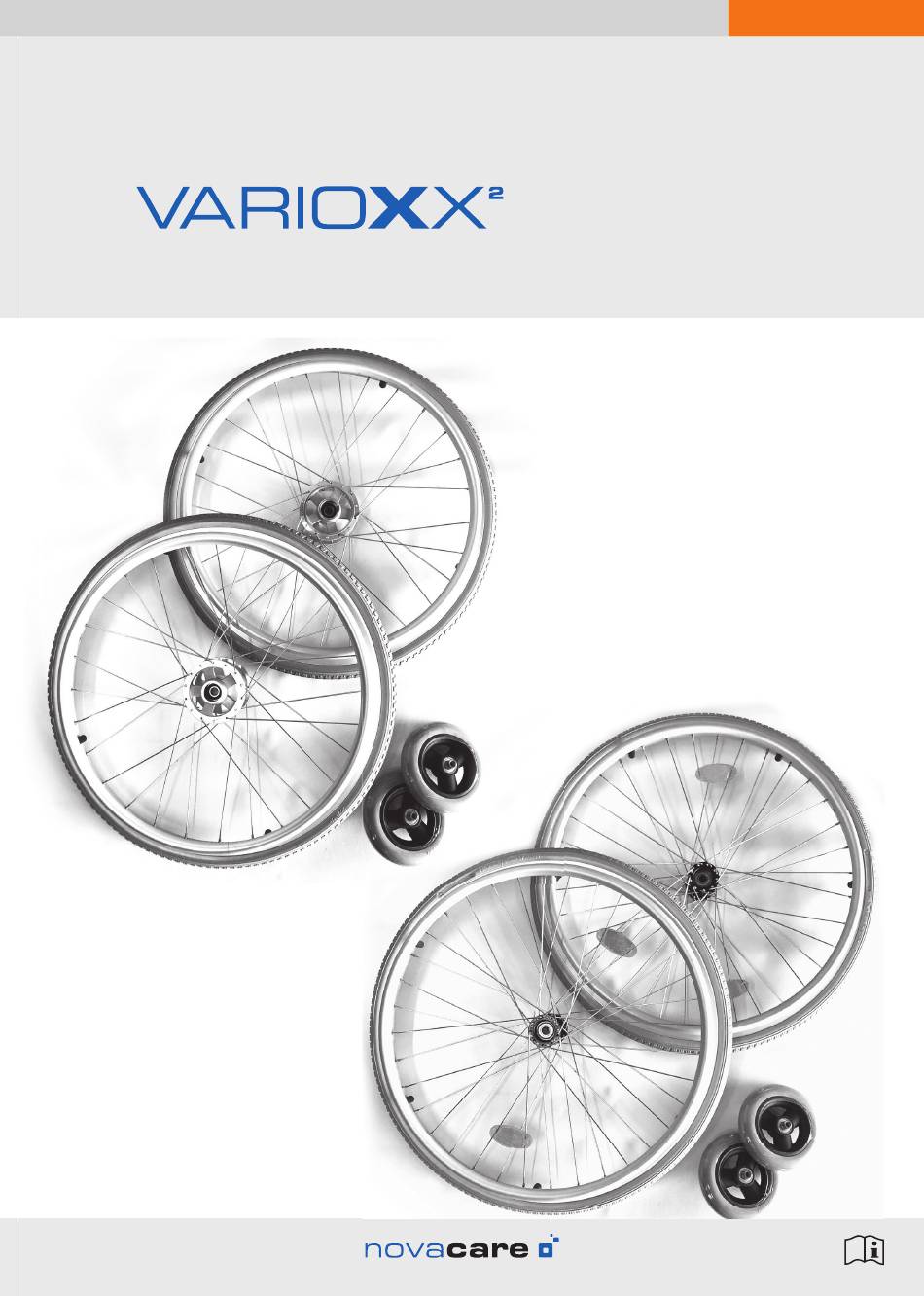

- Page 1 Instruction manual Hemi Kit...
-
Page 2: Table Of Contents
Commissioning by non-professional users or medical laypersons must not be carried out without sufficient instruction. The product may only be used in accordance with these inst- ructions for use. novacare gmbh accepts no liability for the use of the product outside the applications ®... -
Page 3: Produktinformation
! Keep children away from the product and its accessories. There is a risk of injury from swallowing small parts, strangling and pinching limbs. 3. Product information General product description The novacare VarioXX Hemi Kit is used in combination with a VarioXX2 lightweight wheelchair to ®... - Page 4 (osteoporosis, Morb. Scheuermann's disease, ankylosing spondylitis, hyper- kyphosis), genetic connective tissue disorder (osteogenesis imperfecta), joint dysplasia, pronounced car- diovascular insufficiency, reduced general condition. Postoperative mobility, patient transport, inpatient care for the elderly, rehabilitation. novacare BIGreha products can be used to care for plus size patients. ®...
-
Page 5: Installation & Settings
4. Installation & Settings Installation Check the packaging and the product for completeness, functional capability and possible damage upon delivery. Never put a damaged product into operation. Montage Fitting the drive wheels Remove the existing drive wheel from the wheelchair. To do this, press the push button on the quick- release axle inwards and at the same time pull the complete wheel away from the wheelchair frame. - Page 6 Hemi Kit Fitting the castor wheels Unscrew the existing castor wheels from the wheel fork at the axle screws and remove them. Insert the smaller wheel of the VarioXX Hemi-Kit and insert the axle screw and hand-tighten. Proceed in the same way on the other side. Changing the seat height –...
- Page 7 If the drive wheels are in the lowest position (seat height 42 cm), the anti-tipper cannot be adjusted completely. In case you want to drive over stairs or the kerb, you have to dismantle the anti-tipper. Please refer to the user guide of the VarioXX wheelchair.
-
Page 8: Malfunctions & Troubleshooting
Hemi Kit 5. Malfunctions & Troubleshooting Do not repair the wheelchair yourself. Only have the wheelchair repaired by qualified and authorised personnel. Do not use a damaged wheelchair. 6. Maintenance & Repair Clean frame parts and wheels with a soft cloth and/or a soft brush using warm water and a commercially available mild cleaning agent. -
Page 9: Abbreviations & Symbols
• for damage and malfunctions caused by natural wear and tear or during transport. • for the replacement of wear parts. • for delivered goods that have been processed, treated or modified without the consent of novacare ® gmbh. - Page 10 Hemi Kit Notes...
- Page 11 www.novacare.de...
- Page 12 ® Bruchstrasse 48 • 67098 Bad Dürkheim Germany Tel. +49(0)6322-9565-0 • Fax +49(0)6322-9565-65 www.novacare.de Misprints and errors are reserved. Color, material and design changes possible.
