- Page 1 User manual Heat-Pump-Dryer HD90-A3Q397U1 HD90-A3Q397SU1...
- Page 2 Thank you Thank you for purchasing a Haier Product. Please read this instruction carefully before using the appliance. The instruction contains important information which will guide you in order to have a safe and proper installation as well as daily use and maintenance.
-
Page 3: Table Of Contents
Content 1-Safety information ..........................4 2-Installation pictures ..........................7 3-Intended use ............................8 4-Product description ........................... 9 5-Control panel ............................ 10 6-Programs............................15 7-Consumption ........................... 16 8-Suggestions and tips ........................17 9-Daily use ..............................19 10-Care and cleaning ..........................23 11-Troubleshooting ..........................25 12-Installation ............................27 13-Technical data .......................... -
Page 4: 1-Safety Information
1-Safety information WARNING! Before fi rst use Make sure there is no transportation damage. Remove all package and keep it out of children' s reach. A lways move the appliance with two people at least because it is heavy. Daily use This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental ca- pabilities or lack of experience and knowledge if they have been... - Page 5 1-Safety information WARNING! Daily use Do not use the appliance to dry the following items: Items which are not washed. Items which have been contaminated with inflammable sub- stances such as cooking oil, acetone, alcohol, benzine, petrol, kerosene, spot removers, turpentine, waxes, wax removers or other chemicals.
- Page 6 1-Safety information WARNING! Maintenance / cleaning Clean the lint filter and the condenser filter after each programme (see CARE AND CLEANING,page 23). Do not use water spray or steam to clean the appliance. Do not use industrial chemicals to clean the appliance. If the supply cord is damaged, it must be replaced by the manufa- cturer, its service agent or similarly qualified persons in order to avoid a hazard.
-
Page 7: 2-Installation Pictures
2-Installation pictures 12-1 two screws 12-10 12-7 12-2 12-8 12-11 12-3 12-9 12-12 12-4 screws and stickers 12-5 12-6 Secure with same... -
Page 8: 3-Intended Use
3-Intended use Intended use This appliance is intended for drying items which have been washed in a water solution and are marked on the manufacturer‘s care label as being suitable for tumble drying. It is designed exclusively for domestic use inside the house. It is not intended for commer- cial or industrial use. -
Page 9: 4-Product Description

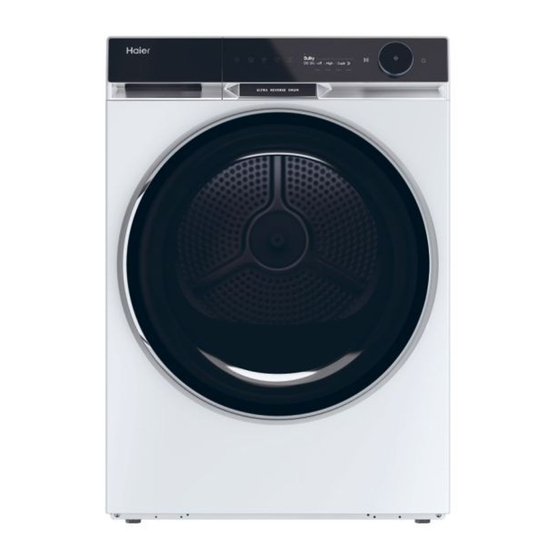

4-Product description Note: Due to technical changes and diff erent models, the illustrations in the following chap- ters may diff er from your model. 4.1 Picture of appliance Front (Fig. 4-1): Rear side (Fig. 4-2): 1 Water tank 4 Power supply cord 2 Tumble dryer door 5 Back plate 3 Control panel... - Page 10 5-Control pannel Display Power button 3 Start/Pause button 6 Operation buttons Progam knob Function buttons 5.1 Power button Touch this button(Fig.5-2)gently to switch on,the display is shining,the indicator of the Start/Pause button is flas- hing.Touch it again for about 2 seconds to switch off.If no panel element or program is activated after specified timing machine will shut down automatically.
- Page 11 5-Control pannel After selection, the wind power icon with dedicated level is displayed in the upper right corner. ( Fig. 5-8), Notice: Only 3 programs (Timer, Wool and Warm up) have 5 levels; the others only have 2-4 levels. 5.4.2 i-Refresh Pro button (Fig.
- Page 12 5-Control pannel remove ultrasonic remove Default Program �me(min) atomiza�on wrinkles odors • • • Shirt • • • Wool • • • Babycare • • • Delicate 5.4.3 Hygienic button 5-12 Hygienic function is designed to kill bacteria and mites as well as virus on Touch the button(Fig.
- Page 13 5-Control pannel 5.4.5 Remote button The remote button can be used to bind and unbind the Internet of things. 5-17 Notice: To start the pairing procedure, please follow the app instructions. 5.5 Display 5-18 The display(Fig.5-18)shows following information: Program short description Function information Remaining time Remote status...
- Page 14 5-Control pannel 5.6.2 Temperature function 5-22 This function is set to adjust drying temperature based on personal needs or requirements. Pressing the button (Fig. 5-22) to set the drying temperature you want. There are 4 levels: High, Medium, Low, Cool. 5-23 5.6.3 Dry level function Press the button (Fig.
-
Page 15: 6-Programs
6-Programs • Yes, Optional**), º SELECTABLE OPTIONS DRYNG Max. loa TIME Anti Iron Program Flexy Air Hygienic Delay i-time Temp. crease level Reminder 2:50 • • • • • º º • • 0:20 • • • º Smart AI º... -
Page 16: 7-Consumption
7-Consumption Heat pump technology The condensation dryer with heat exchanger is outstanding in terms of effi cient energy consumption. These are guide values determined under standard conditions. The values may diff er from those given, depending on overvoltage and undervoltage, the type of fabric, composition of the laundry to be dried, the residual moisture and the actual loading. -
Page 17: 8-Suggestions And Tips
8-Suggestions and tips 8.1 Starched laundry Starched laundry leaves a fi lm of starch in the drum and is not suitable for the dryer. 8.2 Softener Do not use softener when washing, because the laundry will become soft and fl uff y in the dryer. - Page 18 8-Suggestions and tips 8.11 Jersey and knitwear Clothes like jersey and knitwear, we recommend to use Delicate program to dry to avoid over-drying. 8.12 Flipping clothes It is recommended to close the zipper and flip it inside and outside before operation. to avoid over-drying.
-
Page 19: 9-Daily Use
9-Daily use 9.1 Prepare the appliance 1. Connect the appliance to a power supply (220V to 240V~/50Hz) (Fig. 9-1) Please also refer to sec- tion INSTALLATION. 2. Make sure: The water tank is empty and properly installed. (Fig. 9-2). The lint filter is clean and properly installed. (Fig. 9-3). - Page 20 9-Daily use Tips: Separate white clothes from coloured ones. Bed linen and pillowcases should be buttoned, so that small parts cannot stuck inside. Close zippers and hooks, and tie loose belts without metal parts, apron strings etc. together. Remove loose metal parts of clothes before putting into dryer such as metal buttons.
- Page 21 9-Daily use 2. Set functions such as Temperature, Dry level, De- lay. Afterwards press theStart/Pause button (Fig. 9-9) to start the dry cycle. 9.6 End of dry cycle 9-10 The tumble dryer stops operation automatically when a dry cycle is complete. The display shows END for about 5 seconds.
- Page 22 9-Daily use When using for the first time, please remove the top fixing tape 9-16 ( Fig. 9-16 9-17 The module and machine are magnetically paired up, it can be easily removed by pulling in the direction of the arrow( F i ig. 9-17) . 9-18 In order to fill the module with purified water, lift the ring, turn it Anti- clockwise and pull it out.
-
Page 23: 10-Care And Cleaning
10-Care and cleaning 10.1 Lint fi lter cleaning 10-1 Clean the lint fi lter after each dry cycle. 1. Remove the lint fi lter from the drum (Fig. 10-1). 2. Open up the lint fi lter (Fig. 10-2). 10-2 3. Remove the lint residuals from lint filter (Fig. 10-3). 10-3 4. - Page 24 10-Care and cleaning 10.3 Empty the water tank 10-9 During operation, steam is condensed into water and collected in the water tank. Empty the water tank after each drying cycle. 1. Pull out the water tank from its housing (Fig. 10-9). 10-10 2.
-
Page 25: 11-Troubleshooting
11-Troubleshooting Many problems can be solved by yourself without specifi c expertise. please check all shown possibilities and follow below instructions before you contact an after sales service. See CUSTOMER SERVICE. WARNING! Before maintenance, turn off the appliance and disconnect the mains plug from the socket. - Page 26 11-Troubleshooting Troubleshooting without display-codes Problem Possible cause Possible solution Tumble dryer • Poor connection to the power • Check connection to the pow- fails to operate. supply. er supply. • Power failure. • Check the power supply. • No drying program is set. •...
-
Page 27: 12-Installation
12-Installation Notice: all installation relevant pictures can be found at the beginning of this manual. 12.1 Preparation Remove all packages including the polystyrene base firstly. While removing the package, water drops may be observed. This is normal phenomenon results from water test the factory. - Page 28 12-Installation 12.6 Reversing the door Before you start, unplug the dryer from the socket. Handle parts carefully to avoid scratching paint. Provide a non-scratching work surface for the doors. Tools you will need: Phillips-head screwdriver. Once you begin, do not move the cabinet until door reversal is completed. These instructions are for changing the hinges from the right side to the left side.
- Page 29 12-Installation 12.8 Level the dryer It is IMPORTA NT to level the dryer to ensure the machine runs efficiently with minimal noise.The dryer should be levelled in, so it stands balanced ecenly on all four feet.Ensure the dryer does not rock in any direction. Level the dryer side to side(Fig.
-
Page 30: 13-Technical Data
13-Technical data Productfi che (acc. to EU 392/2012) Trade mark Haier Model identifi er HD90-A3Q397U1 HD90-A3Q397SU1 Rated capacity (kg) Heat Pump Kind of tumble dryer Energy effi ciency class A+++ Weighted Annual Energy Consumption in kWh/year) Tumble dryer with or without automatic... - Page 31 13-Technical data Based on 160 drying cycles of the standard cotton program at full and partial load, and the consumption of the low-power modes. Actual energy consumption per cycle will depend on how the appliance is used. In case there is a power management system. This program used at full and partial load is the standard drying program to which the infor- mation in the label and the fi...
-
Page 32: 14-Hon
14.3 Download and installation of hOn App: Download the hOn App on your device by framing the following QR code: Download the hOn App on your device go.haier-europe.com/download-app or by the link: go.haier-europe.com/download-App Frequency rate (OFR) 2400 MHz - 2483,5 MHz Max. power (ERP) - Page 33 14-hOn 14.4 Registration and App Pairing 1. Connect the smartphone to the home Wi-Fi network you want to connect the product to. 2. Open the App. 3. Create the user profile (or log-in if it is already created previously). 4. Pairing the appliance following the instructions on the App. Note: Wi-Fi Network It is not possible to connect the appliance to a public Wi-Fi network.
- Page 34 14- hOn Note: Network credentials cancellation/reset Follow this procedure only if you are going to sell your washer. 14.8 Configuration information deleted 1. Long press" "" button for 5 seconds, " " D o you want to reset the Wi-Fi credentials?" displayed on the control panel;...
-
Page 35: 15-Customer Service
If you cannot fi nd a solution there, please contact: Y our local dealer or The Service & Support area at www.haier.com where you can fi nd telephone numbers and FAQs and where you can activate the service claim. To contact our Service, ensure that you have the following data available.
