MAT288 User Manual rev.03

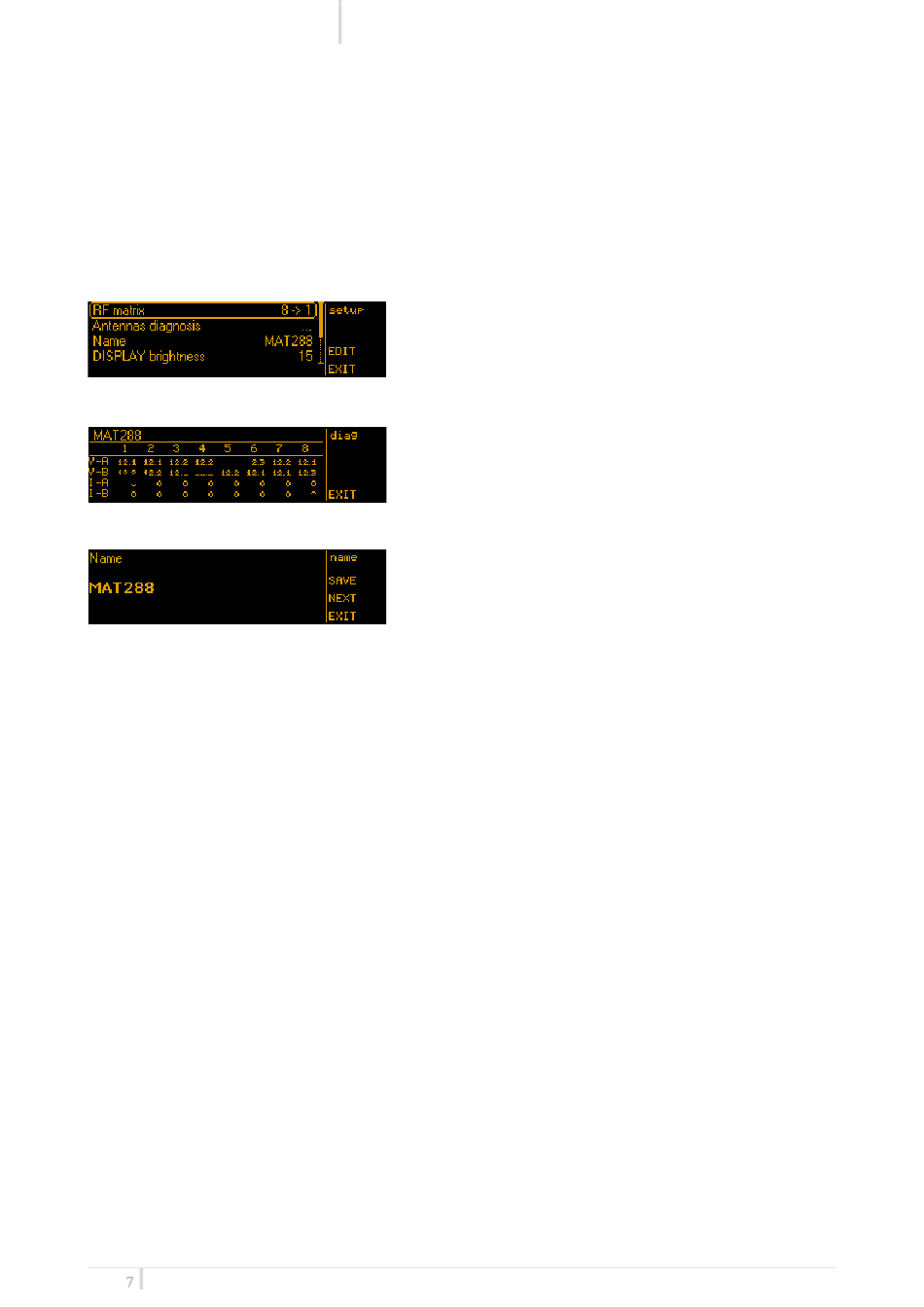

RF Matrix
MAT288 is a programmable RF combiner. By entering into RF Matrix menu you can configure the
software picking one of the three following options:
• Diversity Combiner 8:1 with 7dB gain
• Diversity Combiner 8:4 with 0dB gain
• 2 Diversity Combiner 4:2
Antennas Diagnosis
Name
Display brightness and display timeout
In these two menus you can increase or decrease display brightness or modify the time before the
display turns darker.
Info
Here you can check all the basic info about your MAT288 such as IP address, serial number,
Firmware, alarms etc.
External DC alarm threshold (only with DC option installed)
Through this submenu you determine the threshold beyond which an overload of external Vdc
will trigger the alarm.
7
This submenu allows you to check the value levels of
voltage (V) and current (I) of the 16 antennas of MAT288.
(8 for channel A, 8 for channel B).
The NAME submenu let you change the name of your
matrix that will be visible on the status menu.
