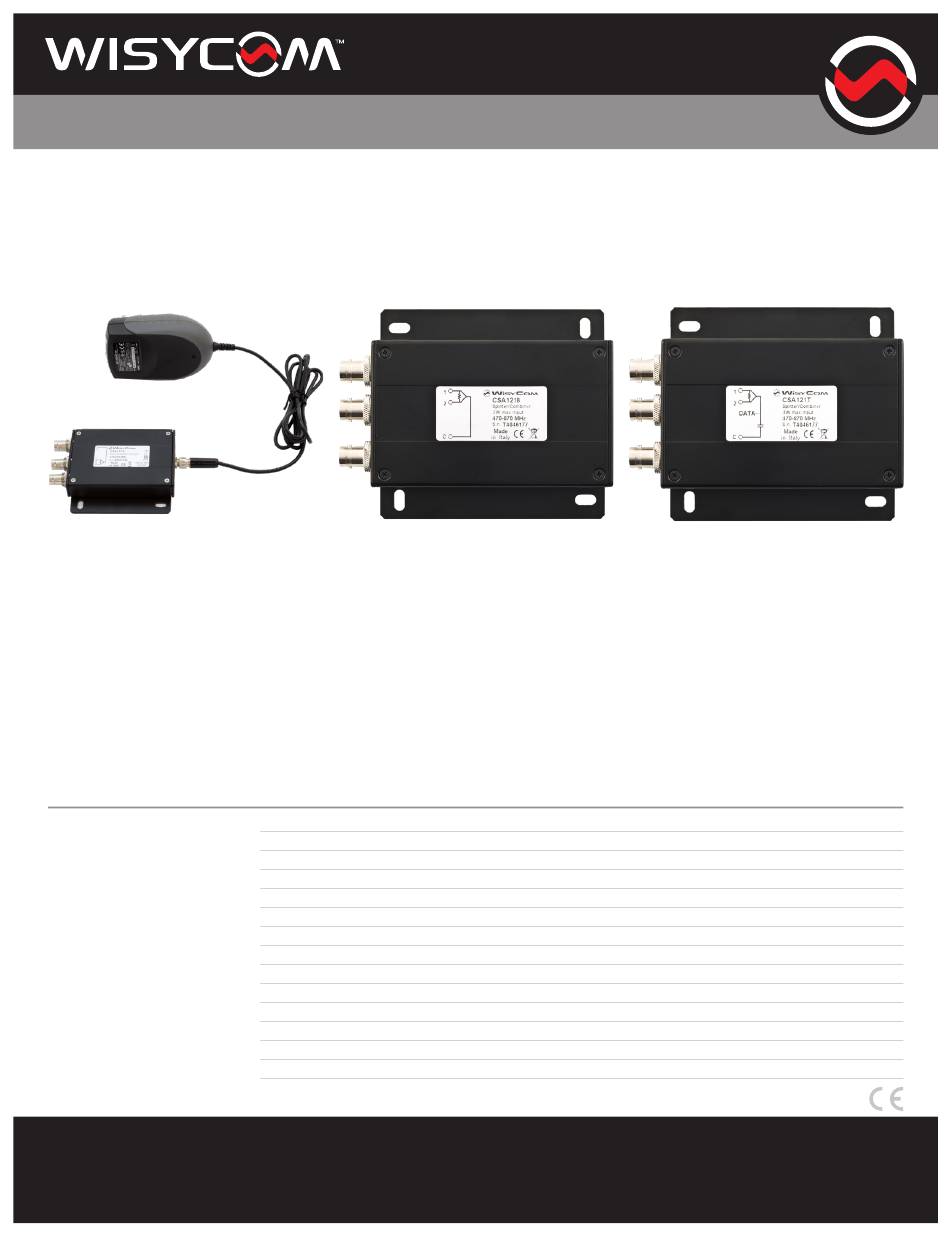

WisyCom CSA121 Series Quick Start Manual

CSA121X PASSIVE WIDEBAND SPLITTER COMBINERS
The CSA121 series of compact, passive wideband splitter / combiners is designed to function as:
•
PASSIVE WIDEBAND COMBINER →1 x 2:1
•
PASSIVE WIDEBAND SPLITTER →1 x 1:2
Each available model has unique, differentiating functions:
CSA121A
•
DC-coupled for use with antenna
booster/ active antennas.
•
Handles up to 1.5 Amps without
saturation for high power IP3
booster driving (i.e. Wisycom BAW)
•
Supplied with 230/110 Vac power
supply with locking connector
Combining instructions: Use [1] & [2] for input signals. Combined signals are available at [C].
Splitter instructions: Use [C] for input signal. Split signal is available at [1] & [2].
Frequency range:
Splitter/Combiner loss:
Max Input power:
Connector:
Impedance:
Power supply:
Max current thru port:
Material:
Finishing:
Mounting:
Dimensions:
Weight:
Wisycom USA
5228 Eisenhower Avenue
Alexandria, Virginia 22304
+1 (888) WISYCOM
+1 (888) 947-9266
CSA121B
•
Works with input power up to 2W
•
DC pass-through for antenna
booster powering
TECH SPECS
470 - 870 MHz
4dB
125mW (CSA121A)
2W (CSA121B)
3W (CSA121T)
3 BNC-F
50 Ω
230/110 Vac (CSA121A)
1.5A (CSA121A)
aluminum
black varnish
mounting plate holes (M5 screw type)
20 x 100 x 125 mm (HxWxD)
170 g (CSA121A), 220g (CSA121B), 235g (CSA121T)
WisycomUSA.com
Sales@WisycomUSA.com
CSA121T
•
Works with high input power – up to
3W
•
Becomes a smart combiner when
used with Wisycom MTK952N
(2WO) Transmitter
•
Recovers combiner loss as
MTK952N increases output power
as needed
Note: the CSA121T does not have booster
pass-through capabilities
Subject to change without notice
