- Page 1 MAT244 User Manual Programmable RF Combiner SN: ________________ rev.01 (ref. FW 1.7) Date: 08 November 2022...
-
Page 2: Safety Instruction
MAT244 User Manual rev.01 AFETY INSTRUCTION • Read this safety instruction and the manual first • Follow all instructions and information. • Do not lose this manual. • Do not use this apparatus under the rain or near the water. -
Page 3: Brief Description

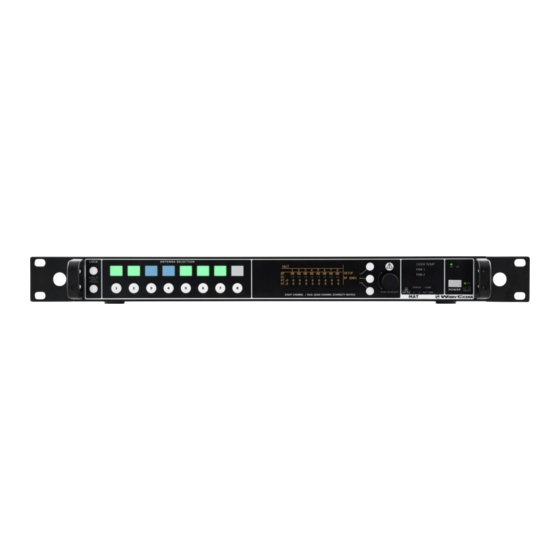

4. Power on the MAT244 5. Switch off the unused areas/channels from the front panel 6. Choose the output option that best fits your needs. MAT244 is a programmable RF combiner, software configurable (Setup > RF matrix menu) in: • Combiner 8:1 •... - Page 4 ANEL ONTROL AND UNCTIONS MAT244 allows an easy and quick configuration using buttons, push knobs and OLED display. The front panel is functionally divided in the following section: A – Lock/Unlock To lock the MAT244 push the lock button in the front panel.
-
Page 5: Rear Panel
❸ Ground point To connect the rack to ground ❹ Label with IP address of Ethernet interface configured on the MAT244 (it can be modified using the Manager application) ❺ Ethernet socket (RJ45) for connection to a network or computer ❻... - Page 6 MAT244 User Manual rev.01 Pushing the knob from the Status menu, it is possible to enter on the configuration setting of each input port: ports 1÷4 (diversity configuration 4->2) or ports 1÷8 (no diversity configuration, 8->1 or 8->2) ❷ For each port it is possible to: ...
-
Page 7: Setup Menu
MAT244 User Manual rev.01 SETUP MENU User 1...9 Presets Restore settings FACTORY 8->1 RF MAtrix 8->4 4->2 Antennas diagnosis Name DISPLAY brightness 1 ÷ 15 DISPLAY timeout 5 ÷ 120 IP address Serial FW ver/Boot Ver/App FW ver Main Board Info…... - Page 8 In these two menus you can increase or decrease display brightness or modify the time before the display turns darker. Info Here you can check all the basic info about your MAT244 such as IP address, serial number, Firmware, alarms etc.
- Page 9 MAT244 User Manual rev.01 RF B AR MENU It shows the current measured RF levels and the peak levels of areas. diversity configuration 4->2 configuration 8->1 or 8->4 peak levels RF level are wideband measurement and show the maximum power level measured from 150- 840MHz Peak levels are reset whenever you go back to the RF BAR menu.
- Page 10 MAT244 User Manual rev.01 0.23A/0.8A Config 8:4 150MHz 840MHz Step=0,5dB Att_min=0dB Att_max=31,5dB 0.23A 150MHz 840MHz PK-DET Step=0,5dB Att_min=0dB Att_max=31,5dB 0.23A 150MHz 840MHz Step=0,5dB Att_min=0dB Att_max=31,5dB 0.23A 150MHz 840MHz Step=0,5dB Att_min=0dB Att_max=31,5dB 0.23A/0.8A 150MHz 840MHz Step=0,5dB Att_min=0dB Att_max=31,5dB 0.23A 150MHz 840MHz...
-
Page 11: Alarm List
MAT244 User Manual rev.01 ALARM LIST When an alarm occurs, the MAT244 advises you with one or more of the following acts: A. Show a message on the display B. Turn on the yellow or red alarm led C. Insert the alarm on the alarm list in the MAIN>Options>Info>Alarms menu... - Page 12 MAT244 User Manual rev.01 Fan #2 does't work Fan #2 Fixed Yellow FAN2 Fast properly blinking Antenna nA: DC Anten Antenna nA: DC overload Antenna N overload Antenna nB: DC Anten Antenna nB: DC overload Antenna N overload...
-
Page 13: Technical Specification
MAT244 User Manual rev.01 TECHNICAL SPECIFICATION : AC connector 90÷264Vac / T2A, 47÷63Hz Power supply Working frequency : 150 ÷ 840 MHz Amplifier linearity : ± 1 dB (typical) “A” / “B” antenna : 8 BNC type connector input antenna output... - Page 14 MAT244 User Manual rev.01 Disposal of Old Electrical & Electronic Equipment (2002/96/EC) This symbol indicates that this products shall not be treated as household waste. Instead it shall be handed over to the appropriate collection point for the recycling of electrical and electronic equipment.
- Page 15 MAT244 User Manual rev.01...
- Page 16 MAT244 User Manual rev.01 Via Tiepolo 7/E • 35019 Tombolo (PD) • Italy Tel. +39 -0424 -382605 • Fax +39 - 0424 - 382733 www.wisycom.com • e-mail: sales@wisycom.com...
