Model 2400KL / 2400KG

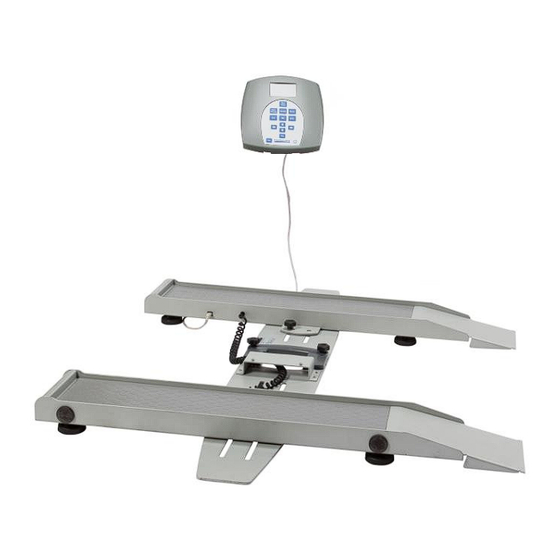

Digital Portable Wheelchair Scales
Equipped with
®
Everlock
0459
User Instructions
E112697
th
PELSTAR, LLC
9500 West 55
St. McCook, IL 60525-7110 USA
www.homscales.com
© Pelstar, LLC 2018
P/N UM2400KL_2400KG_E_REV20181128

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Weigheasier 2400KG and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Health O Meter Weigheasier 2400KG

Summary of Contents for Health O Meter Weigheasier 2400KG

  • Page 1 Model 2400KL / 2400KG Digital Portable Wheelchair Scales Equipped with ® Everlock 0459 User Instructions E112697 PELSTAR, LLC 9500 West 55 St. McCook, IL 60525-7110 USA www.homscales.com © Pelstar, LLC 2018 P/N UM2400KL_2400KG_E_REV20181128...

  • Page 2: Table Of Contents

    Model 2400KL/2400KG Thank you for your purchase of this Health o meter® Professional product. Please read this manual carefully, and keep it for easy reference or training. TABLE OF CONTENTS Cautions and Warnings ..................... 3 Specifications ......................4 Certifications / Connectivity / Disposal ..............5 Assembly Instructions ....................

  • Page 3: Cautions And Warnings

    CAUTIONS AND WARNINGS INTENDED USE ® This Health o meter Professional wheelchair scale is intended to be used in a professional medical environment by trained medical staff. This product was designed to weigh patients who are safely seated in a wheelchair. Do not modify the product or use it for anything other than its intended purpose.

  • Page 4: Specifications

    SPECIFICATIONS General This scale uses highly sophisticated microprocessor technology. Each precision scale is designed to provide accurate, reliable, and repeatable weight measurements. In addition, each scale is designed to provide the user with features that make the weighing process simple, fast, and convenient. This scale uses motion-sensing weighing technology in order to determine the actual weight of a moving patient.

  • Page 5: Certifications / Connectivity / Disposal

    This connectivity helps minimize a source of potential medical errors caused by incorrectly copying and then recording patient data. For more information regarding how to ® connect the scale to other electronic devices, please contact Health o meter Professional Scales Technical Support, available during normal business hours at 1-800-638-3722.

  • Page 6: Assembly Instructions

    If damage is found, contact your shipper or a ® Health o meter Professional representative immediately at 1-800-815-6615. Claims must be filed with the shipper as soon as possible after receipt of the package. The following information details what you will find inside the main carton as you unpack the parts for assembly.
  • Page 7 ASSEMBLY INSTRUCTIONS (CONT) Health o meter® Professional Scales recommends that assembly be performed by two people. Warning: Do not drop the scale, as this can permanently damage the load cells. 1. Remove the scale from the carton and Ensure that the...
  • Page 8 ASSEMBLY INSTRUCTIONS (CONT. 5. Connect the load cell cable to the scale by inserting the load cell cable into the load cell port located on the inner side of the wheel track. 6. If mounting the display head onto a wall see the Display Head Wall Mounting Instructions on the next page.

  • Page 9: Display Head Wall Mounting Instructions

    DISPLAY HEAD WALL MOUNTING INSTRUCTIONS Required Parts (1) Display head with mounting bracket (2) #8 Anchoring screws (4.2 mm nominal OD) (2) Mounting anchors, compatible with wall construction Caution: When wall mounting the display head, ensure that the mounting location is free of electrical lines, gas pipes, and other safety hazards.
  • Page 10 DISPLAY HEAD WALL MOUNT INSTRUCTIONS (CONT) 5. Once the holes are drilled, use a hammer or Phillips head screwdriver to set the 2 drywall anchors into the holes. Use a screwdriver to insert the drywall anchors completely into the wall. Screw the two mounting screws into the anchors.

  • Page 11: Powering The Scale

    2. Remove the battery pack from the display head. Replace or install fresh batteries, making sure to install them in ® the proper direction. Health o meter Professional recommends using an alkaline battery rated for 130°F (54°C) operation. Do not use Zinc-Carbon batteries.

  • Page 12: Set-Up Instructions

    SET-UP INSTRUCTIONS The scale must be powered on before performing any of the following operations. Press to turn on the scale. Unit of Measure Configuration / Unit Lock (This feature is not available on KG models) The scale ships from the factory set to display weight in kilograms. The weight measuring unit can be changed by pressing .
  • Page 13 SET-UP INSTRUCTIONS (CONT) Setting Sound Options The display can be set to stay silent or beep while operating the scale. Follow this procedure to set the preferred option. Help 1. Press to access the Help menu options. 2. While in the Help menu, press to select “Set Options”.
  • Page 14 ZERO level it ® found on start-up. Health o meter Professional recommends keeping this setting as Enable. Note: Hitting a key to wake the scale from sleep mode will not prompt the scale to zero.

  • Page 15: Everlock Instructions

    Warning: This lock is permanent and can only be reversed at the factory. If you need to ® change the units on your scale after Everlock has been engaged, contact ® Health o meter Professional Scales Customer Service at 1-800-815-6615. Help 1. Press to access the Help menu options.

  • Page 16: Operating Instructions

    OPERATING INSTRUCTIONS and selecting “Key Definitions” in the Help Key definitions can also be found by pressing submenu. Keypad Function Description Powers scale on and off. Zeroes the scale prior to a weighing. Also used as a screen navigation key to exit a Zero/ display menu.
  • Page 17 OPERATING INSTRUCTIONS (CONT.) Tare Function When using this scale, the weight of an object, such as a wheelchair, can be subtracted from the total weight in order to determine the weight of the patient alone. The Tare Function automatically performs this subtraction. The scale allows a tared weight to be entered manually by using the keypad, or automatically, as outlined in this section.
  • Page 18 OPERATING INSTRUCTIONS (CONT.) Weighing a Patient and Taring a Known Weight / Pre-Tare Pre-Tare can be performed within the following weight limits: 0.2 lb - 200 lb / 0.1 kg – 91 kg) 1. Wait until “0.0” appears on the display. Tare 2.
  • Page 19 OPERATING INSTRUCTIONS (CONT.) Weight Recall Recall 1. To recall the last weight measured, press Zero 2. To clear the display of the recalled weight, press (Clear) BMI Function 1. Make sure there is nothing on the weighing platform and the display shows “0.0”.

  • Page 20: Transport Instructions

    TRANSPORT INSTRUCTIONS This scale can be easily folded for movement from one location to another. This scale includes mounting pins to secure the display assembly during transport (the pins are located below the transport handle). To prepare the scale for transport, follow these steps. If powering the scale via AC adapter, unplug the adapter from the display head, and remove the adapter from the outlet.

  • Page 21: Maintenance And Cleaning

    4. Do not pour or spray fluids directly on the scale. Replacement Parts Parts may be available if a piece of the scale needs to be replaced. Contact Health o meter Professional Scales Customer Service at 1-800-815-6615 to inquire about the availability of these replacement parts.

  • Page 22: Calibration

    CALIBRATION This scale has been factory calibrated, and does not require calibration prior to use. There are no requirements for calibration in the field; users should adhere to their institution’s calibration policies. Calibration of your scale can be performed using calibrated kilogram (kg) or pound (lb) weight standards.
  • Page 23 CALIBRATION (CONT) 7. When the zeroing process is complete the display will prompt for entry of the calibration weight. Minimum calibration is 200 lb / 100 kg. Maximum calibration weight is 800 lb / 363 kg. Calibration weight can be adjusted in 10 lb or 10 kg increments.

  • Page 24: Troubleshooting

    TROUBLESHOOTING Troubleshooting Before contacting service personnel, refer to the following instructions to check and to ® correct any failures. For further assistance, contact Health o meter Professional Scales Technical Support at 1-800-638-3722. Symptom Possible Cause Corrective Action 1. Dead battery 1.

  • Page 25: Warranty

    What does the Warranty Cover? This Health o meter® Professional scale is warranted from date of purchase against defects of materials or in workmanship for a period of two (2) years. If product fails to function properly, return the product, freight prepaid and properly packed to Pelstar, LLC (see “To Get Warranty Service”, below, for instructions).
