Summary of Contents for Auta QUICK 2H

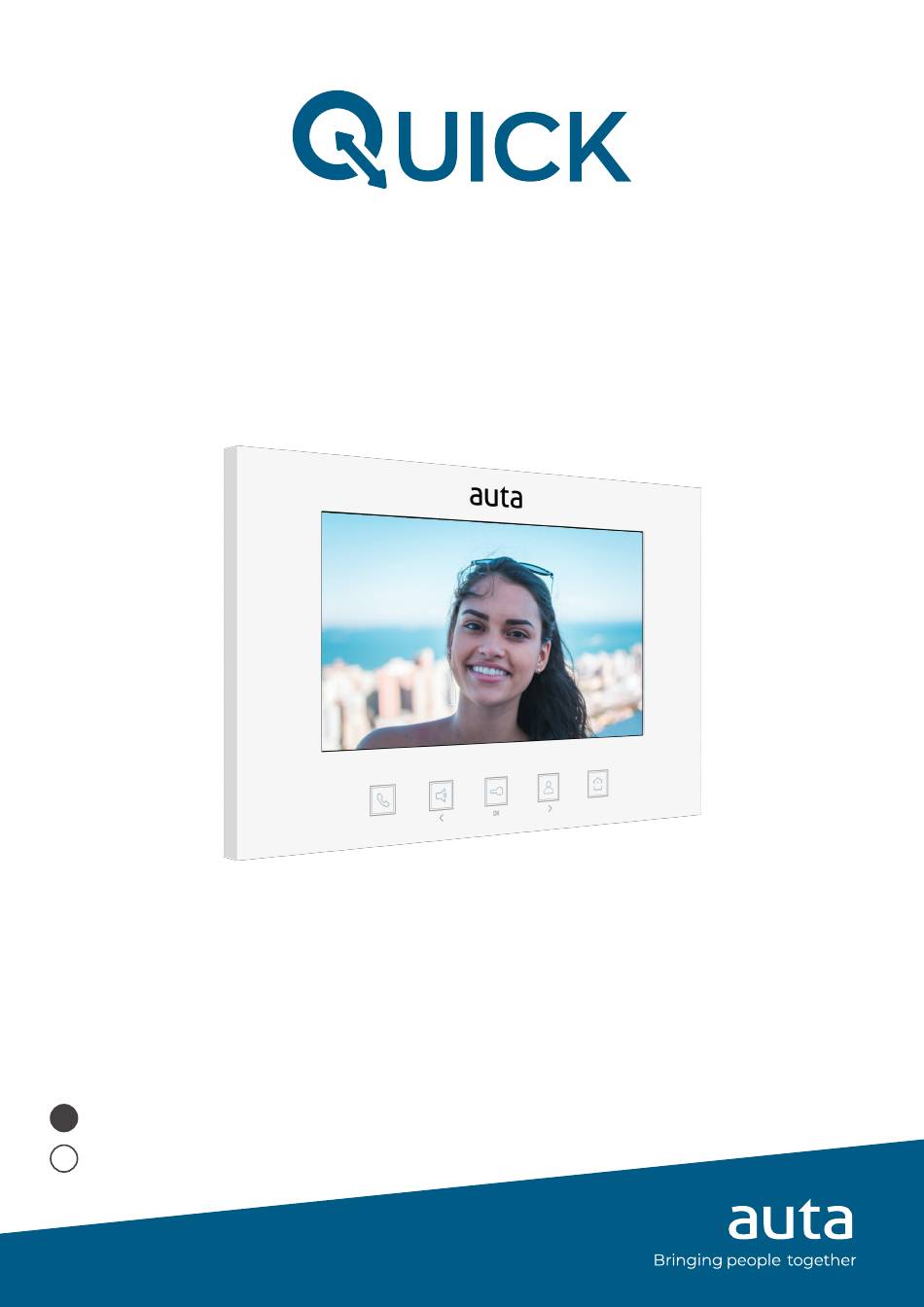

- Page 1 751006 REF: MONITOR QUICK 2H QUICK 2W MONITOR...

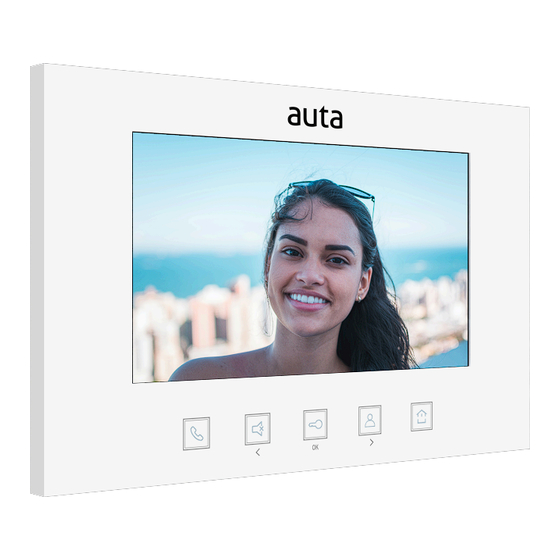

- Page 2 Bringing people together Descripción Description Micrófono Microphone Pantalla 7” 7” screen Pulsadores táctiles multi-función Multi-function touch buttons → Durante una Llamada, pulsación corta para Contestar_Colgar During a Call, short press to Answer_Hang → En Reposo, pulsación corta para Intercom, seleccionar “< >”. Llamar “OK” Standby, short press to Intercom, select “<...
- Page 3 Bringing people together Montaje Mounting Instalación Installation → Solo 1 monitor Just 1 monitor ID 1 ID 1 → Hasta 4 monitores (cascada) Up to 4 monitors (cascade) ID 1 ID 2 ID 3 ID 4 ID 1 → Otras topologías de instalación Other installation topologies SISTEMA MULTI-PLACA SISTEMA MULTI-MONITOR AÑADIR CÁMARA CCTV...
- Page 4 → Secciones y distancias recomendadas Recommended sections and distances CABLE RECOMENDADO 2 x 0,5 mm TRENZADO HASTA 150 m RECOMMENDED WIRE 2 x AWG 24 TWISTED UP TO 150 m CABLE MÍNIMO RECOMENDADO 2 x 0.25 mm HASTA 100 m MINIMUM RECOMMENDED WIRE 2 x AWG 30 UP TO 100 m...
