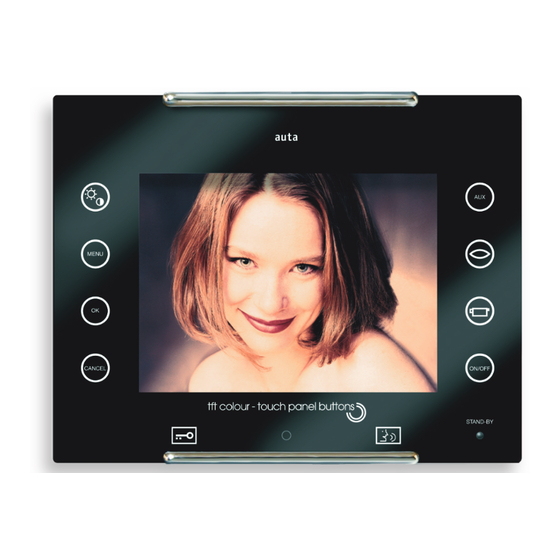

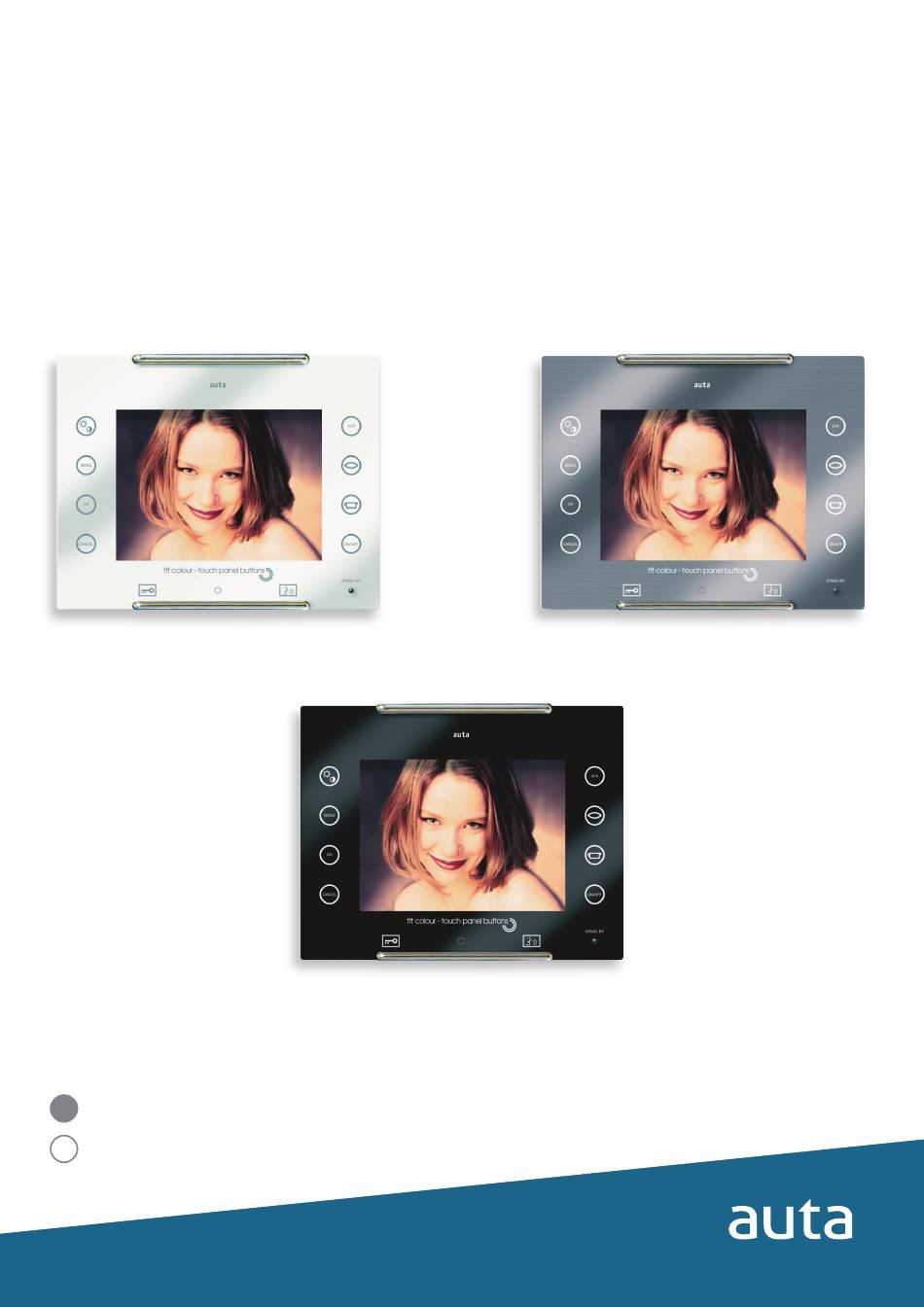

- Page 1 DIGITAL 750938 750939 REF: REF: Blanco Acero White Steel 750937 REF: Negro Black Monitor AVANT, P&P AVANT monitor, P&P Bringing people together...
-
Page 2: Descripción Description
5.6”, audio FULL DUPLEX, tecnología táctil, sistema OSD, salidas auxiliares multi-función, selección de melodías, funciones especiales. COLOUR digital monitor. It can be installed on any Auta P&P digital system. It incorporates a LCD COLOUR 5.6”,FULL DUPLEX audio, touch technology, OSD system, auxiliary multi-function outputs, selection of melodies, special functions. - Page 3 Bringing people together Instalación Installation Monitor como principal Monitor as main Monitor como secundario Monitor as secondary 2ºA 2ºB 2ºA COD. 7 COD. 8 COD. 7 COD. 7 Manual de instalación P&P Installation manual P&P Configuración y conexiones Configuration and connections Función Ding-Dong Ding-Dong function (entrada -24 Vcc)
- Page 4 El monitor dispone de 2 pulsadores in dependientes que permiten realizar maniobras auxiliares, como el accionamiento de puertas de garaje, encendido de luces, riego, etc... Para ello se usará un relé auxiliar Auta conectado al circuito de maniobra que se desee controlar.
-
Page 5: Menú Video
Bringing people together Ajustes entrada y navegación por el menú de ajustes Estando el monitor en reposo se presionará 2 veces el pulsador , cuando aparezca la pantalla de bienvenida con el logo "Avant" pulsaremos de nuevo Navegaremos por las distintas opciones con los pulsadores de selección Validaremos presionando el pulsador Para retroceder o salir del menú... -
Page 6: External Functions
The monitor allows the control of panels and CCTV cameras automatically. First we press 2 times the button then Each press activates a different device. To do this, each CCTV camera must be installed with an Auta digital interface. ding dong function The monitor allows to replace the interior bell of the house, this integrates the two calls (outside panel and house bell) in a single device. -
Page 7: Menu Video
Bringing people together Settings entry and navigation through the settings menu With the monitor is in standby, by pressing 2 times the button , when the welcome screen with the "Avant" logo appears, we will press again We will navigate through the different options with the selection buttons We will validate by pressing the button To go back or exit the settings menu we will press Video... - Page 8 Para poder acceder al menú que permite la gestión de funciones especiales, por favor escanee el siguiente código QR. To access the menu that allows the management of special functions, please scan the following QR code. auta.es Bringing people together HI-780 _ V 1.0...
