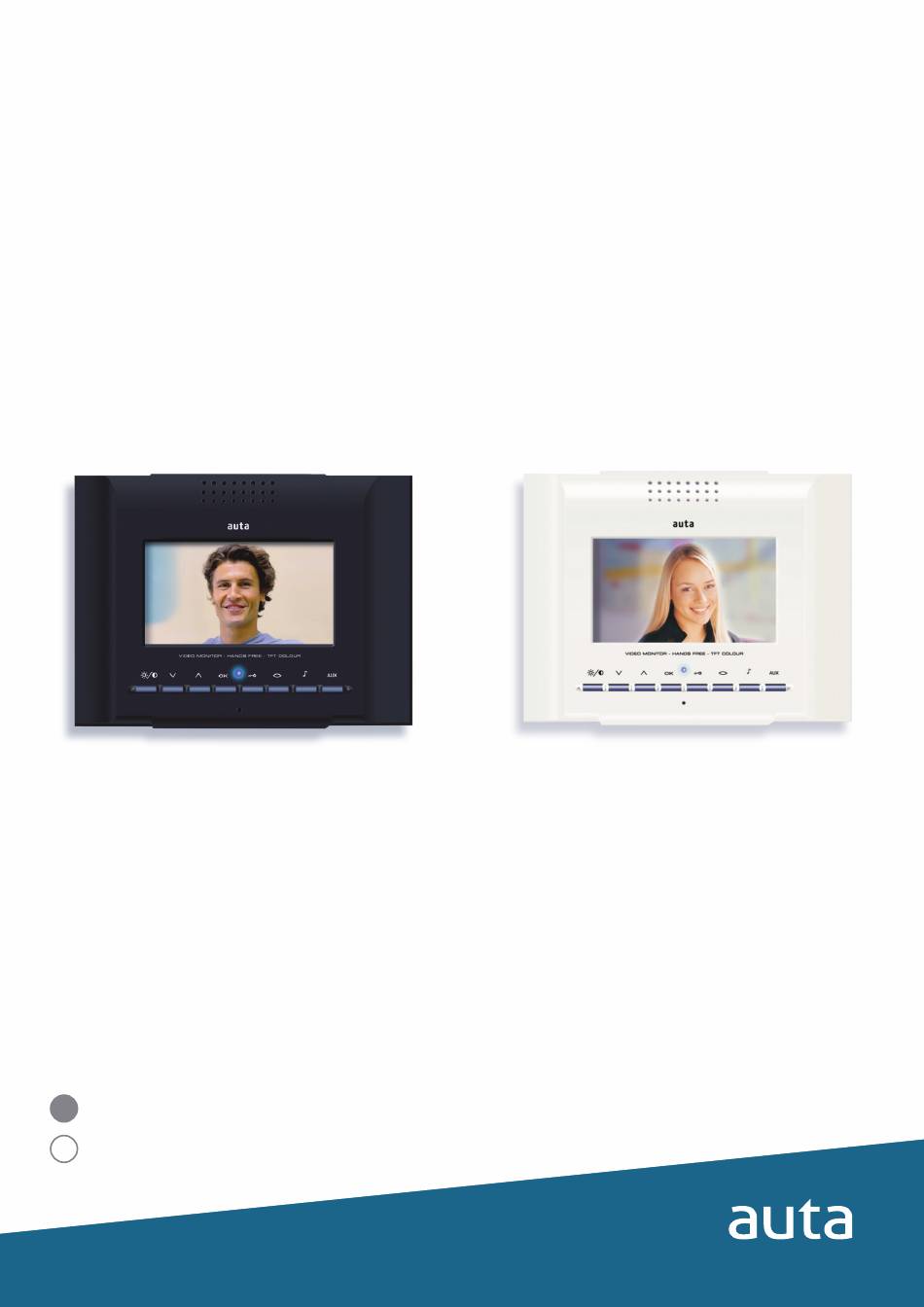

- Page 1 DIGITAL 751316 751317 REF: REF: Negro Blanco Black White Monitor E-COMPACT, P&P E-COMPACT monitor, P&P Bringing people together...
-
Page 2: Descripción Description

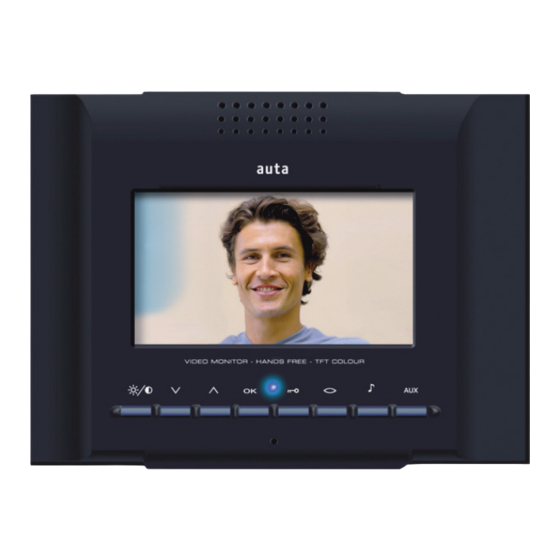

4.3”, audio FULL DUPLEX, salidas auxiliares multi-función, selección de melodías, funciones especiales. COLOUR digital monitor. It can be installed on any Auta P&P digital system. It incorporates a LCD COLOUR 4.3”,FULL DUPLEX audio, auxiliary multi-function outputs, selection of melodies, special functions. - Page 3 Bringing people together Instalación Installation Monitor como principal Monitor as main Monitor como secundario Monitor as secondary 2ºA 2ºB 2ºA COD. 7 COD. 8 COD. 7 COD. 7 Manual de instalación P&P Installation manual P&P Configuración y conexiones Configuration and connections Función Ding-Dong Ding-Dong function (entrada -24 Vcc)
- Page 4 El monitor dispone de 1 pulsador que permiten realizar maniobras auxiliares, como el accionamiento de puertas de garaje, encendido de luces, riego, etc... Para ello se usará un relé auxiliar Auta conectado al circuito de maniobra que se desee controlar.
- Page 5 Auta digital interface. external functions The monitor has 1 independent push-button that allow auxiliary functions, such as garage doors, lights, irrigation, etc ... To do this, an Auta auxiliary relay must be connected to the control circuit we want to control.
- Page 6 AUX output set as pulse mode (1 sec.), factory, or in toggle mode (ON_OFF) La entrada pasa a ser entrada remota de apertura de puerta. Input becomes in remote door release input. Valores de fábrica Factory settings auta.es Bringing people together HI-783 _ V 1.0...
