INSTRUCTION MANUAL
Cordless Combination Hammer
DHR263
DHR264
Read before use.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DHR263 and is the answer not in the manual?

Questions and answers

Related Manuals for Makita DHR263

Summary of Contents for Makita DHR263

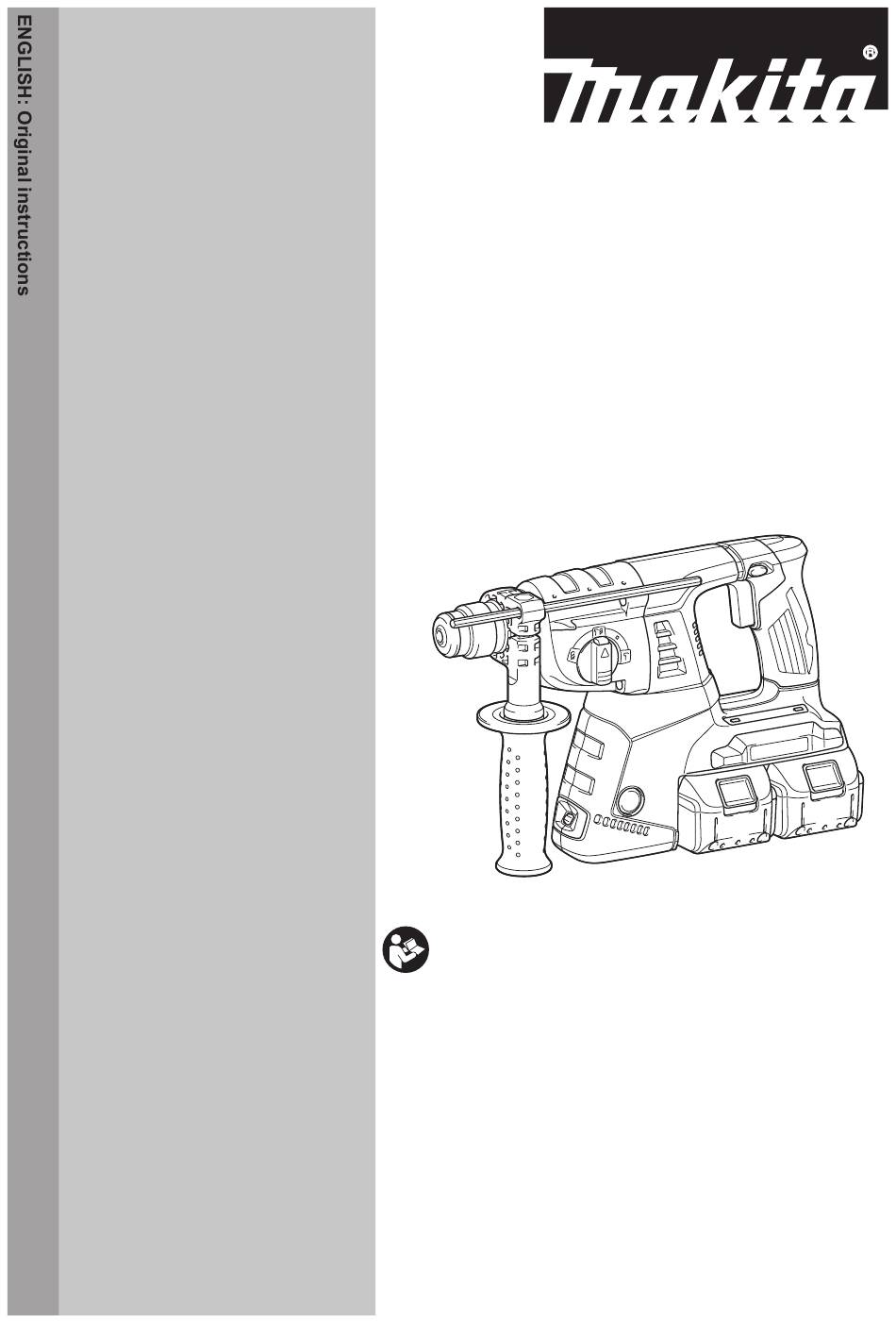

  • Page 1 INSTRUCTION MANUAL Cordless Combination Hammer DHR263 DHR264 Read before use.

  • Page 2: Specifications

    It is also suitable for drilling without impact in wood, meaning before use. metal, ceramic and plastic. Noise Read instruction manual. The typical A-weighted noise level determined accord- ing to EN62841-2-6: Model DHR263 Only for EU countries Ni-MH Sound pressure level (L ) : 95 dB (A) Due to the presence of hazardous com- Li-ion...

  • Page 3: Declarations Of Conformity

    For European countries only The following table shows the vibration total value (tri-axial vector sum) determined according to applica- The Declarations of conformity are included in Annex A ble standard. to this instruction manual. Model DHR263 General power tool safety warnings Work mode Vibration Uncertainty (K) Applicable emission...
  • Page 4 When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply.
  • Page 5 Battery tool use and care Apply pressure only in direct line with the bit and do not apply excessive pressure. Bits can Recharge only with the charger specified by bend, causing breakage or loss of control, result- the manufacturer. A charger that is suitable for ing in personal injury.
  • Page 6 Avoid storing battery cartridge in a con- CAUTION: Only use genuine Makita batteries. tainer with other metal objects such as Use of non-genuine Makita batteries, or batteries that nails, coins, etc. have been altered, may result in the battery bursting Do not expose battery cartridge to water causing fires, personal injury and damage. It will or rain.

  • Page 7: Functional Description

    Indicating the remaining battery FUNCTIONAL capacity DESCRIPTION Only for battery cartridges with the indicator CAUTION: • Always be sure that the tool is switched off and the battery cartridge is removed before adjust- ing or checking function on the tool. Installing or removing battery cartridge ► 1 . Indicator lamps 2. Check button Press the check button on the battery cartridge to indi- cate the remaining battery capacity. The indicator lamps light up for a few seconds.
  • Page 8 To start the tool, simply pull the switch trigger. Tool Tool / battery protection system speed is increased by increasing pressure on the switch trigger. Release the switch trigger to stop. The tool is equipped with a tool/battery protection sys- tem. This system automatically cuts off power to the Lighting up the lamp motor to extend tool and battery life. The tool will automatically stop during operation if the tool or battery are placed under one of the following conditions. In some conditions, the indicators light up. Overload protection When the tool is operated in a manner that causes it to draw an abnormally high current, the tool automatically stops without any indication. In this situation, turn the tool off and stop the application that caused the tool to...
  • Page 9 Attaching the quick change drill CAUTION: chuck • Always check the direction of rotation before operation. • Use the reversing switch only after the tool comes to a complete stop. Changing the direc- tion of rotation before the tool stops may dam- age the tool. • When not operating the tool, always set the reversing switch lever to the neutral position. Changing the quick change chuck for SDS-plus For Model DHR264 The quick change chuck for SDS-plus can be easily ► 1 .
  • Page 10 Rotation only Torque limiter The torque limiter will actuate when a certain torque level is reached. The motor will disengage from the out- put shaft. When this happens, the bit will stop turning. CAUTION: • As soon as the torque limiter actuates, switch off the tool immediately. This will help prevent premature wear of the tool.

  • Page 11: Depth Gauge

    Installing or removing the bit Bit angle (when chipping, scaling or demolishing) Clean the bit shank and apply bit grease before install- ing the bit. ► 1 . O symbol 2. Action mode changing knob ► 1 . Bit shank 2. Bit grease The bit can be secured at the desired angle. To change Insert the bit into the tool.

  • Page 12: Operation

    NOTE: CAUTION: • The depth gauge cannot be used at the position • There is a tremendous and sudden twisting where the depth gauge strikes against the gear force exerted on the tool/bit at the time of hole housing. break-through, when the hole becomes clogged with chips and particles, or when striking rein- Dust cup forcing rods embedded in the concrete. Always...

  • Page 13: Maintenance

    Drilling in wood or metal chuck jaws. Place the bit in the chuck as far as it will go. Hold the ring firmly and turn the sleeve clockwise to tighten the chuck. To remove the bit, hold the ring and turn the sleeve counterclockwise. For Model DHR263 Set the action mode changing knob to the symbol. You can drill up to 13 mm diameter in metal and up to 32 mm diameter in wood.

  • Page 14: Optional Accessories

    Take out the worn carbon brushes, insert the new ones and secure the brush holder caps. ► 1 . Brush holder cap 2. Screwdriver Remount the holder cap covers on the tool. To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized Service Centers, always using Makita replacement parts. OPTIONAL ACCESSORIES CAUTION: • These accessories or attachments are recom- mended for use with your Makita tool specified in this manual. The use of any other accessories...
  • Page 16 Makita Europe N.V. Jan-Baptist Vinkstraat 2, 3070 Kortenberg, Belgium Makita Corporation 3-11-8, Sumiyoshi-cho, Anjo, Aichi 446-8502 Japan 885316D228 20220512...
