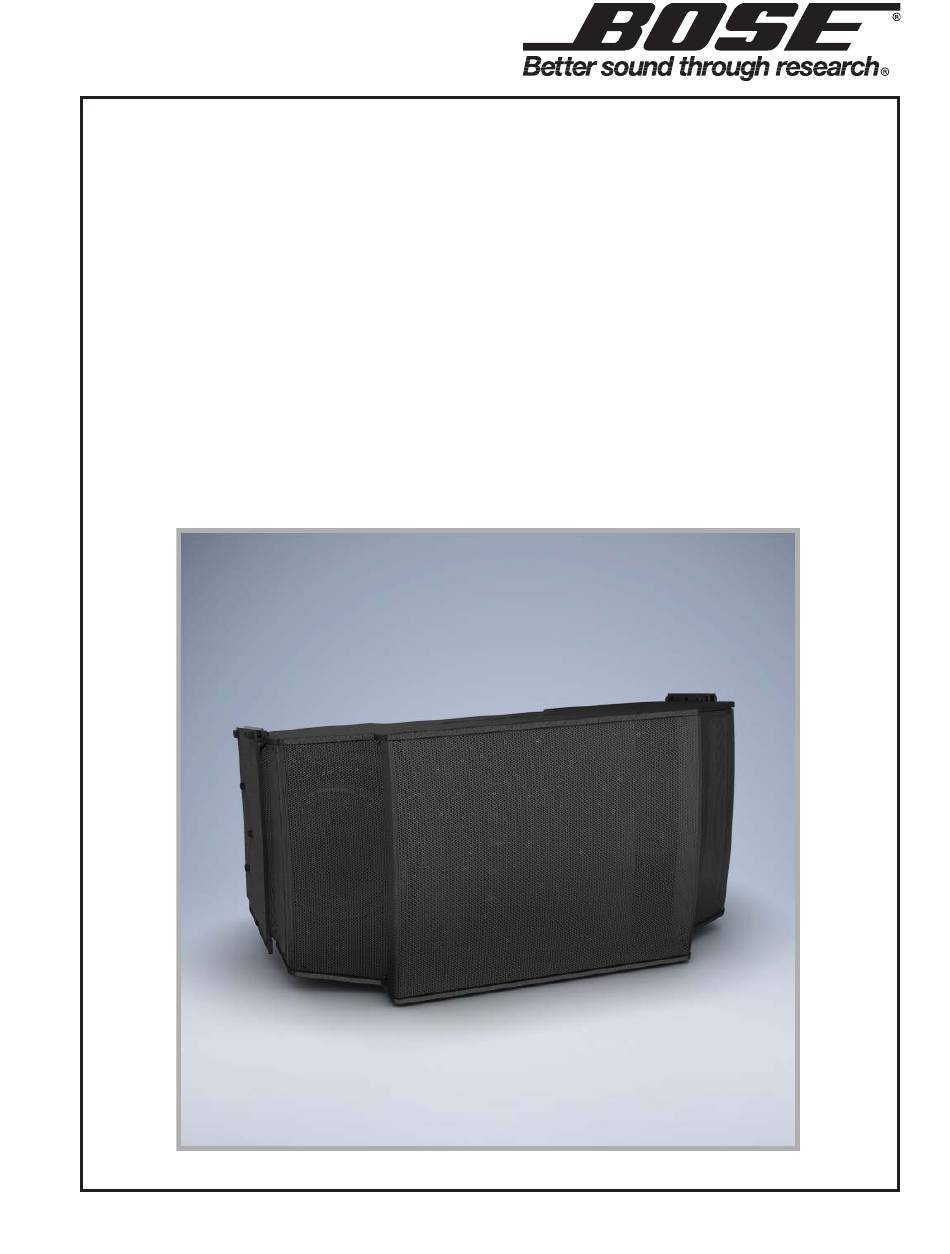

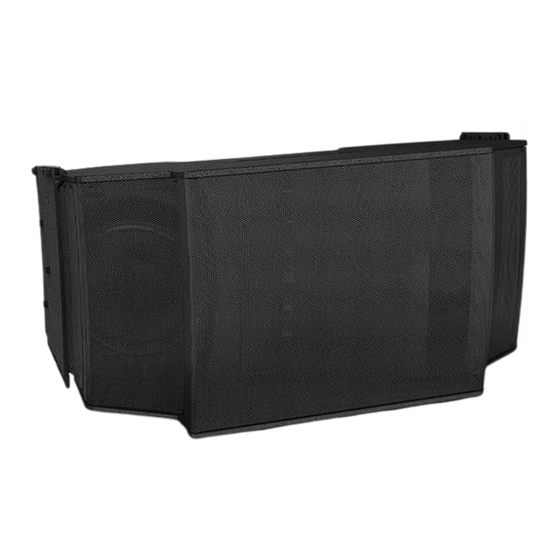

Bose RoomMatch RM5505 Service Manual

Array module loudspeakers

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

RoomMatch

Array Module

Loudspeakers

Models RM5505, RM5510, RM5520, RM5540, RM5560,

RM7005, RM7010, RM7020, RM7040, RM7060, RM9005,

RM9010, RM9020, RM9040, RM9060, RM12005, RM12010,

RM12020, RM12040, RM12060 (Symmetrical Versions)

Models RM283505, RM284505, RM286005, RM352805, RM452805,

RM602805, RM283510, RM284510, RM286010, RM352810, RM452810,

RM602810, RM284520, RM286020, RM356020, RM452820, RM602820,

RM603520, RM286040, RM356040, RM602840, RM603540

(Asymmetrical Versions)

Service Manual

Reference Number 343929-SM Rev. 02

Table of Contents

Need help?

Do you have a question about the RoomMatch RM5505 and is the answer not in the manual?

Questions and answers

Summary of Contents for Bose RoomMatch RM5505

Page 1 RM12020, RM12040, RM12060 (Symmetrical Versions) Models RM283505, RM284505, RM286005, RM352805, RM452805, RM602805, RM283510, RM284510, RM286010, RM352810, RM452810, RM602810, RM284520, RM286020, RM356020, RM452820, RM602820, RM603520, RM286040, RM356040, RM602840, RM603540 (Asymmetrical Versions) ©2013 Bose Corporation Service Manual Reference Number 343929-SM Rev. 02...
Page 2: Table Of Contents
THE PURPOSE OF SERVICING THE IDENTIFIED BOSE PRODUCT BY AN AUTHORIZED BOSE SERVICE CENTER OR OWNER OF THE BOSE PRODUCT, AND SHALL NOT BE REPRODUCED OR USED FOR ANY OTHER PURPOSE. WARRANTY The Bose RoomMatch Array Module Loudspeakers are covered by a 5-year warranty.
Page 3: Specifications, Symmetrical Versions
Specifications, Symmetrical Versions Single Module Performance Frequency Response (+ / ‐ 3 dB) 60 – 16k Hz Frequency Range (‐10 dB) 55 – 16k Hz Recommended High‐Pass Filter 50 Hz with minimum 24‐dB / octave (4 order) Nominal Coverage Pattern (H x V) Model RM5505 55° x 05° Model RM5510 55° x 10° Model RM5520 55° x 20° Model RM5540 55° x 40° Model RM5560 55° x 60° Model RM7005 70° x 05° Model RM7010 70° x 10° Model RM7020 70° x 20° Model RM7040 70° x 40° Model RM7060 70° x 60° Model RM9005 90° x 05° Model RM9010 90° x 10° Model RM9020 90° x 20° Model RM9040 90° x 40° Model RM9060 ...
Page 4 Specifications, Symmetrical Versions Model RM5560 No EQ With EQ No EQ With EQ Sensitivity, Free Field (SPL / 1W @1 m) 94 dB 93 dB 108 dB 101 dB Calculated Maximum SPL @ 1 m, continuous 121 dB 120 dB 130 dB 123 dB Calculated Maximum SPL @ 1 m, peak 127 dB 126 dB 136 dB 129 dB Model RM7005 No EQ With EQ No EQ With EQ Sensitivity, Free Field (SPL / 1W @1 m) 94 dB 93 dB 110 dB 106 dB Calculated Maximum SPL @ 1 m, continuous 121 dB 120 dB 132 dB 128 dB Calculated Maximum SPL @ 1 m, peak 127 dB 126 dB ...
Page 5 With EQ No EQ With EQ Sensitivity, Free Field (SPL / 1W @1 m) 94 dB 93 dB 105 dB 98 dB Calculated Maximum SPL @ 1 m, continuous 121 dB 120 dB 127 dB 120 dB Calculated Maximum SPL @ 1 m, peak 127 dB 126 dB 133 dB 126 dB Transducers Low Frequency 2 x Bose LF10 ultra‐linear 10‐inch woofers (3‐inch voice coil) High Frequency 6 x Bose EMB2 extended midrange compression driver (2‐inch voice coil) Physical Enclosure Material Baltic Birch plywood, engineered plastics, and steel frame Finish two‐part spray polyurethane coating on plywood, black Grille 19‐gauge (1.0 mm) perforated steel, powder‐ coated finish, black Connectors 2 x Neutrik® NL4 wired parallel Suspension Attachment integrated side‐plate rigging hardware; optional array frame accessories ...
Page 6 Specifications, Symmetrical Versions Dimensions Model RM5505 (H x W x D) 16.9 x 39.1 x 23.6 in (428 x 993 x 598 mm) Model RM5510 (H x W x D) 17.9 x 39.1 x 23.6 in (455 x 993 x 598 mm) Model RM5520 (H x W x D) 20.0 x 39.1 x 23.6 in (509 x 993 x 598 mm) Model RM5540 (H x W x D) 24.0 x 39.1 x 23.6 in (610 x 993 x 598 mm) Model RM5560 (H x W x D) 27.5 x 39.1 x 23.6 in (700 x 993 x 598 mm) Model RM7005 (H x W x D) 16.9 x 39.1 x 23.6 in (428 x 993 x 598 mm) Model RM7010 (H x W x D) 17.9 x 39.1 x 23.6 in (455 x 993 x 598 mm) Model RM7020 (H x W x D) 20.0 x 39.1 x 23.6 in (509 x 993 x 598 mm) Model RM7040 (H x W x D) 24.0 x 39.1 x 23.6 in (610 x 993 x 598 mm) Model RM7060 (H x W x D) 27.6 x 39.1 x 23.6 in (700 x 993 x 598 mm) Model RM9005 (H x W x D) 16.9 x 39.1 x 23.6 in (428 x 993 x 598 mm) Model RM9010 (H x W x D) 17.9 x 39.1 x 23.6 in (455 x 993 x 598 mm) Model RM9020 (H x W x D) 20.0 x 39.1 x 23.6 in (509 x 993 x 598 mm) Model RM9040 (H x W x D) 24.0 x 39.1 x 23.6 in (610 x 993 x 598 mm) Model RM9060 (H x W x D) 27.6 x 39.1 x 23.6 in (700 x 993 x 598 mm) Model RM12005 (H x W x D) 16.9 x 39.1 x 23.6 in (428 x 993 x 598 mm) Model RM12010 (H x W x D) 17.9 x 39.1 x 23.6 in (455 x 993 x 598 mm) Model RM12020 (H x W x D) 20.0 x 39.1 x 23.6 in (509 x 993 x 598 mm) Model RM12040 (H x W x D) ...
Page 7: Specifications, Asymmetrical Versions
Specifications, Asymmetrical Versions Single Module Performance Frequency Response (+ / ‐ 3 dB) 60 – 16k Hz Frequency Range (‐10 dB) 55 – 16k Hz Recommended High‐Pass Filter 50 Hz with minimum 24‐dB / octave (4 order) Nominal Coverage Pattern (H x V) Model RM283505 28°+35° X 05° LOUDSPEAKER Model RM284505 28°+45° X 05° LOUDSPEAKER Model RM286005 28°+60° X 05° LOUDSPEAKER Model RM352805 35°+28° X 05° LOUDSPEAKER Model RM452805 45°+28° X 05° LOUDSPEAKER Model RM602805 60°+28° X 05° LOUDSPEAKER Model RM283510 28°+35° X 10° LOUDSPEAKER Model RM284510 28°+45° X 10° LOUDSPEAKER Model RM286010 28°+60° X 10° LOUDSPEAKER Model RM352810 35°+28° X 10° LOUDSPEAKER Model RM452810 45°+28° X 10° LOUDSPEAKER Model RM602810 60°+28° X 10° LOUDSPEAKER Model RM284520 28°+45° X 20° LOUDSPEAKER Model RM286020 28°+60° X 20° LOUDSPEAKER Model RM356020 ...
Page 8 Specifications, Asymmetrical Versions Model RM352805 No EQ With EQ No EQ With EQ Sensitivity, Free Field (SPL / 1W @1 m) 94 dB 93 dB 110 dB 107 dB Calculated Maximum SPL @ 1 m, continuous 121 dB 120 dB 132 dB 129 dB Calculated Maximum SPL @ 1 m, peak 127 dB 126 dB 138 dB 135 dB Model RM452805 No EQ With EQ No EQ With EQ Sensitivity, Free Field (SPL / 1W @1 m) 94 dB 93 dB 109 dB 107 dB Calculated Maximum SPL @ 1 m, continuous 121 dB 120 dB 131 dB 129 dB Calculated Maximum SPL @ 1 m, peak 127 dB 126 dB ...
Page 9 With EQ No EQ With EQ Sensitivity, Free Field (SPL / 1W @1 m) 94 dB 93 dB 107 dB 100 dB Calculated Maximum SPL @ 1 m, continuous 121 dB 120 dB 129 dB 122 dB Calculated Maximum SPL @ 1 m, peak 127 dB 126 dB 135 dB 128 dB Transducers Low Frequency 2 x Bose LF10 ultra‐linear 10‐inch woofers (3‐inch voice coil) High Frequency 6 x Bose EMB2 extended midrange compression driver (2‐inch voice coil) Physical Enclosure Material Baltic Birch plywood, engineered plastics, and steel frame Finish two‐part spray polyurethane coating on plywood, black Grille 19‐gauge (1.0 mm) perforated steel, powder‐ coated finish, black Connectors 2 x Neutrik® NL4 wired parallel Suspension Attachment integrated side‐plate rigging hardware; optional array frame accessories ...
Page 10: Part List Notes
Specifications, Asymmetrical Versions Dimensions Model RM283505 16.9 x 39.1 x 23.6 in (428 x 993 x 598 mm) Model RM284505 16.9 x 39.1 x 23.6 in (428 x 993 x 598 mm) Model RM286005 16.9 x 39.1 x 23.6 in (428 x 993 x 598 mm) Model RM352805 16.9 x 39.1 x 23.6 in (428 x 993 x 598 mm) Model RM452805 16.9 x 39.1 x 23.6 in (428 x 993 x 598 mm) Model RM602805 16.9 x 39.1 x 23.6 in (428 x 993 x 598 mm) Model RM283510 17.9 x 39.1 x 23.6 in (455 x 993 x 598 mm) Model RM284510 17.9 x 39.1 x 23.6 in (455 x 993 x 598 mm) Model RM286010 17.9 x 39.1 x 23.6 in (455 x 993 x 598 mm) Model RM352810 17.9 x 39.1 x 23.6 in (455 x 993 x 598 mm) Model RM452810 17.9 x 39.1 x 23.6 in (455 x 993 x 598 mm) Model RM602810 17.9 x 39.1 x 23.6 in (455 x 993 x 598 mm) Model RM284520 20.0 x 39.1 x 23.6 in (509 x 993 x 598 mm) Model RM286020 20.0 x 39.1 x 23.6 in (509 x 993 x 598 mm) Model RM356020 20.0 x 39.1 x 23.6 in (509 x 993 x 598 mm) Model RM452820 20.0 x 39.1 x 23.6 in (509 x 993 x 598 mm) Model RM602820 20.0 x 39.1 x 23.6 in (509 x 993 x 598 mm) Model RM603520 20.0 x 39.1 x 23.6 in (509 x 993 x 598 mm) Model RM286040 ...
Page 11: Product Description
6 compression drivers and acoustically-equal spacing of diffraction slots across multiple modules. • Bose EMB-2 and LF10 Drivers – Patented new Bose transducers combine to deliver the vocal clarity of 3-way systems with the improved polar response typical of 2-way systems. Wiring ®...
Page 12: Rigging Accessories
RoomMatch ™ Loudspeaker Rigging Accessories RMAFLG - Large Array Frame (4-8 modules) RMAFSM - Small Array Frame (2 -4 modules) RMXLNG - Long Extender Bar RMXSRT - Short Extender Bar RMPULL - Pull Back Bar RMBRKT - Surface Mount Bracket Kit RMSFLY Side-Plate Rigging for RMS215 RMPINS - Quick Release Pins (set of 4) Also Available - RMSHAD - Gain Shading Kit...
Page 13: Array Module Loudspeakers (Refer To Figure 1)
PACKAGING PART LIST RoomMatch ® Array Module Loudspeakers (refer to Figure 1) Item Description Part Number Qty. Note Number CARTON, RSC, 41.75”x32.5”x28.19”, 350#DW, K 343482-0010 PACKING, TRAY, DC ASSY, 51ECT, 2.2#PE, 1.7#PE 343483-0010 PACKING, INSERT, DC ASSY, 200C, 4#PE, 1.7#PE 343484-0010 PACKING, FOAM,INSERT,1.2#PE,5 DEGREE 343485-0010...
Page 14: Main Part List, Roommatch Array Module Loudspeakers (Refer To Figure 2)
MAIN PART LIST RoomMatch ® Array Module Loudspeakers (refer to Figure 2) Item Description Part Number Qty. Note Number GRILLE, HORN, METAL, BLK, 5 DEGREE 345921-0510 GRILLE, HORN, METAL, BLK, 10 DEGREE 345921-1010 GRILLE, HORN, METAL, BLK, 20 DEGREE 345921-2010 GRILLE, HORN, METAL, BLK, 40 DEGREE 345921-4011 GRILLE, HORN, METAL, BLK, 60 DEGREE...
Page 15 ® Figure 2. RoomMatch Array Module Loudspeakers Exploded View...
Page 16: Disassembly Procedures
DISASSEMBLY PROCEDURES Note: Refer to Figure 2 for the following 6. Input / Output PCB Assembly Removal procedures. 6.1 Perform procedure 5. 1. Horn Grille Removal 6.2 Unplug the wiring harness that runs from 1.1 Remove the six screws (16) that secure the PCB to the Neutrik connectors.
Page 17: Test Procedures
TEST PROCEDURES 1. Driver DC Resistance Test the DC resistance of each driver at the points shown in the diagram below. Note: This test will verify that the voice coils Note: The HF-1 to HF-6 drivers are the for the tested drivers are in the correct DC compression drivers, and are numbered resistance range.
Page 18 TEST PROCEDURES 2. Woofer Phase Test 4. System High Frequency Sweep Test 2.1 Momentarily apply a positive 5 volt DC CAUTION: Hearing protection is required to level to the 1+ and 1- terminals of one of the prevent potential hearing loss duing this test. Neutrik NL4 connectors.
Page 19: Connector Wiring
Connector Wiring ® ® The RoomMatch array module is equipped with two (2) Neutrik NL4 connectors wired in parallel to allow loop-through connection to an additional module. The connector is wired to provide separate amplifier channels to the high-frequency (HF) and low-frequency (LF) transduc- ers as follows: NL4 Connector Pin Driver Bandpass Section...
Page 20: Service Manual Revision History
SERVICE MANUAL REVISION HISTORY Date Revision Description of Change Change Driven Pages Level Affected 8/11 Document released at revision 00. Service manual release 7/12 - New product versions added. New product 3 – 6 - Packaging part number changes. versions and part - Install guide part number change.
Page 21 SPECIFICATIONS AND FEATURES SUBJECT TO CHANGE WITHOUT NOTICE Bose Corporation The Mountain Framingham Massachusetts USA 01701 P/N: 343929-SM Rev. 02; 9/2013 (P) http://serviceops.bose.com...
