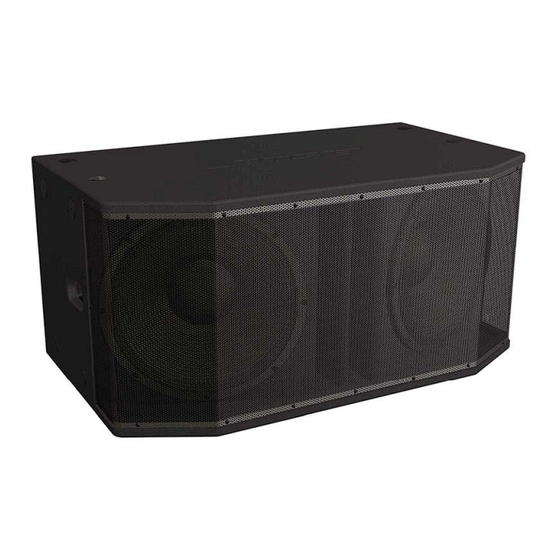

- Page 1 RoomMatch RMS215 Array Subwoofer Loudspeaker Service Manual ©2011 Bose Corporation Reference Number 330034-SM Rev. 00...
-
Page 2: Table Of Contents
Figure 3. RoomMatch Bass Loudspeaker Disassembly View ............7 Test Procedures ..........................8 Accessories Used With the RoomMatch RMS215 Bass Loudspeaker ........8 Figure 4. RoomMatch RMS215 Input / Output Panel Exploded View and Wiring Diagram ....9 Service Manual Revision History ....................10 ®... -
Page 3: Specifications
SPECIFICATIONS MECHANICAL External dimensions, single speaker: Single Speaker: 18"H x 37.5"W x 22"D Packed System: 20"H x 39.5W x 24"D Volume of Packed System: 16 cubic feet System weight, unpackaged single speaker: 132 lbs ELECTRICAL Driver Complement: Two 15 inch woofer drivers Sensitivity (dB SPL, 1Watt at 1 meter): 96 +/- 1 dB-SPL @ 1W/1m Maximum Sound Pressure Level –... -
Page 4: Product Description
PRODUCT DESCRIPTION The RoomMatch RMS215 bass module allows Bose ® to provide quality sound in venues where one or more of the following parameters prevent the use of our other engineered sound prod- ucts: (1) Speaker-to-listener distance (2) Room reverberation time, (3) Ambient noise, and (4) SPL requirement. -
Page 5: Packing List, Roommatch
PACKING LIST RoomMatch RMS215 Bass Loudspeaker (see Figure 1) Item Description Part Number Note Number Carton, RMS215 Bass Module 343896-0010 Packing, Corner Pad, RMS215 343899-0010 Packing, Poly Bag 343900-0010 Packing, Top Pad 343898-0010 Safety Card 346081-0010 Staging Handle, RoomMatch System 325186-0110 AU/NZ WARR SLIP SHEET 8.5 X 5.5 355731-0010... -
Page 6: Main Part List, Roommatch Bass Loudspeaker (See Figure 2)
MAIN PART LIST RoomMatch Bass Loudspeaker (see Figure 2) Item Description Part Number Note Number Screw, M4x15mm, P2 Pan Head, Wood, Stainless Steel, Black Zinc (included with grille kit, item 2) Grille Kit (includes screws, item 1) 330035-011S Gasket, Grille (adhered to cabinet) Woofer, SVC, 15 inch, B&C, 15TBX100 330023-001S Enclosure, RMS215, Black... -
Page 7: Disassembly Procedures
DISASSEMBLY PROCEDURES Note: Refer to Figure 3 below for the follow- 2. Woofer Removal ing procedures. 2.1 Perform procedure 1. 1. Grille Removal 2.2 Remove the eight screws (10) that 1.1 Remove the twenty-nine screws (1) that secure the woofer (4) to the cabinet. Lift out secure the grille assembly (2) to the cabinet. -
Page 8: Test Procedures
TEST PROCEDURES Equipment Required: 3. Frequency Power Sweep Test • Audio signal generator • Amplifier 3.1 Apply audio sine wave signal of 35Hz, • DC Power supply 20VRMS +/- 1VRMS to pins 1+ and 1- and 2+ and 2- of the NL4 input connector. 1. - Page 9 Figure 4. RoomMatch RMS215 Input/Output Panel Exploded View and Wiring Diagram...
-
Page 10: Service Manual Revision History
SERVICE MANUAL REVISION HISTORY Date Revision Description of Change Change Driven Pages Level Affected 5/11 Document released at revision 00. Service manual initial release... - Page 11 SPECIFICATIONS AND FEATURES SUBJECT TO CHANGE WITHOUT NOTICE Bose Corporation The Mountain Framingham Massachusetts USA 01701 Reference Number 330034-SM Rev. 00; 5/2011 (P) http://serviceops.bose.com...
